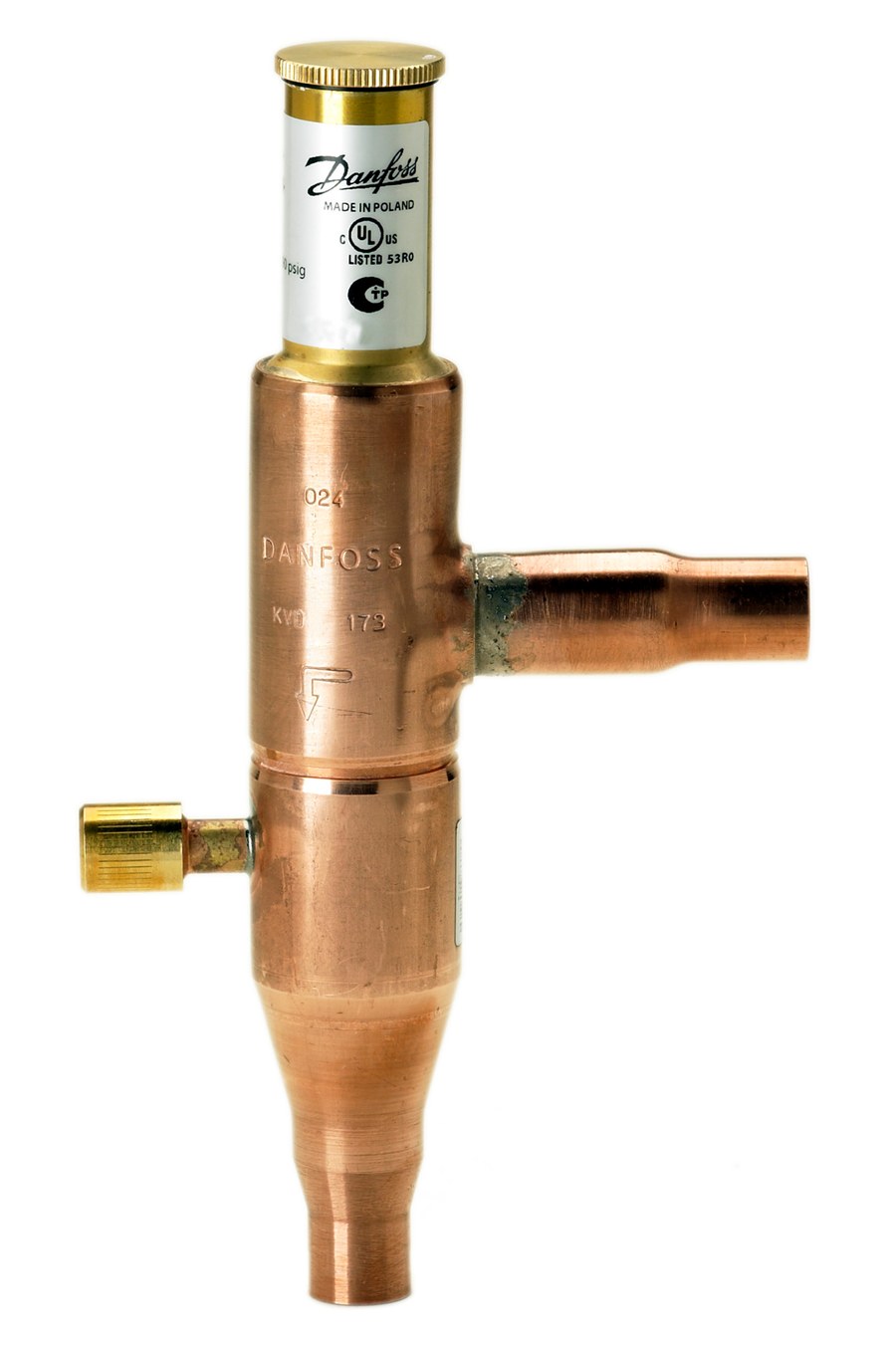

Danfoss KVD 12 receiver pressure controller — 12 mm ODF solder solder, 3 – 20 bar, code

Danfoss KVD 12 receiver pressure controller (code 034L0176) from the Danfoss KVD range of mechanical, self-acting pressure regulating valves for commercial and light-industrial refrigeration. The KVD is a modulating receiver pressure controller installed in the hot-gas bypass to the receiver. It opens on falling receiver pressure and bypasses hot gas to the receiver to maintain a constant minimum receiver pressure, ensuring a sufficient liquid pressure to the expansion valves during low ambient operation. It works together with the KVR condensing pressure controller. This SKU has 12 mm ODF solder ODF solder connections (inlet and outlet), a regulating range of 3 – 20 bar (44 – 290 psig) and a maximum working pressure of 28 bar (406 psig); media temperature range -45 to 130 C (-49 to 266 F). Compact angle-design valve with hermetic brazed construction and a stainless-steel bellows; the setpoint is adjustable on the top spindle under a sealing cap and a 1/4 in Schrader valve is provided for pressure testing. Suitable for HFC/HFO refrigerants and hydrocarbons (incl. R290, R600a, R1270). UL listed (C UL US), EAC and RoHS. Price on quote.

Type

Receiver pressure controller, KVD 12 Code number: 034L0176 Series: Danfoss KVD mechanical pressure regulating valve Function: Receiver pressure regulation, modulating Connection: 12 mm ODF solder ODF solder, inlet and outlet Connection type: Solder, ODF Regulating range: 3 – 20 bar (44 – 290 psig) Max. working pressure (PB/MWP): 28 bar (406 psig) Media temperature range: -45 to 130 C (-49 to 266 F) Body design: Compact angle design, hermetic brazed construction, stainless-steel bellows Pressure test port: 1/4 in Schrader valve Applicable refrigerants: R1234yf, R1234ze(E), R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R448A, R449A, R449B, R450A, R452A, R454A, R454C, R455A, R507A, R513A, R515B, R516A, R1270, R290, R600, R600a Conformity assessment: PED category Art. 4, par. 3 (sound engineering practice) Approvals: UL (C UL US Listed), EAC, RoHS, RoHS China Net weight: 0.355 kg Gross weight: 0.404 kg EAN: 5702428411288 Product group: Press. and temp. regul. valves Approval: C UL US LISTED Approval file name: REFRIGERANT VALVE 53R0 China RoHS compliance: Yes Cv value [gal/min]: 2.02 gal/min Equipment: Schrader valve access port EU RoHS compliance: Yes with exemptions EU RoHS exemption clause: 6(c) Factory setting [bar]: 10 bar Factory setting [psig]: 145 psig Flow direction indicator: Engraved 1-way arrow Inlet connection type: Solder, ODF Inlet size [mm]: 12 mm Kv value [m³/h]: 1.75 m³/h Lubricants compatibility: Oilfree applications Max. test pressure [bar]: 31 bar Max. test pressure [psig]: 450 psig Max. Working Pressure [bar]: 28 bar Max. Working Pressure [psig]: 406 psig Medium temperature range [°C] [max]: 130 °C Medium temperature range [°C] [min]: -45 °C Medium temperature range [°F] [max]: 266 °F Medium temperature range [°F] [min]: -49 °F Oil free refrigerants: R1234ze(E) Other RoHS documentation: EAEU RoHS Outlet connection type: Solder, ODF Outlet size [mm]: 12 mm REACH Candidate List substances: Lead (CAS no. 7439-92-1) Refrigerants: R1234yf Regulation range [bar] [max]: 20 bar Regulation range [bar] [min]: 3 bar Regulation range [psig] Pe [max]: 290 psig Regulation range [psig] Pe [min]: 44 psig UL approved refrigerants: R134a UL mark: Yes

Standard

Danfoss KVD

Size / Series

12 mm

Material

Steel body, stainless steel bellows; copper ODF connection stubs

Pressure Rating

28 bar (406 psig)

Temperature Range

-45 to 130 C (-49 to 266 F)

HS Code

8481.10
