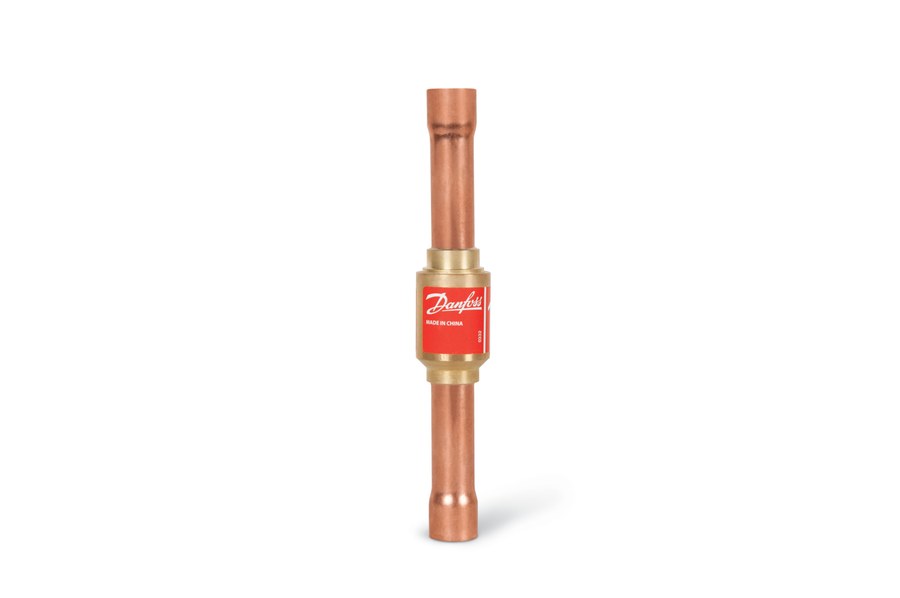

Danfoss NRD 6s differential pressure valve — 1/4 in ODF solder, 1.4 bar opening, 49 bar, code 020B1200
Danfoss · HVAC & Refrigeration · Check Valves
Danfoss NRD 6s differential (opening) pressure valve, code 020B1200 — a spring-loaded non-return valve with a defined 1.4 bar opening pressure from the Danfoss NRD range for commercial A/C and refrigeration. The NRD is fitted together with a condensing pressure regulator (KVR) and/or a receiver pressure regulator (KVD): it holds a minimum pressure difference of about 1.4 bar across the KVR so that condensing-pressure control remains effective at low ambient temperature, while also acting as a check valve that prevents reverse (backward) flow. This SKU has 1/4 in ODF solder (inlet and outlet) connections; maximum working pressure 49 bar (710 psig); media temperature range -50 to 155 C (-58 to 311 F). Suitable for HCFC/HFC/HFO and hydrocarbon refrigerants. UL listed (C UL US) and EAC. Price on quote.
Specifications
- Part number
- 020B1200
- HS code
- 8481.30
- Material
- Connection tube copper; solder ring brass; sealing disk brass; piston stainless steel; spring brass; valve body stainless steel; guide brass; PTFE/glass-fibre washer
- Pressure rating
- 49 bar (710 psig) max working pressure
- Temperature range
- -50 to 155 C (-58 to 311 F)
- Standard
- NRD 6s
- Standard size
- 6s (1/4 in)
Compatibility
The NRD is selected by body size (NRD 6s / 12s / 19s) and connection. NRD 6s is the smallest size, 1/4 in ODF solder. Installed with a Danfoss KVR/KVD for condensing-pressure control at low ambient.
Approvals
