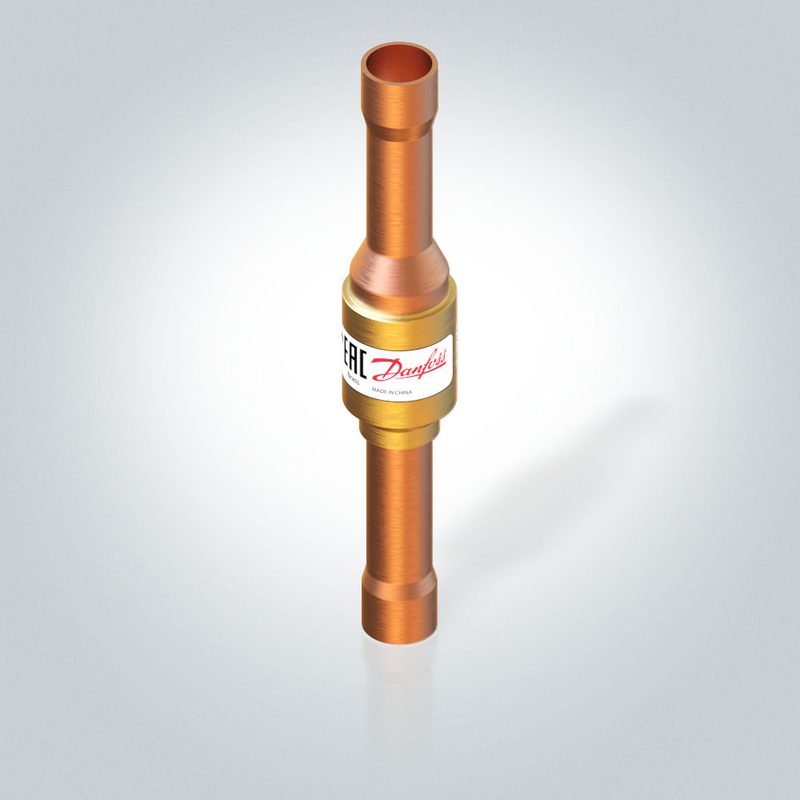

Danfoss NRV 12s check valve — 1/2 in ODM x ODF solder, straightway, 49 bar, code 020B1184
Danfoss · HVAC & Refrigeration · Check Valves
Danfoss NRV 12s check (non-return) valve, code 020B1184 — a spring-loaded straightway check valve from the Danfoss NRV range for commercial A/C and refrigeration, preventing reverse refrigerant flow. This SKU has a mixed solder connection: 1/2 in ODM (male) solder inlet and 1/2 in ODF (female) solder outlet. Minimum opening pressure 0.02 bar; maximum working pressure 49 bar (710 psig); media temperature range -50 to 155 C (-58 to 311 F). Suitable for HCFC/HFC/HFO and hydrocarbon refrigerants. UL listed (C UL US) and EAC. Price on quote.
Specifications
- Part number
- 020B1184
- HS code
- 8481.30
- Material
- Connection tube copper; solder ring brass; sealing disk brass; piston stainless steel; spring brass; valve body stainless steel; guide brass; PTFE/glass-fibre washer
- Pressure rating
- 49 bar (710 psig) max working pressure
- Temperature range
- -50 to 155 C (-58 to 311 F)
- Standard
- NRV 12s
- Standard size
- 12s (1/2 in)
Compatibility
Distinct from the all-female ODF straightway NRV 12s (020B1012): 020B1184 has one male (ODM) and one female (ODF) solder end. Select an NRV by size, connection type and connection configuration.
Approvals
