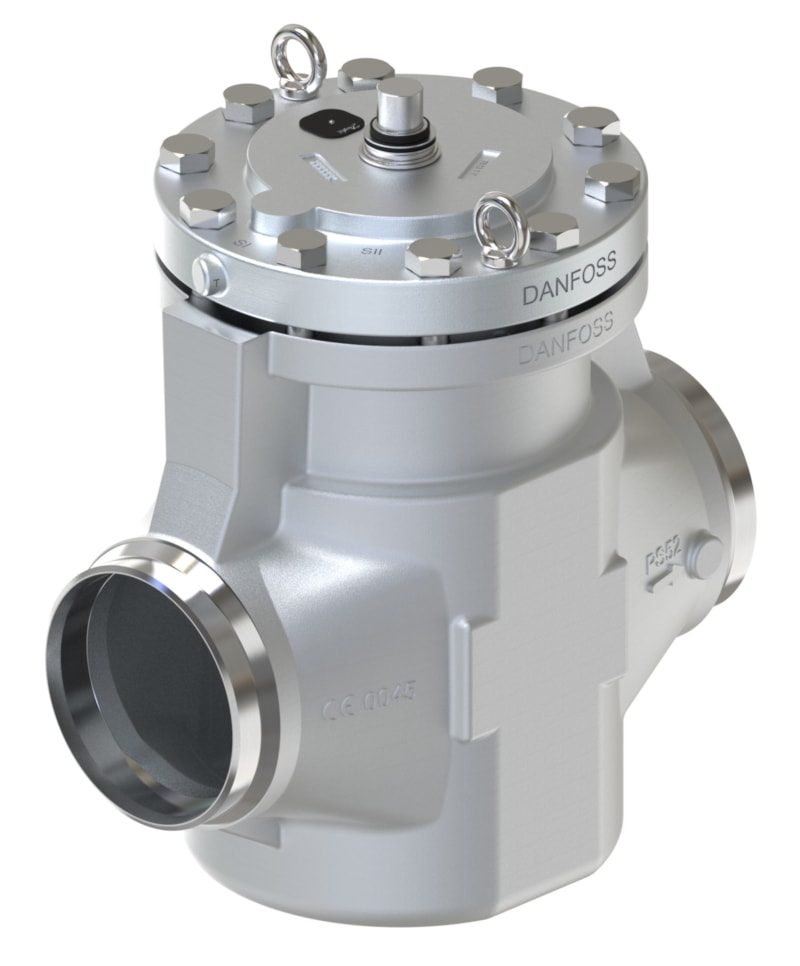

Danfoss ICM 125 motor-operated valve, butt weld, 125 mm (5 in)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICM 125 motor-operated control valve (code 027H7150), steel, with butt weld connections, port size 125 mm (5 in). Kv 223 m3/h, maximum working pressure 52 bar; media temperature -60 to +120 C. Driven by an ICAD electric actuator with magnet coupling for modulating control of pressure, temperature, level and flow in industrial refrigeration; actuator ordered separately. Suitable for a broad range of refrigerants including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICM 125 motor-operated valve
- Code number
- 027H7150
- Port size
- 125 mm (5 in)
- Kv value
- 223 m3/h
- Cv value
- 260 gal/min
- Inlet/outlet connection
- Butt weld, steel
- Body material
- Steel
- Surface coating
- Zn (zinc)
- Actuator
- ICAD motor with magnet coupling (ordered separately)
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Net weight
- 72.83 kg; gross weight: 85 kg
- Flow direction
- straightway
- Refrigerants
- R717 (ammonia), R744 (CO2), R134a, R404A, R407C, R410A, R290 and others
- Approvals
- CE 0045, EAC, TUV, UL
- REACH Candidate List
- no substances listed
- EU RoHS / China RoHS
- compliant
- EAN
- 5702428229685
- Product group
- Press. and temp. regul. valves
- Actuator system
- ICAD motor, magnet coupling
- Approval
- CE 0045
- China RoHS compliance
- Yes
- Comments
- ICV 125 125 DIN
- Connection Code
- (2001:D40:125)
- Connection material
- Steel
- Connection standard
- EN 10220
- Cv value [gal/min]
- 260 gal/min
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 5 in
- Inlet connection size [mm]
- 125 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 223 m³/h
- Lubricants compatibility
- Oilfree applications
- Manual operation option
- Via ICAD setting
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- MaxOPD [bar]
- 20 bar
- MaxOPD [psig]
- 271 psig
- Oil free refrigerants
- R1234ze(E)
- Open/close time [s]
- 35 s
- Outlet connection size [in]
- 5 in
- Outlet connection size [mm]
- 125 mm
- Outlet connection type
- Butt weld
- PED category
- III
- REACH Candidate List substances
- No
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- Valve operation
- Motor operated
- Valve version
- Standard version
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
Motor-operated modulating valve for industrial refrigeration; driven by an ICAD electric actuator (ordered separately). Butt weld connection, Kv 223 m3/h. Verify refrigerant compatibility and required Kv against your duty before ordering.
