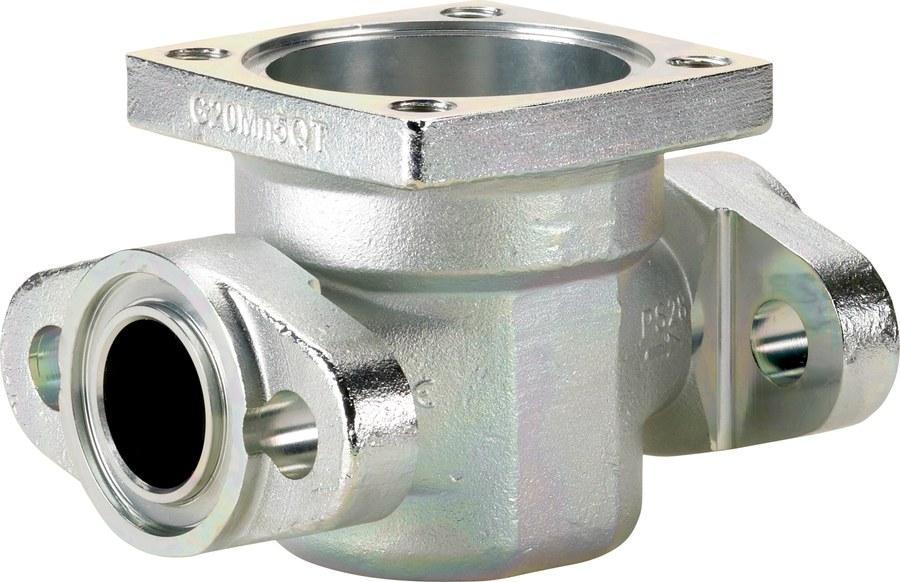

Danfoss ICV 32 multifunction valve body, flange (A4A)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICV 32 multifunction valve body, A4A flange. Danfoss code number 027H3130. Steel valve housing used as the body for ICLX 32, ICM 32 and ICS 32 function modules in industrial refrigeration. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Brand
- Danfoss
- Type
- ICV 32 multifunction valve body, flange (A4A)
- Code number
- 027H3130
- Connection
- flange (A4A)
- Connection size
- 32 mm
- Body material
- steel
- Used for
- ICLX 32, ICM 32 and ICS 32 function modules
- Max. working pressure
- 52 bar (754 psig)
- Temperature range
- -60 to 120 °C (-76 to 248 °F)
- EAN
- 5702428898768
- Net weight
- 4.951 kg; gross weight: 8.038 kg
- Refrigerant compatibility
- R134a, R22, R404A, R410A, R717, R744, R1234ze(E), R507A and others
- REACH Candidate List
- no substances listed
- EU RoHS / China RoHS
- compliant
- Approvals
- EAC
- Product group
- Multifunction valves
- Approval
- EAC
- China RoHS compliance
- Yes
- Connection material
- Steel
- Connection standard
- CUST. SPEC.
- Connection type
- Flange
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Further information
- PM retrofit, A4A flanges
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- ICLX 32
- Valve operation
- Function module
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 52 bar (754 psig)
- Temperature Range
- -60 to 120 °C
- Classification / Approval
- EAC
- HS Code
- 8481.80
Compatibility & Fitment
Body for the ICLX 32, ICM 32 and ICS 32 function module. Pair with the matching function module/actuator. Confirm port size and refrigerant against the system spec.
