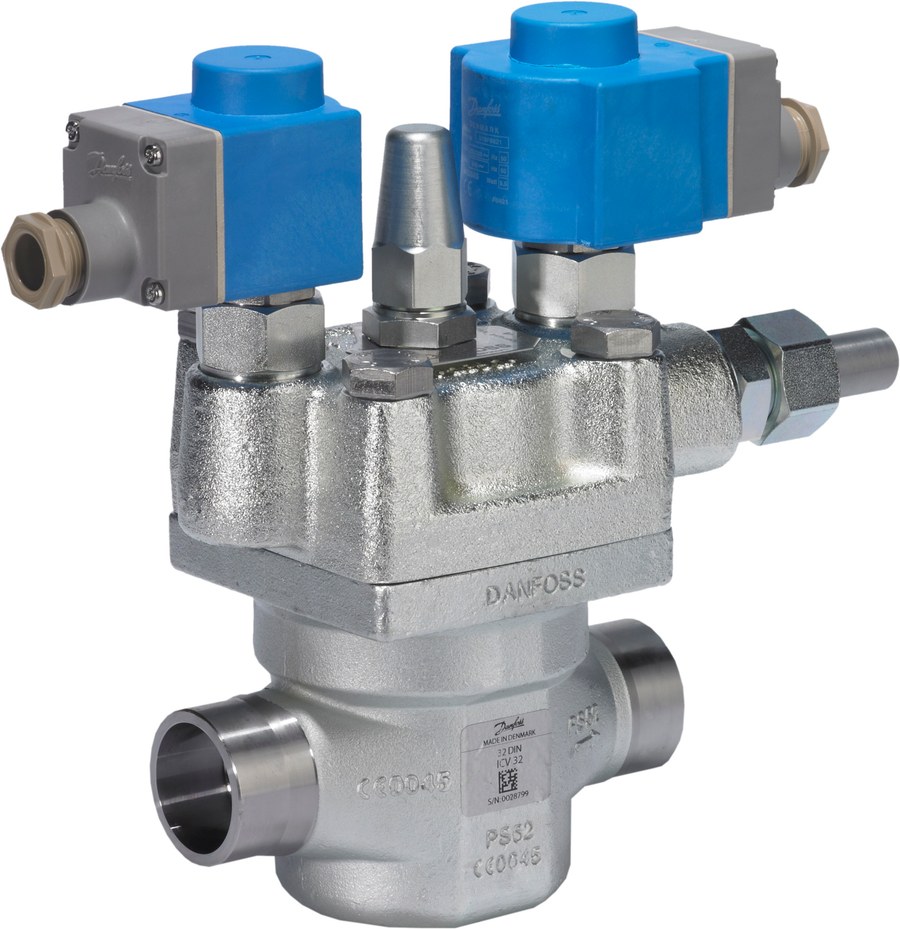

Danfoss ICLX 40 two-step solenoid valve, butt weld, 40 mm (1 1/2 in)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICLX 40 two-step (pilot-operated) solenoid valve (code 027H4041), steel, with butt weld connections, port size 40 mm (1 1/2 in). Kv 29 m3/h, maximum working pressure 65 bar (943 psig); media temperature -60 to +120 C. Two-step opening for high differential-pressure duties such as hot-gas defrost in industrial refrigeration; coils ordered separately. Suitable for a range of refrigerants including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICLX 40 two-step solenoid valve
- Code number
- 027H4041
- Port size
- 40 mm (1 1/2 in)
- Kv value
- 29 m3/h
- Inlet/outlet connection
- Butt weld, steel
- Body material
- Steel
- Valve operation
- Solenoid operated, two-step (pilot-operated)
- Coils
- ordered separately (not included)
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Net weight
- 6.475 kg; gross weight: 9.798 kg
- Refrigerants
- R717 (ammonia), R744 (CO2), R134a, R404A, R407C, R410A, R290 and others
- Approvals
- EAC, TUV, UL
- REACH Candidate List
- Lead (CAS no. 7439-92-1)
- EU RoHS / China RoHS
- compliant with exemptions (EU 6(a), 6(b); China 7.1, 7.2)
- EAN
- 5702428483049
- Product group
- Solenoid valves
- Actuator system
- 2 EVM pilot sol valve module
- Approval
- EAC
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection Code
- (2002:S80:40)
- Connection material
- Steel
- Connection standard
- ASME B 36.10M SCHEDULE 80
- Cv value [gal/min]
- 33.64 gal/min
- Description
- 2-step solenoid valve
- Direction
- Straightway
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Ext pilot pressure connection
- Weld nipple (P2 Port)
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1 1/2 in
- Inlet connection size [mm]
- 40 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 29 m³/h
- Manual operation option
- Manual open spindle
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Opening configuration
- 1-step (optional setting)
- Outlet connection size [in]
- 1 1/2 in
- Outlet connection size [mm]
- 40 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Step 1 opening degree (~) [%]
- 10 %
- Step 2 initialization
- Delta p < 1.25 bar (18 psig)
- Surface coating
- Zn (TLP)
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- Valve version
- Standard version
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
Two-step solenoid valve for high differential-pressure duties (e.g. hot-gas defrost) in industrial refrigeration. Coils ordered separately. Butt weld connection, Kv 29 m3/h. Verify refrigerant compatibility and required Kv against your duty before ordering.
