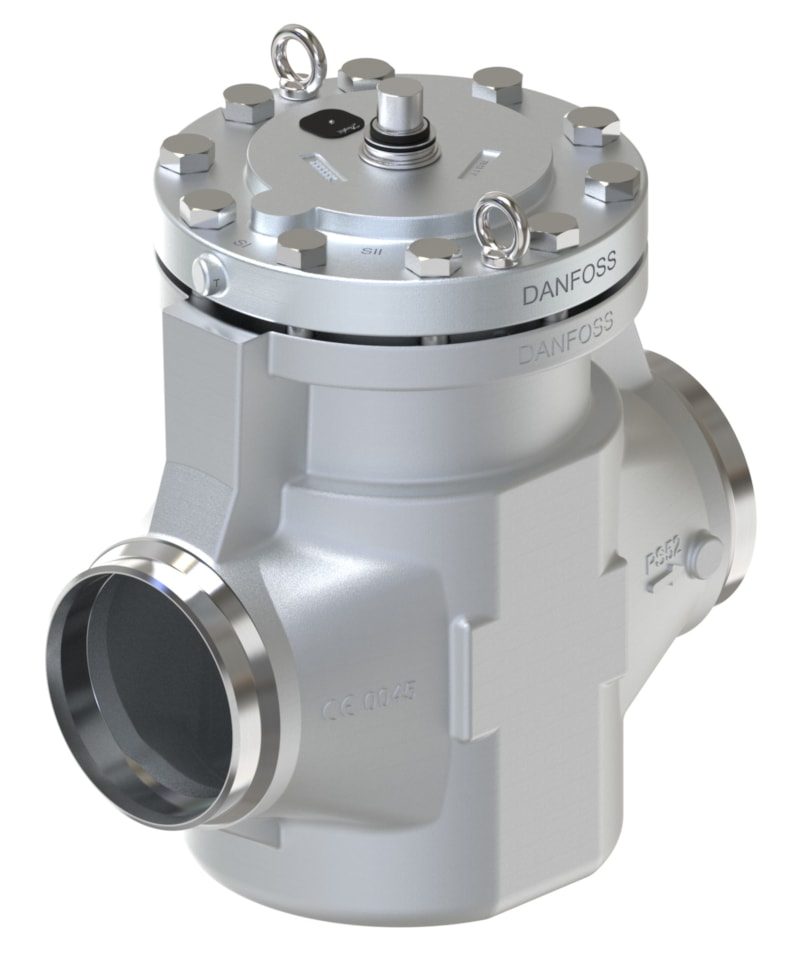

Danfoss ICM 150 motor-operated valve, butt weld, 150 mm (6 in)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICM 150 motor-operated control valve (code 027H7171), steel, with butt weld connections, port size 150 mm (6 in). Kv 370 m3/h, maximum working pressure 52 bar; media temperature -60 to +120 C. Driven by an ICAD electric actuator with magnet coupling for modulating control of pressure, temperature, level and flow in industrial refrigeration; actuator ordered separately. Open/close time 45 s. Suitable for a broad range of refrigerants including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICM 150 motor-operated valve
- Code number
- 027H7171
- Port size
- 150 mm (6 in)
- Kv value
- 370 m3/h
- Inlet/outlet connection
- Butt weld, steel
- Connection standard
- ASME B 36.10M Schedule 40
- Body material
- Steel
- Surface coating
- Zn (TLP)
- Actuator
- ICAD motor with magnet coupling (ordered separately)
- Open/close time
- 45 s
- PED category
- III
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Net weight
- 126.8 kg; gross weight: 126.8 kg
- Flow direction
- straightway
- Refrigerants
- R717 (ammonia), R744 (CO2), R134a, R404A, R407C, R410A, R290 and others
- Approvals
- CE 0045, EAC, TUV, UL
- REACH Candidate List
- no substances listed
- EU RoHS / China RoHS
- compliant
- EAN
- 5702428229609
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
Motor-operated modulating valve for industrial refrigeration; driven by an ICAD electric actuator (ordered separately). Butt weld connection, Kv 370 m3/h. Verify refrigerant compatibility and required Kv against your duty before ordering.
