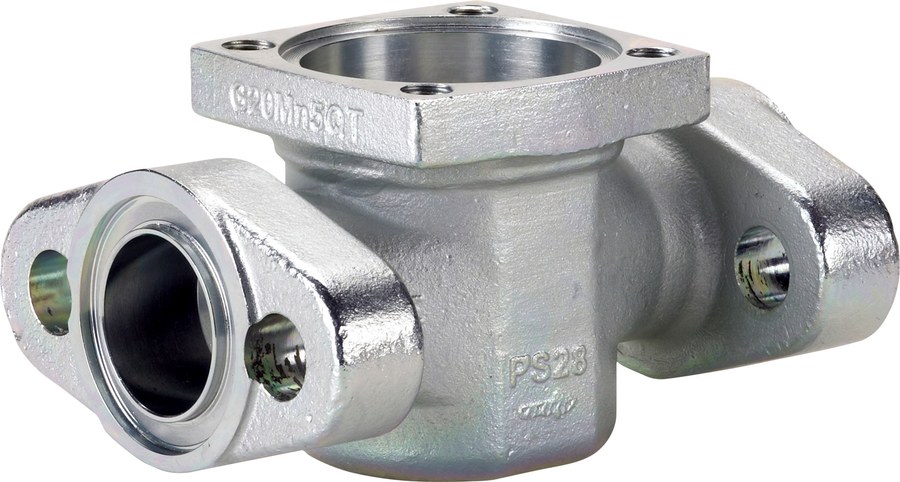

Danfoss ICV 25 multifunction valve body, flange (HA4A)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICV 25 multifunction valve body, HA4A flange. Danfoss code number 027H2304. Steel valve housing used as the body for ICM 25 and ICS 25 function modules in industrial refrigeration. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Brand
- Danfoss
- Type
- ICV 25 multifunction valve body, flange (HA4A)
- Code number
- 027H2304
- Connection
- flange (HA4A)
- Connection size
- 25 mm
- Body material
- steel
- Used for
- ICM 25 and ICS 25 function modules
- Max. working pressure
- 52 bar (754 psig)
- Temperature range
- -60 to 120 °C (-76 to 248 °F)
- EAN
- 5702428898775
- Net weight
- 3 kg; gross weight: 4.52 kg
- Refrigerant compatibility
- R134a, R22, R404A, R410A, R717, R744, R1234ze(E), R507A and others
- EU RoHS / China RoHS
- compliant
- Approvals
- EAC
- Product group
- Multifunction valves
- Approval
- EAC
- China RoHS compliance
- Yes
- Connection material
- Steel
- Connection standard
- CUST. SPEC.
- Connection type
- Flange
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- ICM 25
- Valve operation
- Function module
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 52 bar (754 psig)
- Temperature Range
- -60 to 120 °C
- Classification / Approval
- EAC
- HS Code
- 8481.80
Compatibility & Fitment
Body for the ICM 25 and ICS 25 function module. Pair with the matching function module/actuator. Confirm port size and refrigerant against the system spec.
