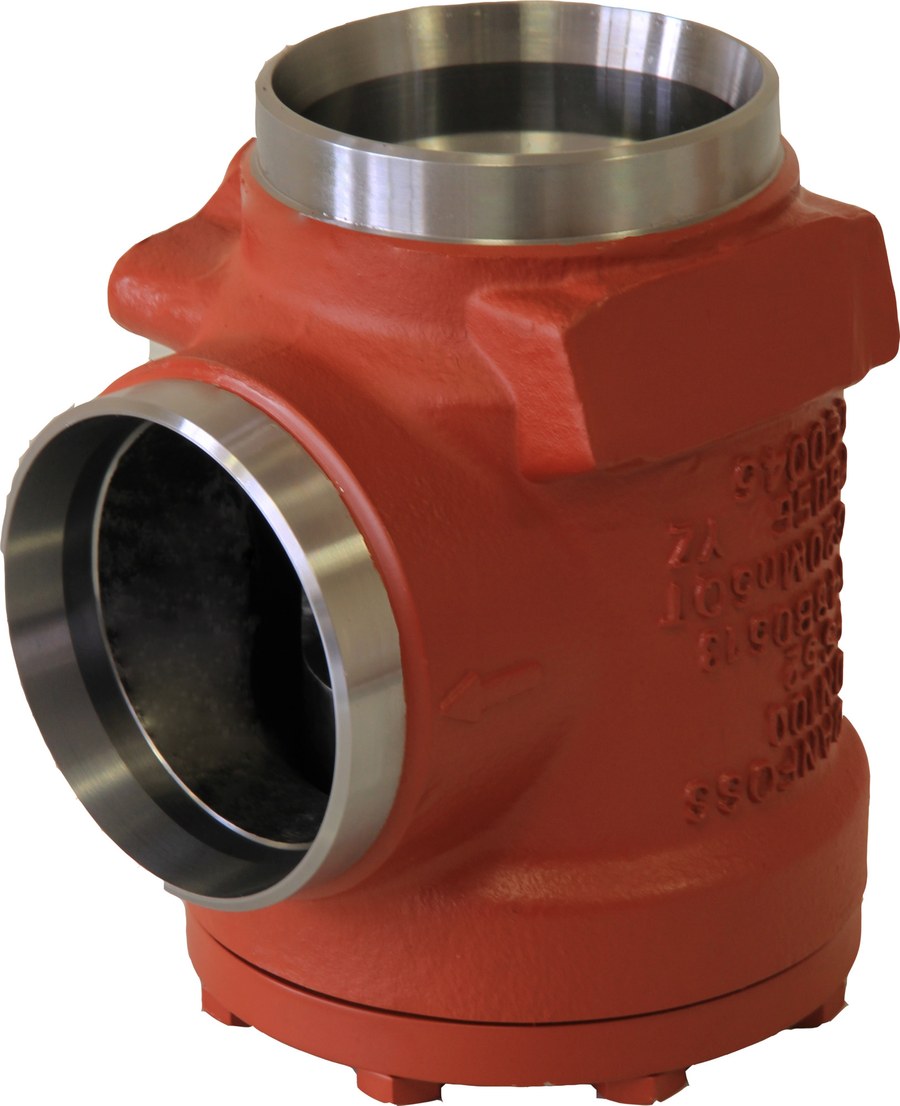

Danfoss FIA 150 angleway strainer housing, 150 mm (6 in) butt weld EN 10220, steel, 52 bar (code 148B6202)
Danfoss · HVAC & Refrigeration · Filters & Driers
Danfoss FIA 150 angleway strainer housing for industrial refrigeration, code 148B6202. Steel body with butt weld connections to EN 10220, nominal size 150 mm (6 in), used to protect valves, pumps and compressors from pipe-scale and debris. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient with standard mu150 plain insert Kv 362.1 m3/h (Cv 418.6 gal/min); higher Kv with mu250/mu500 and pleated inserts. Filter insert ordered separately. Part of the Danfoss SVL Flexline programme; for R717 (ammonia), R744 (CO2) and fluorinated refrigerants.
Specifications
- Part number
- 148B6202
- HS code
- 8421.39
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- EN 10220
- Standard size
- 150 mm
Compatibility
Danfoss SVL Flexline FIA 150 strainer housing. Select by direction (angleway) and connection standard (EN 10220); order the filter insert (mu150 / mu250 / mu500, plain or pleated) separately. Shares the SVL Flexline platform with SVA-S/SVA-L, SCA-X/CHV-X and REG valves of the same nominal size.
Approvals
