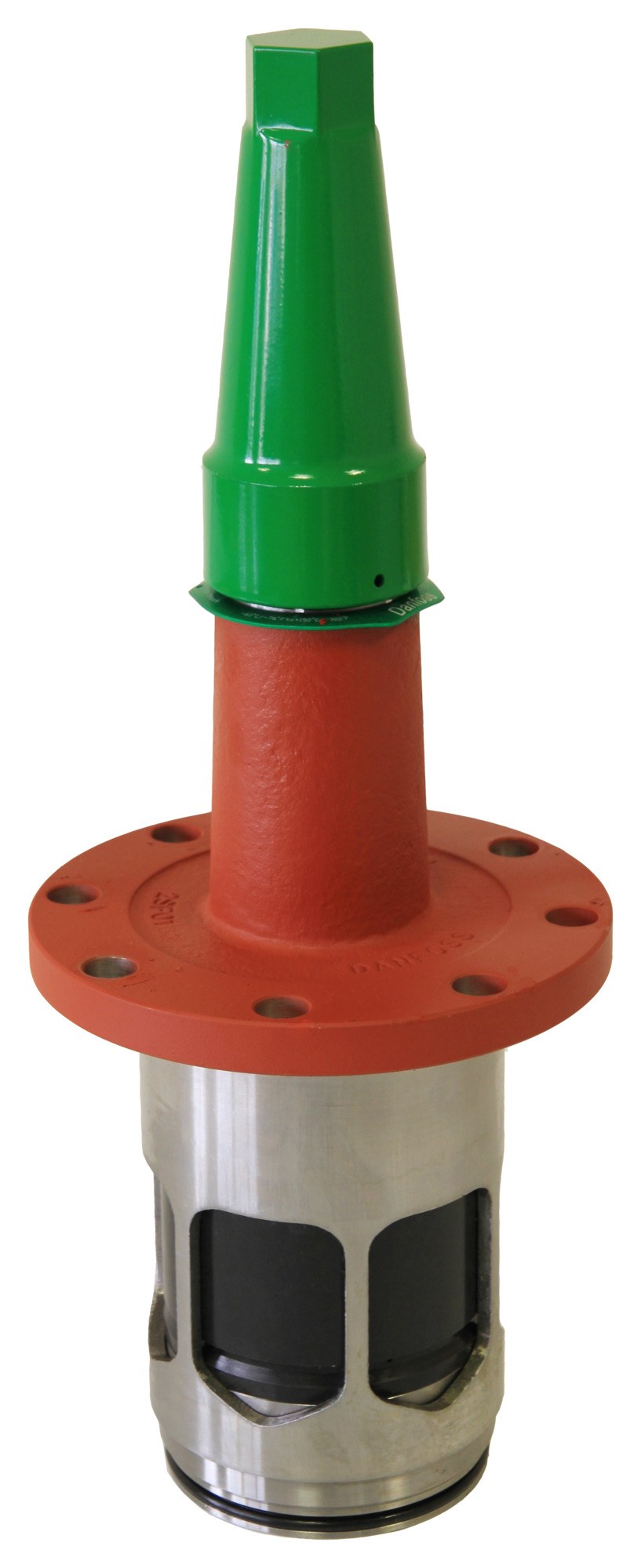

Danfoss SCA-X 125 function module (complete top part), fits 125 mm (5 in) SCA-X stop / check valve, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SCA-X 125 function module (complete top part) for the SVL Flexline SCA-X stop/check valve range, code 148B6118. The function module is the complete field-serviceable operating top part — bonnet, spindle, renewable seat and cone with integral check function, gaskets and bolts — that mounts onto the matching 125 mm (5 in) SCA-X valve housing to make up or repair a complete stop/check valve. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) industrial refrigeration systems.
Technical Specifications
- Type
- Function module (complete top part) for SCA-X 125 stop / check valve
- Code number
- 148B6118
- Series
- SCA-X (SVL Flexline)
- Type designation
- Top Complete (complete top part)
- Fits valve size
- 125 mm (5 in)
- Function
- Stop / check (combined shut-off and non-return)
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Product group
- Stop and check valves
- Approvals
- CE
- Compliance
- EU RoHS, China RoHS
- Net weight
- 16.1 kg
- EAN
- 5702428486293
- Approval
- CE
- China RoHS compliance
- Yes
- Equipment
- Cap
- EU RoHS compliance
- Yes
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- REACH Candidate List substances
- No
- Refrigerants
- R134a
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- SCA-X 125
Standards & Compliance
- Size / Series
- 125 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline function module (complete top part). This code is the top part for the 125 mm (5 in) SCA-X stop/check valve. Order to repair or rebuild an existing 125 mm SCA-X housing, or together with the matching housing to make up a complete valve. Confirm the valve nominal size (125 mm / 5 in) before ordering.
