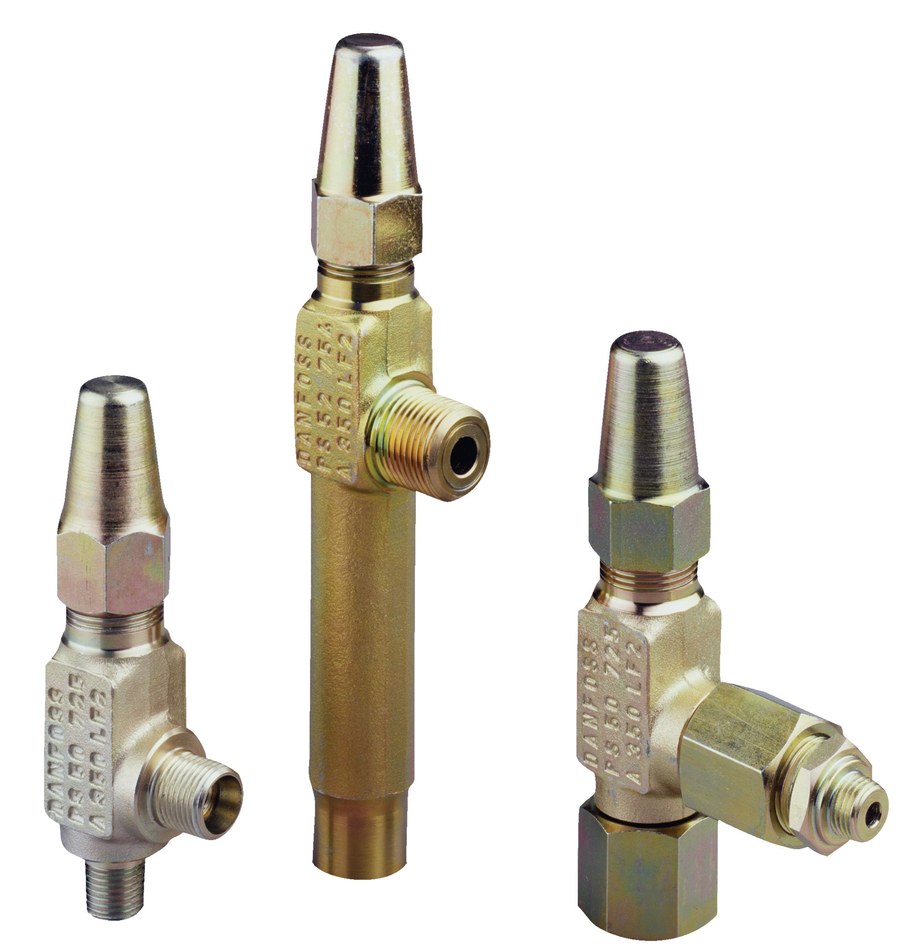

Danfoss SNV-ST gauge valve, NPT 1/4 in inlet x 10 mm cutting-ring (compression) outlet, low-temperature steel (code 148B3741)
Danfoss · HVAC & Refrigeration · Needle Valves
Danfoss SNV-ST gauge valve (a stop needle valve configured for pressure-gauge connection, with a 10 mm cutting-ring outlet to take the gauge tube) for industrial-refrigeration service, code 148B3741. The SNV series is a hand-operated stop/needle service valve with a sturdy back-seating (metal-to-metal) spindle; it needs no specific flow direction (bi-flow) and gives favourable, throttleable flow characteristics. This SKU has NPT 1/4 in inlet x 10 mm cutting-ring (compression) outlet connections. Housing and bonnet are low-temperature steel, built to the Pressure Equipment Directive. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Applicable to HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2). Specifications per Danfoss store code 148B3741.
Specifications
- Part number
- 148B3741
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 1/4 in
- Thread standard
- ANSI/ASME B1.20.1 (NPT) / DIN 3861
Compatibility
Danfoss SNV stop/gauge needle valve. Select by connection type and size (here NPT 1/4 in inlet x 10 mm cutting-ring outlet) and by housing material — SNV-ST is low-temperature steel (52 bar / -60..150 C) and SNV-SS is stainless steel (65 bar / -60..200 C) for corrosive or higher-duty service. Each connection combination is a separate order code; confirm port type and size before ordering. Compatible with HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) refrigeration systems.
Approvals
