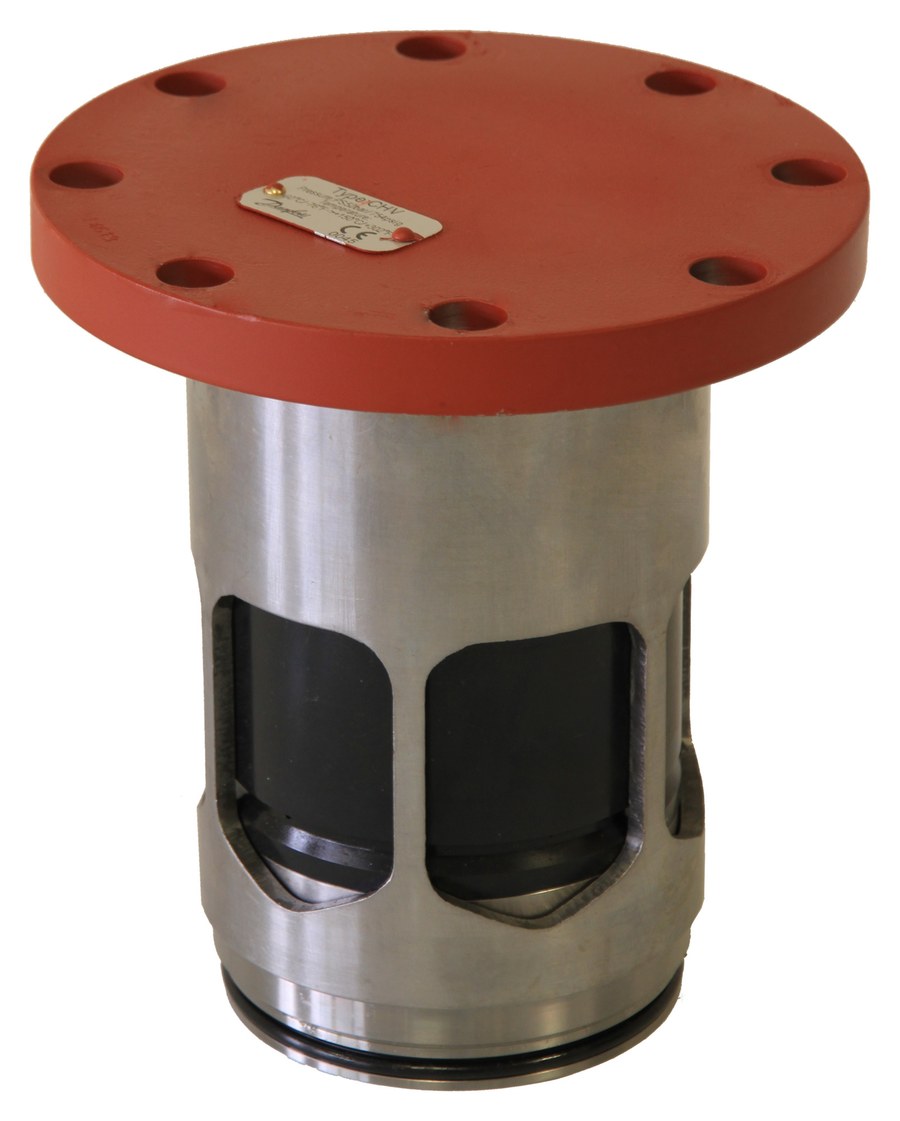

Danfoss CHV-X 125 function module (complete top part), fits 125 mm (5 in) CHV-X check valve, 52 bar (code 148B6119)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss CHV-X 125 function module (complete top part) for the SVL Flexline CHV-X check (non-return) valve range, code 148B6119. The function module is the complete field-serviceable operating top part — guide, spring, renewable seat and cone, gaskets and bolts — that mounts onto the matching 125 mm (5 in) CHV-X valve housing to make up or repair a complete check valve. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) industrial refrigeration systems.
Specifications
- Part number
- 148B6119
- HS code
- 8481.90
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 125 mm
Compatibility
Danfoss SVL Flexline function module (complete top part). This code is the top part for the 125 mm (5 in) CHV-X check valve. Order to repair or rebuild an existing 125 mm CHV-X housing, or together with the matching housing to make up a complete valve. Confirm the valve nominal size (125 mm / 5 in) before ordering.
Approvals
