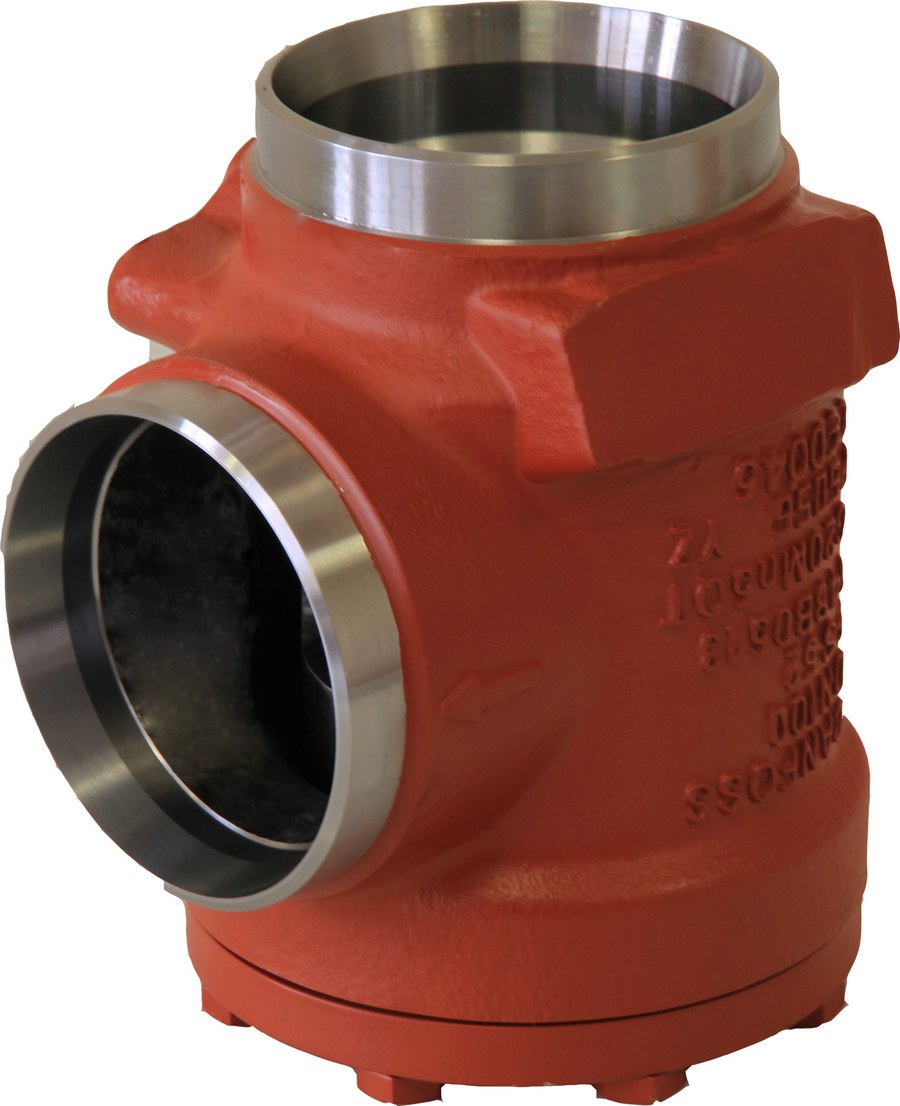

Danfoss FIA 150 angleway strainer housing, 150 mm (6 in) butt weld ASME B 36.10M Schedule 40, steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FIA 150 angleway strainer housing for industrial refrigeration, code 148B6204. Steel body with butt weld connections to ASME B 36.10M Schedule 40, nominal size 150 mm (6 in), used to protect valves, pumps and compressors from pipe-scale and debris. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient with standard mu150 plain insert Kv 362.1 m3/h (Cv 418.6 gal/min); higher Kv with mu250/mu500 and pleated inserts. Filter insert ordered separately. Part of the Danfoss SVL Flexline programme; for R717 (ammonia), R744 (CO2) and fluorinated refrigerants.
Technical Specifications
- Type
- FIA 150 strainer housing (SVL Flexline)
- Code number
- 148B6204
- Series
- FIA
- Direction
- Angleway
- Connection type
- Butt weld
- Connection standard
- ASME B 36.10M Schedule 40
- Nominal size
- 150 mm (6 in)
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value (mu150 plain insert)
- 362.1 m3/h (Cv 418.6 gal/min); higher with mu250/mu500 and pleated inserts
- Note
- filter insert ordered separately
- Applicable media
- R717 (ammonia), R744 (CO2), HCFC/HFC refrigerants and oils
- Conformity assessment
- PED 2014/68/EU, Category III
- Approvals
- CE
- Net weight
- 29.7 kg
- EAN
- 5702428475358
- Product group
- Strainers
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2002:S40:150)
- Connection material
- Steel
- Cv value [gal/min] 100 plain
- 1594.28 gal/min
- Cv value [gal/min] 100 pleated
- 1969.4 gal/min
- Cv value [gal/min] 38 plain
- 1725.48 gal/min
- Cv value [gal/min] 72 plain
- 1643.15 gal/min
- Equipment
- Cover
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 6 in
- Inlet connection size [mm]
- 150 mm
- Inlet connection type
- Butt weld
- Kv value [m3/h] µ150 plain
- 362.1 m³/h
- Kv value [m3/h] µ150 pleated
- 447.3 m³/h
- Kv value [m3/h] µ250 plain
- 373.2 m³/h
- Kv value [m3/h] µ500 plain
- 391.9 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 6 in
- Outlet connection size [mm]
- 150 mm
- Outlet connection type
- Butt weld
- PED category
- III
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- ASME B 36.10M Schedule 40
- Size / Series
- 150 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8421.39
Compatibility & Fitment
Danfoss SVL Flexline FIA 150 strainer housing. Select by direction (angleway) and connection standard (ASME B 36.10M Schedule 40); order the filter insert (mu150 / mu250 / mu500, plain or pleated) separately. Shares the SVL Flexline platform with SVA-S/SVA-L, SCA-X/CHV-X and REG valves of the same nominal size.
