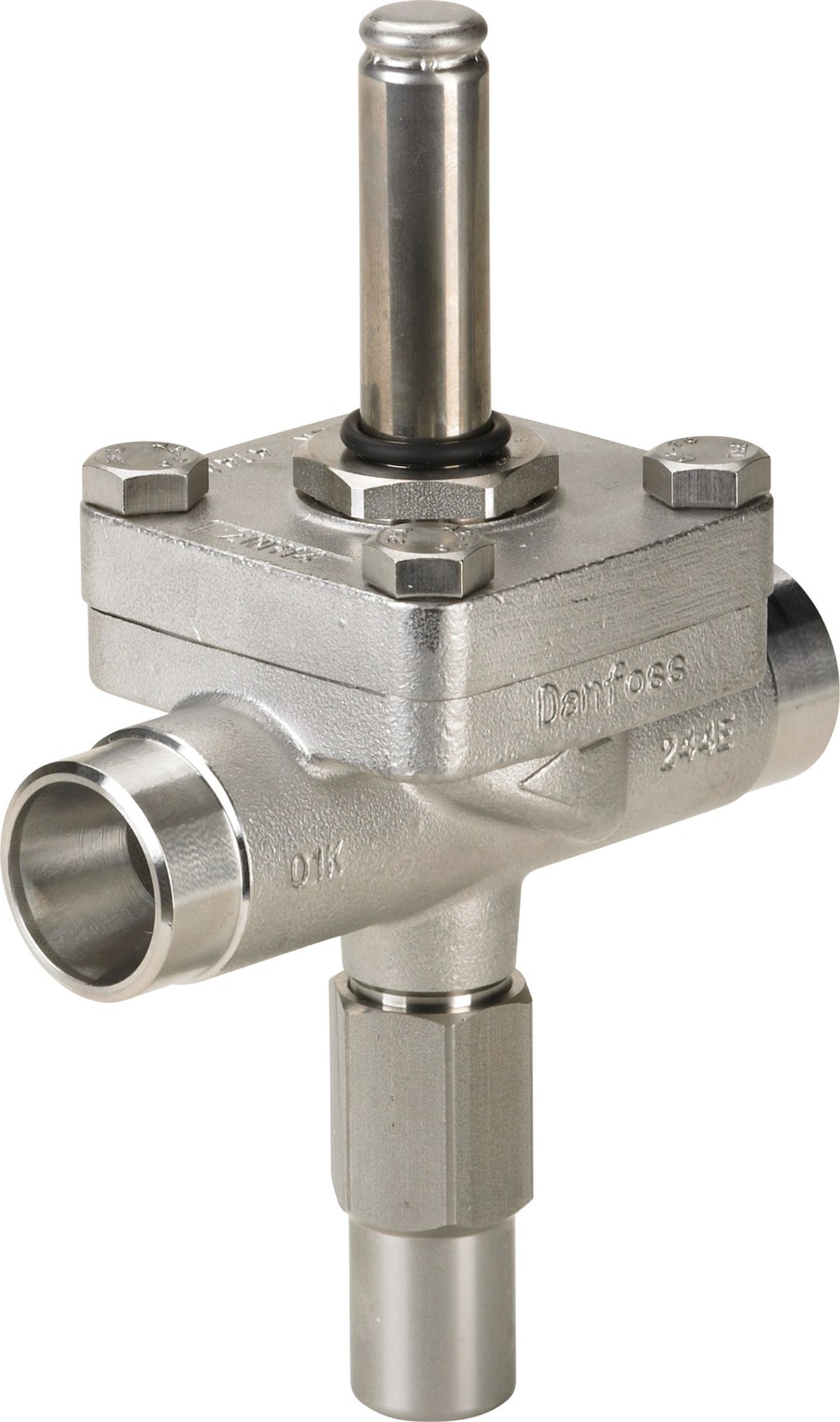

Danfoss EVRST 10 solenoid valve, 1/2 in butt weld EN 10220, stainless steel, 50 bar, NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EVRST 10 solenoid valve for industrial and commercial refrigeration, store code 032F3083. NC (normally closed) valve, direct-operated (with manual operation), with 1/2 in butt weld connections to EN 10220. Flow coefficient Kv 1.5 m³/h; orifice 14 mm. Maximum working pressure 50 bar (725 psig); media temperature range -40 to 105 °C. Body material: Stainless steel body. Suitable for R717 (ammonia), R744 (CO2) and HFC/HCFC refrigerants. EVRST = direct-operated variant (opens at zero differential pressure) with manual-operation option. Stainless-steel body. Coil ordered separately. Weight: net 1.139 kg, gross 1.346 kg. Specifications per Danfoss store code 032F3083.
Technical Specifications
- Type
- EVRST 10 solenoid valve
- Code number
- 032F3083
- Connection
- 1/2 in butt weld, EN 10220
- Function
- NC (normally closed)
- Valve operation
- Direct-operated (with manual operation)
- Orifice size
- 14 mm
- Flow coefficient
- Kv 1.5 m³/h
- Maximum working pressure
- 50 bar (725 psig)
- Media temperature range
- -40 to 105 °C
- Body material
- Stainless steel body
- Applicable refrigerants
- R717 (ammonia), R744 (CO2) and HFC/HCFC refrigerants
- Weight
- net 1.139 kg, gross 1.346 kg
- Coil
- ordered separately
- Approvals
- EAC
- EAN
- 5702422006664
- Net weight
- 1.139 Kilogram
- Product group
- Solenoid valves
- Actuator system [mm]
- 13.5 mm
- Ambient temperature
- -40 - 80 °C
- Ambient temperature range [°F] [max]
- 175 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- EAC
- China RoHS compliance
- Yes
- Connection Code
- (2501:D23:15)
- Connection material
- Stainless steel
- Cv value [gal/min]
- 1.7 gal/min
- Direction
- Straightway
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Inlet connection standard
- EN 10220
- Inlet connection type
- Butt weld
- Inlet size [in]
- 1/2 in
- Kv value [m³/h]
- 1.5 m³/h
- Manual operation option
- Yes
- Max. Working Pressure [bar]
- 50 bar
- Max. Working Pressure [psig]
- 725 psig
- MaxOPD[bar] 10W AC
- 14 bar
- MaxOPD[bar] 12W AC
- 21 bar
- MaxOPD[bar] 20W DC
- 16 bar
- Medium temp. range note
- Defrost max 130°C/265°F
- Medium temperature range [°C] [max]
- 105 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 221 °F
- Medium temperature range [°F] [min]
- -40 °F
- MinODP [bar]
- 0 bar
- Orifice size [mm]
- 14 mm
- Outlet connection standard
- EN 10220
- Outlet connection type
- Butt weld
- Outlet size [in]
- 1/2 in
- REACH Candidate List substances
- No
- Refrigerants
- R502
- Type designation
- Solenoid valve
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 1/2 in
- Material
- Stainless steel body
- Pressure Rating
- 50 bar
- Temperature Range
- -40 to 105 °C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss EVRST 10 refrigeration solenoid valve. Coil is ordered separately — match coil voltage/frequency and connector to the installation. Refrigerant and pressure compatibility per the Danfoss data sheet; verify against your system specification before ordering.
