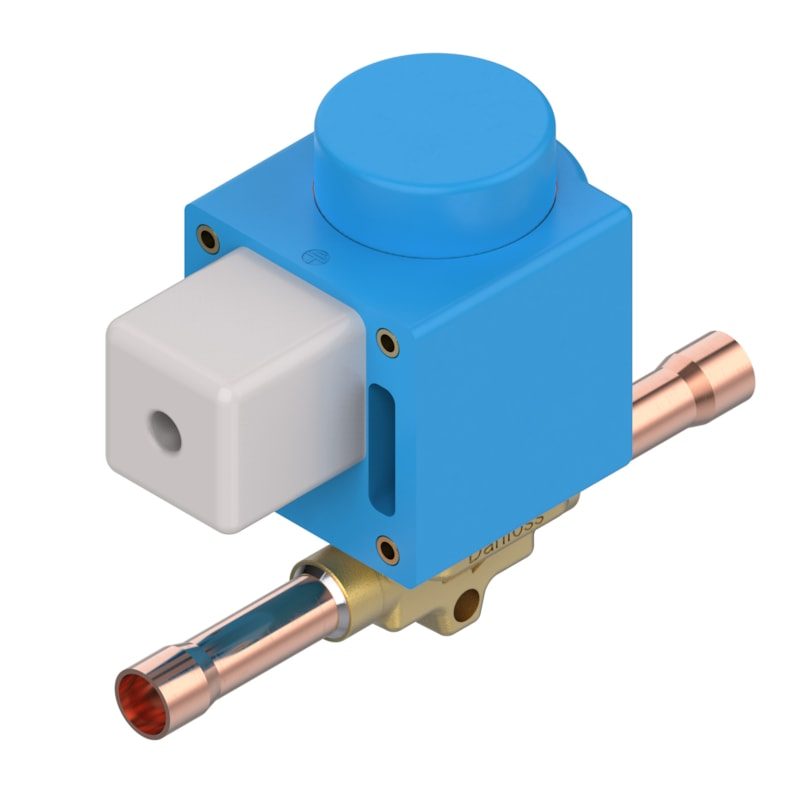

Danfoss EVO 101 solenoid valve, 3/8 in ODF solder, brass body, 45.2 bar, NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EVO 101 solenoid valve for industrial and commercial refrigeration, store code 032F2046. NC (normally closed) valve, direct-operated, with 3/8 in ODF solder connections. Flow coefficient Kv 0.27 m³/h (0.31 gal/min Cv); orifice 3.3 mm. Maximum working pressure 45.2 bar (655 psig); media temperature range -40 to 105 °C. Body material: Brass body. Suitable for HFC/HCFC and hydrocarbon refrigerants (R134a, R404A, R410A, R32, R290 and others). EVO 101 solenoid valve. MOPD 21 bar. Regionally gated on the Danfoss store. Weight: net 0.437 kg, gross 0.494 kg. Specifications per Danfoss store code 032F2046.
Technical Specifications
- Type
- EVO 101 solenoid valve
- Code number
- 032F2046
- Connection
- 3/8 in ODF solder, ODF (solder)
- Function
- NC (normally closed)
- Valve operation
- Direct-operated
- Orifice size
- 3.3 mm
- Flow coefficient
- Kv 0.27 m³/h (0.31 gal/min Cv)
- Maximum working pressure
- 45.2 bar (655 psig)
- Media temperature range
- -40 to 105 °C
- Body material
- Brass body
- Applicable refrigerants
- HFC/HCFC and hydrocarbon refrigerants (R134a, R404A, R410A, R32, R290 and others)
- Weight
- net 0.437 kg, gross 0.494 kg
- Coil
- ordered separately
- Approvals
- EAC
- EAN
- 5702422020448
- Net weight
- 0.437 Kilogram
- Product group
- Solenoid valves
- Actuator system [mm]
- 13.5 mm
- Ambient temperature
- -40 - 80 °C
- Ambient temperature range [°F] [max]
- 175 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- EAC
- China RoHS compliance
- Out of scope
- Coil connection
- Cap
- Coil type
- BE230AS
- Cv value [gal/min]
- 0.31 gal/min
- Direction
- Straightway
- Enclosure rating IP
- IP20
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Frequency [Hz]
- 50 Hz
- Inlet connection type
- Solder, ODF
- Inlet size [in]
- 3/8 in
- Kv value [m³/h]
- 0.27 m³/h
- Lubricants compatibility
- AB
- Manual operation option
- No
- Max. Working Pressure [bar]
- 45.2 bar
- Max. Working Pressure [psig]
- 655 psig
- MaxOPD[bar] 10W AC
- 21 bar
- Medium temperature range [°C] [max]
- 105 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 221 °F
- Medium temperature range [°F] [min]
- -40 °F
- MinODP [bar]
- 0 bar
- MOPD[bar/psi]
- 21 bar
- Orifice size [mm]
- 3.3 mm
- Outlet connection type
- Solder, ODF
- Outlet size [in]
- 3/8 in
- Power consumption
- 10 W
- Power consumption [W] 50Hz
- 12 W
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R1234yf
- Supply voltage 50Hz Max [V]
- 230 V
- Supply voltage 50Hz Min [V]
- 220 V
- Supply voltage [V] AC [max]
- 230 V
- Supply voltage [V] AC [min]
- 220 V
- Type designation
- Solenoid valve, Solder
Standards & Compliance
- Standard
- ODF (solder)
- Size / Series
- 3/8 in
- Material
- Brass body
- Pressure Rating
- 45.2 bar
- Temperature Range
- -40 to 105 °C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss EVO 101 refrigeration solenoid valve. Coil is ordered separately — match coil voltage/frequency and connector to the installation. Refrigerant and pressure compatibility per the Danfoss data sheet; verify against your system specification before ordering.
