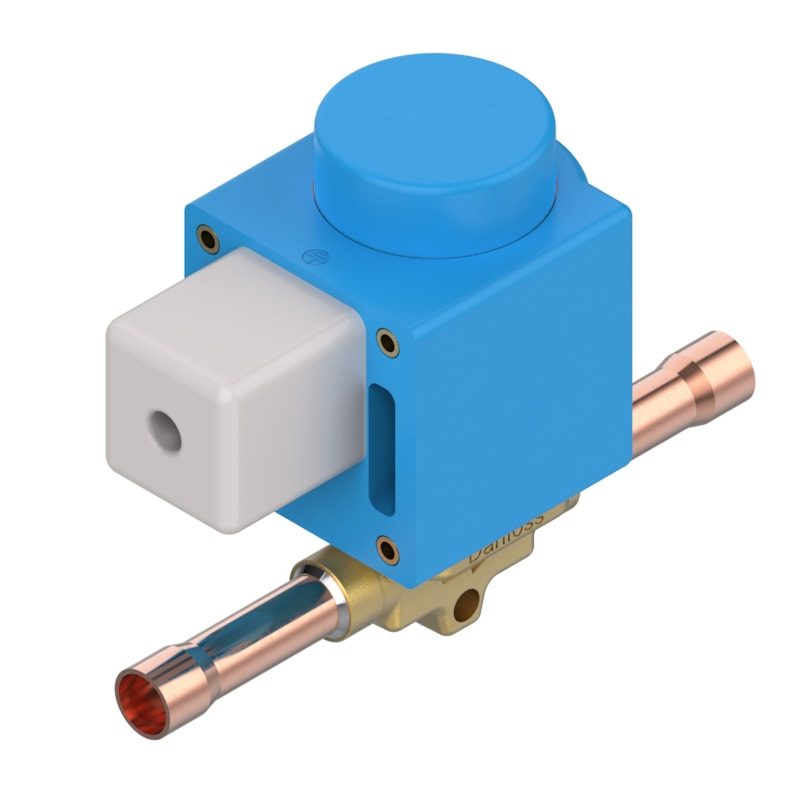

Danfoss EVO 101 solenoid valve, 1/4 in ODF solder, brass body, 45.2 bar, NC (code 032F2047)
Danfoss · HVAC & Refrigeration · Solenoid Valves
Danfoss EVO 101 solenoid valve for industrial and commercial refrigeration, store code 032F2047. NC (normally closed) valve, direct-operated, with 1/4 in ODF solder connections. Flow coefficient Kv 0.27 m³/h (0.31 gal/min Cv); orifice 3.3 mm. Maximum working pressure 45.2 bar (655 psig); media temperature range -40 to 105 °C. Body material: Brass body. Suitable for HFC/HCFC and hydrocarbon refrigerants (R134a, R404A, R410A, R32, R290 and others). EVO 101 solenoid valve. MOPD 21 bar. Regionally gated on the Danfoss store. Weight: net 0.433 kg, gross 0.484 kg. Specifications per Danfoss store code 032F2047.
Specifications
- Part number
- 032F2047
- HS code
- 8481.80
- Material
- Brass body
- Pressure rating
- 45.2 bar
- Temperature range
- -40 to 105 °C
- Standard
- ODF (solder)
- Standard size
- 1/4 in
Compatibility
Danfoss EVO 101 refrigeration solenoid valve. Coil is ordered separately — match coil voltage/frequency and connector to the installation. Refrigerant and pressure compatibility per the Danfoss data sheet; verify against your system specification before ordering.
Approvals
