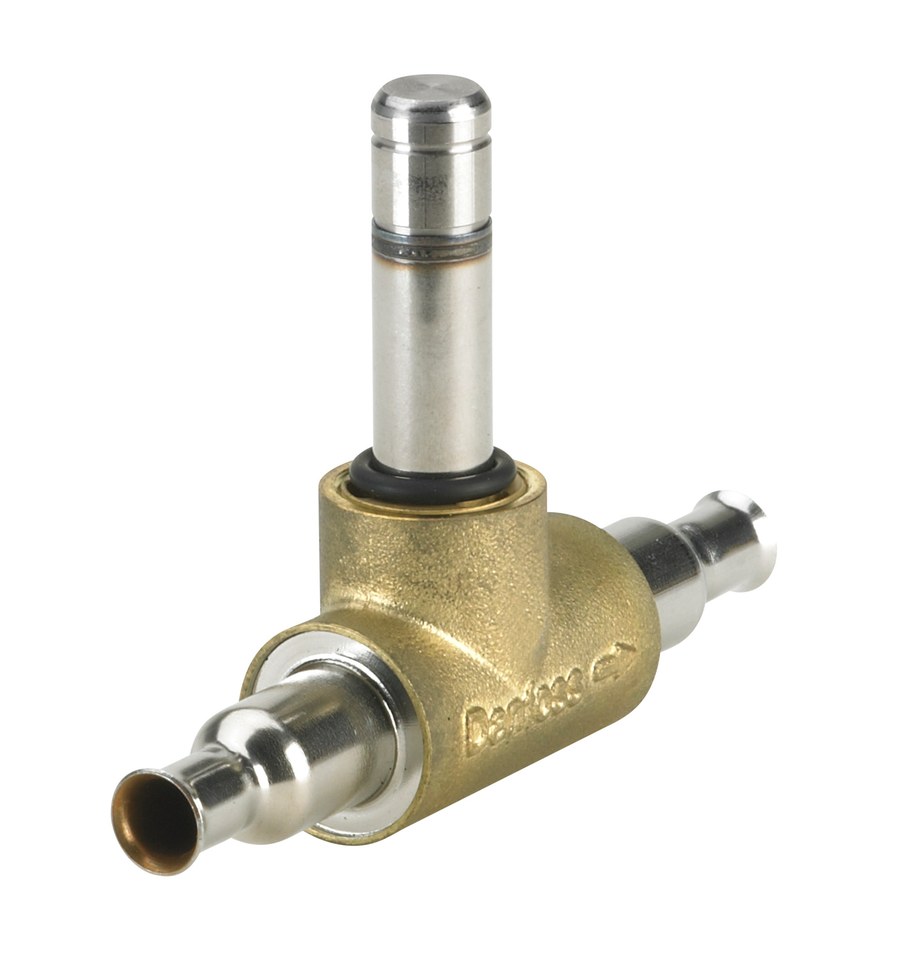

Danfoss EVU 3 solenoid valve, 6 mm ODF solder, brass body, 70 bar, NC (code 032F5025)
Danfoss · HVAC & Refrigeration · Solenoid Valves
Danfoss EVU 3 solenoid valve for industrial and commercial refrigeration, store code 032F5025. NC (normally closed) valve, direct-operated, straightway, with 6 mm ODF solder connections. Flow coefficient Kv 0.3 m³/h (0.4 gal/min Cv). Maximum working pressure 70 bar (1015 psig); media temperature range -40 to 105 °C. Body material: Brass body. Suitable for HFC/HCFC/HFO and R744 (CO2) refrigerants. Compact hermetic solenoid valve, 70 bar. Actuator system 9 mm. Coil not included. UL Recognized (UR). Weight: net 0.089 kg, gross 0.101 kg. Specifications per Danfoss store code 032F5025.
Specifications
- Part number
- 032F5025
- HS code
- 8481.80
- Material
- Brass body
- Pressure rating
- 70 bar
- Temperature range
- -40 to 105 °C
- Standard
- ODF (solder)
- Standard size
- 6 mm
Compatibility
Danfoss EVU 3 refrigeration solenoid valve. Coil is ordered separately — match coil voltage/frequency and connector to the installation. Refrigerant and pressure compatibility per the Danfoss data sheet; verify against your system specification before ordering.
Approvals
