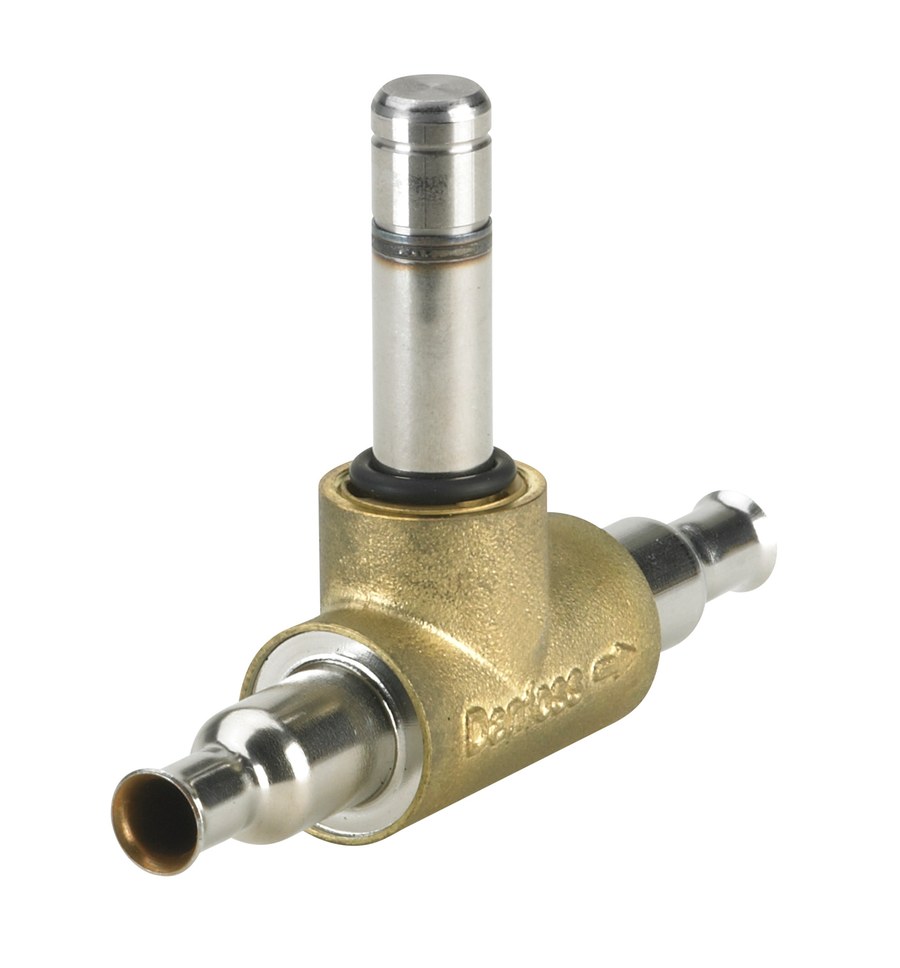

Danfoss EVU 6 solenoid valve, 12 mm ODF solder, brass body, 70 bar, NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EVU 6 solenoid valve for industrial and commercial refrigeration, store code 032F5048. NC (normally closed) valve, direct-operated, with 12 mm ODF solder connections. Flow coefficient Kv 0.8 m³/h. Maximum working pressure 70 bar (1015 psig); media temperature range -40 to 105 °C. Body material: Brass body. Suitable for HFC/HCFC/HFO and R744 (CO2) refrigerants. Compact hermetic solenoid valve, 70 bar. Coil not included. UL Recognized (UR). Weight: net 0.104 kg, gross 0.115 kg. Specifications per Danfoss store code 032F5048.
Technical Specifications
- Type
- EVU 6 solenoid valve
- Code number
- 032F5048
- Connection
- 12 mm ODF solder, ODF (solder)
- Function
- NC (normally closed)
- Valve operation
- Direct-operated
- Flow coefficient
- Kv 0.8 m³/h
- Maximum working pressure
- 70 bar (1015 psig)
- Media temperature range
- -40 to 105 °C
- Body material
- Brass body
- Applicable refrigerants
- HFC/HCFC/HFO and R744 (CO2) refrigerants
- Weight
- net 0.104 kg, gross 0.115 kg
- Coil
- ordered separately
- Approvals
- UL, EAC
- EAN
- 5702428517256
- Net weight
- 0.104 Kilogram
- Product group
- Solenoid valves
- Actuator system [mm]
- 9 mm
- Ambient temperature
- -40 - Coil dependent
- Approval
- EAC
- China RoHS compliance
- Yes with exemptions
- Connection Code
- (3001:X:12)
- Cv value [gal/min]
- 0.9 gal/min
- Direction
- Straightway
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Inlet connection type
- Solder, ODF
- Inlet size [mm]
- 12 mm
- Kv value [m³/h]
- 0.8 m³/h
- Lubricants compatibility
- AB
- Manual operation option
- No
- Max. Working Pressure [bar]
- 70 bar
- Max. Working Pressure [psig]
- 1015 psig
- Medium temp. range note
- Defrost max. 130ºC/265ºF
- Medium temperature range [°C] [max]
- 105 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 221 °F
- Medium temperature range [°F] [min]
- -40 °F
- MinODP [bar]
- 0.02 bar
- MOPD[bar/psi]
- Coil Dependent
- Outlet connection type
- Solder, ODF
- Outlet size [mm]
- 12 mm
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R1233zd(E)
- Type designation
- Solenoid valve, Solder
- UL approved refrigerants
- R1233zd(E)
Standards & Compliance
- Standard
- ODF (solder)
- Size / Series
- 12 mm
- Material
- Brass body
- Pressure Rating
- 70 bar
- Temperature Range
- -40 to 105 °C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss EVU 6 refrigeration solenoid valve. Coil is ordered separately — match coil voltage/frequency and connector to the installation. Refrigerant and pressure compatibility per the Danfoss data sheet; verify against your system specification before ordering.
