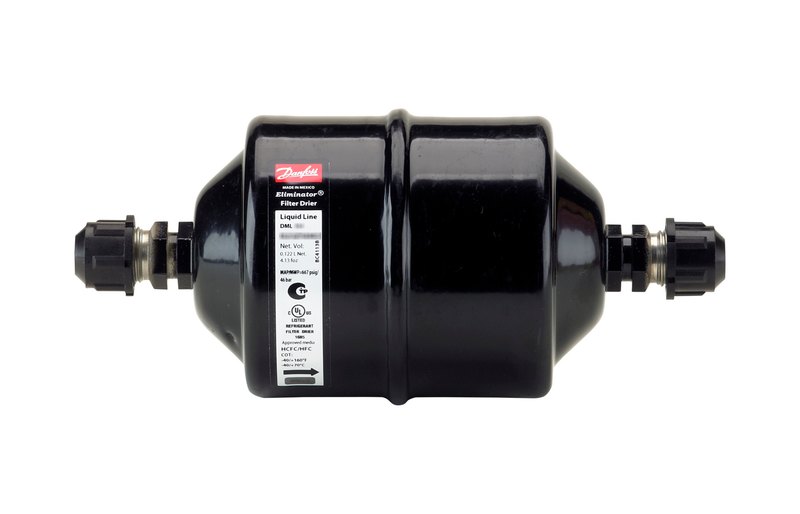

Danfoss DML 163 filter drier, Flare, SAE 3/8 in (10 mm)
Pricing
Request a quote
We reply within 24 hours
Product Description
DML 163 ELIMINATOR hermetic filter drier, 16 cu.in. 100% molecular sieve solid core. Danfoss OEM, P/N 023Z5043. Liquid-line drier for refrigeration and air-conditioning systems; removes moisture, acids and solid particles from the refrigerant. Connection: Flare, SAE, 3/8 in (10 mm), inlet and outlet. Max working pressure 46 bar (667 psig); media temperature -40 to 70 °C. Highest moisture-capacity core (100% molecular sieve) for liquid-line drying. Refrigerant compatibility per the DML/DCL datasheet — verify against your system charge. Net weight 0.678 kg, gross 0.752 kg. EAN 5702428155694.
Technical Specifications
- Brand
- Danfoss
- Part number
- 023Z5043
- Model
- DML 163 (ELIMINATOR hermetic filter drier)
- Category
- Filters & Driers
- Core
- 16 cu.in. solid core, 100% molecular sieve
- Connection
- Flare, SAE, 3/8 in (10 mm), inlet and outlet
- Net volume
- 0.226 L
- Max working pressure
- 46 bar (667 psig)
- Operating temperature
- -40 °C to 70 °C (-40 °F to 160 °F)
- Body material
- Steel shell, Cu-plated steel connectors, 100% molecular sieve core
- Net weight
- 0.678 kg
- Gross weight
- 0.752 kg
- EAN
- 5702428155694
- Approvals
- CE, EAC, PED (PS 46 bar), UL (file SA6398)
- Type
- DML
- Product group
- Filter driers
- Acid capacity [g]
- 1.2 g
- Acid capacity [oz]
- 0.042 oz
- Activated alumina [%]
- 0 %
- Approval
- UL
- Braket
- No
- China RoHS compliance
- Yes
- Connection Code
- (3011:X:10)
- Connection material
- Steel
- Core Size code
- 16 cu.in.
- Core type
- Solid core
- Drying Cap[Drops of Water]24°C
- R134a: 559
- Drying Cap[Drops of Water]52°C
- R134a: 512
- EU RoHS compliance
- Yes
- Filter application
- High Moisture Capacity
- Flow capacity [kW]
- R134a: 18.1
- Flow capacity [TR]
- R134a: 5.2
- Flow direction indicator
- Label printed 1-way arrow
- Fluid Group
- 2
- Inlet 1 connection size [in]
- 3/8 in
- Inlet connection size [mm]
- 10 mm
- Inlet connection type
- Flare
- LiqCap Cond (ARI 710-2009)[SI]
- Delta p=0.07bar
- LiqCapCond (ARI 710-2009)[IMP]
- Delta p=1psi
- Lubricants compatibility
- Oilfree applications
- Max. Working Pressure [bar]
- 46 bar
- Max. Working Pressure [psig]
- 667 psig
- Molecular sieve [%]
- 100 %
- Net volume [foz US]
- 7.63 Fluid Ounce US
- Net volume [l]
- 0.226 L
- Oil free refrigerants
- R1234ze(E)
- Outlet 1 connection size [in]
- 3/8 in
- Outlet connection size [mm]
- 10 mm
- Outlet connection type
- Flare
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- No
- Refrigerants
- R1233zd(E)
- Shell volume [foz US]
- 11.97 Fluid Ounce US
- Shell volume [l]
- 0.35 L
- Solid core surface [cm2]
- 183 cm²
- Solid core surface [in2]
- 28.34 in²
- Solid core volume [cm3]
- 128 cm³
- Solid core volume [in3]
- 7.84 in³
- Temperature range [°C] [max]
- 70 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 160 °F
- Temperature range [°F] [min]
- -40 °F
- Type designation
- DML 163
- UL approval file name
- SA6398
- UL approved refrigerants
- R125
- UL mark
- Yes
Standards & Compliance
- Size / Series
- 3/8 in (10 mm)
- Material
- Steel shell, Cu-plated steel connectors, 100% molecular sieve core
- Pressure Rating
- 46 bar (667 psig) max working pressure
- Temperature Range
- -40 °C to 70 °C
- Classification / Approval
- CE, EAC, PED (PS 46 bar), UL (file SA6398)
- HS Code
- 8421.39
Compatibility & Fitment
Refrigerant compatibility listed on the DML/DCL datasheet. Only solder (Cu-plated/pure-copper) versions in sizes below 25 mm are approved for flammable refrigerants. Verify against your system specification before ordering.
