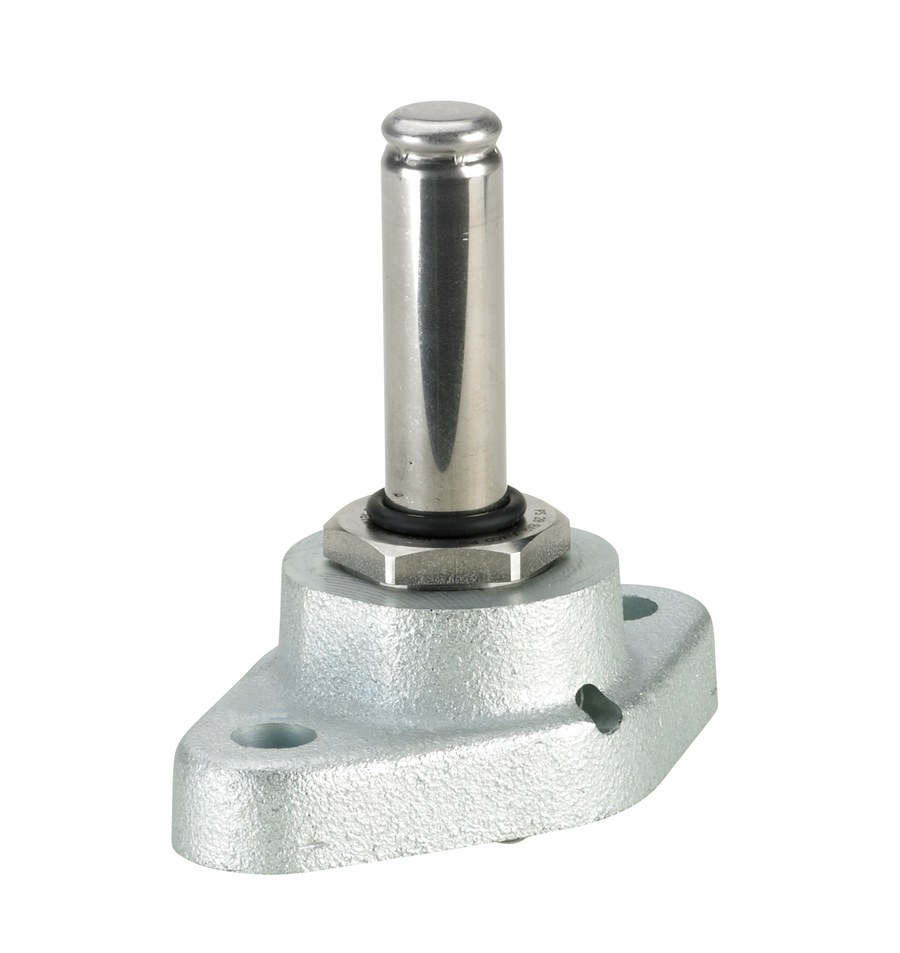

Danfoss EVRF solenoid valve, — flange, steel body, 28 bar, Capacity regulator / unloading valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EVRF solenoid valve for industrial and commercial refrigeration, store code 032F6250. Capacity regulator / unloading valve valve, solenoid-operated, with — flange connections. Maximum working pressure 28 bar (400 psig); media temperature range -40 to 105 °C. Body material: Steel body. Suitable for R134a, R22/R407C, R23, R404A/R507A, R407A/F, R410A, R448A, R449A, R450A, R452A. EVRF unloader flange valve — solenoid-operated capacity regulator (compressor unloading valve) mounted on the compressor flange. Ambient -40 to 55 °C. Weight: net 0.482 kg, gross 0.52 kg. Specifications per Danfoss store code 032F6250.
Technical Specifications
- Type
- EVRF solenoid valve
- Code number
- 032F6250
- Connection
- — flange
- Function
- Capacity regulator / unloading valve
- Valve operation
- Solenoid-operated
- Maximum working pressure
- 28 bar (400 psig)
- Media temperature range
- -40 to 105 °C
- Body material
- Steel body
- Applicable refrigerants
- R134a, R22/R407C, R23, R404A/R507A, R407A/F, R410A, R448A, R449A, R450A, R452A
- Weight
- net 0.482 kg, gross 0.52 kg
- Coil
- ordered separately
- Approvals
- EAC
- EAN
- 5702422170563
- Net weight
- 0.482 Kilogram
- Product group
- Solenoid valves
- Actuator system [mm]
- 13.5 mm
- Ambient temperature
- -40 - 55 °C
- Ambient temperature range [°F] [max]
- 131 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- EAC
- China RoHS compliance
- Yes
- Direction
- None
- EU RoHS compliance
- Yes
- Inlet connection type
- Flange
- Lubricants compatibility
- AB
- Manual operation option
- No
- Max. Working Pressure [bar]
- 28 bar
- Max. Working Pressure [psig]
- 400 psig
- MaxOPD[bar] 10W AC
- 18 bar
- Medium temperature range [°C] [max]
- 105 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 221 °F
- Medium temperature range [°F] [min]
- -40 °F
- Outlet connection type
- Flange
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Type designation
- Capacity Regulator
Standards & Compliance
- Standard
- Flange
- Size / Series
- —
- Material
- Steel body
- Pressure Rating
- 28 bar
- Temperature Range
- -40 to 105 °C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss EVRF refrigeration solenoid valve. Coil is ordered separately — match coil voltage/frequency and connector to the installation. Refrigerant and pressure compatibility per the Danfoss data sheet; verify against your system specification before ordering.
