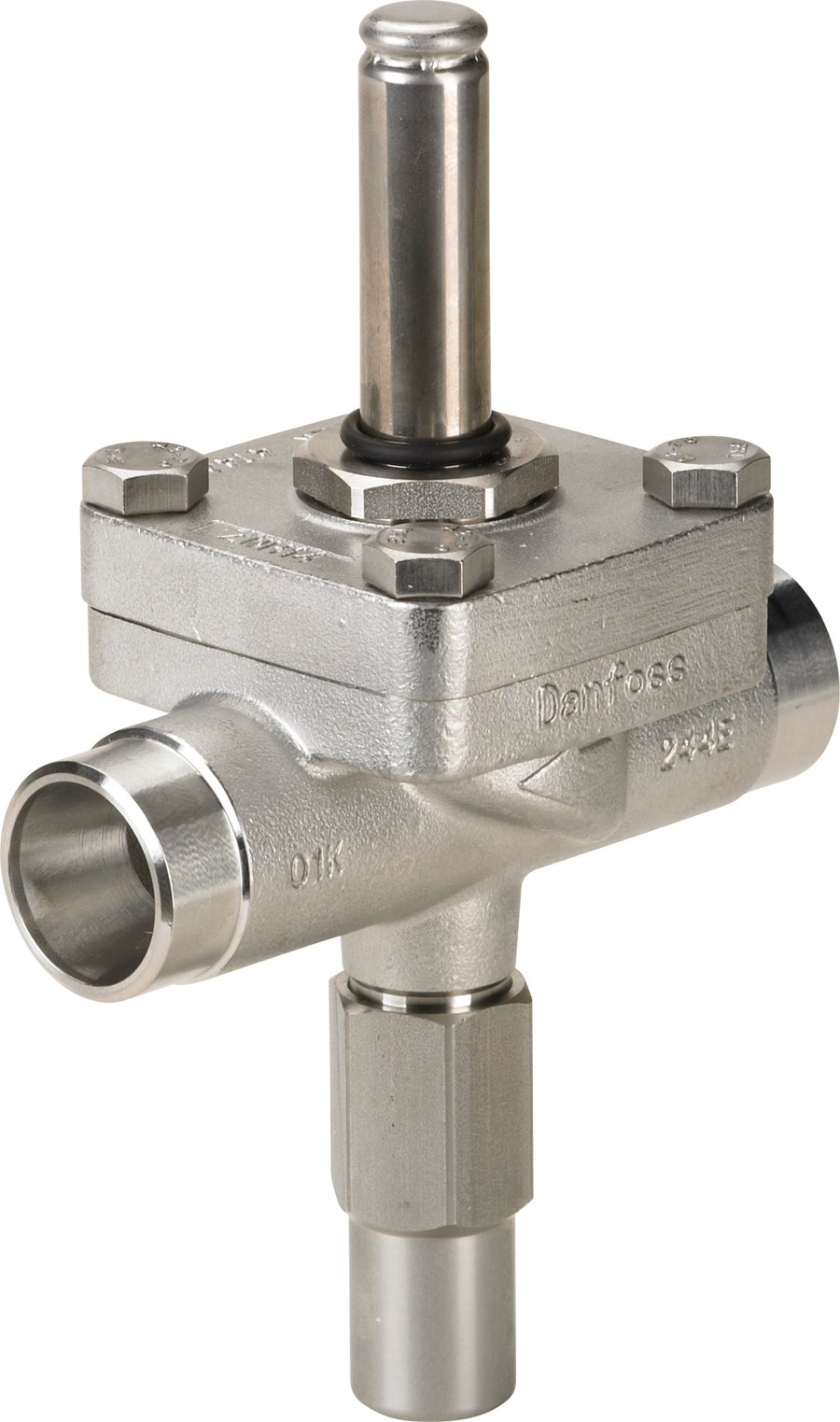

Danfoss EVRS 20 solenoid valve, 1 in butt weld EN 10220, stainless steel, 28 bar, NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EVRS 20 solenoid valve for industrial and commercial refrigeration, store code 032F3086. NC (normally closed) valve, servo-diaphragm, with 1 in butt weld connections to EN 10220. Flow coefficient Kv 4.5 m³/h (5.2 gal/min Cv); orifice 16 mm. Maximum working pressure 28 bar (400 psig); media temperature range -40 to 105 °C. Body material: Stainless steel body. Suitable for R717 (ammonia), R744 (CO2) and HFC/HCFC refrigerants. Servo-diaphragm operation. Stainless-steel body. Coil ordered separately. Weight: net 1.991 kg, gross 2.116 kg. Specifications per Danfoss store code 032F3086.
Technical Specifications
- Type
- EVRS 20 solenoid valve
- Code number
- 032F3086
- Connection
- 1 in butt weld, EN 10220
- Function
- NC (normally closed)
- Valve operation
- Servo-diaphragm
- Orifice size
- 16 mm
- Flow coefficient
- Kv 4.5 m³/h (5.2 gal/min Cv)
- Maximum working pressure
- 28 bar (400 psig)
- Media temperature range
- -40 to 105 °C
- Body material
- Stainless steel body
- Applicable refrigerants
- R717 (ammonia), R744 (CO2) and HFC/HCFC refrigerants
- Weight
- net 1.991 kg, gross 2.116 kg
- Coil
- ordered separately
- Approvals
- EAC
- EAN
- 5702422162513
- Net weight
- 1.991 Kilogram
- Product group
- Solenoid valves
- Actuator system [mm]
- 13.5 mm
- Ambient temperature
- -40 - 80 °C
- Ambient temperature range [°F] [max]
- 175 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- EAC
- China RoHS compliance
- Yes
- Connection material
- Stainless steel
- Cv value [gal/min]
- 5.2 gal/min
- Direction
- Straightway
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Inlet connection standard
- EN 10220
- Inlet connection type
- Butt weld
- Inlet size [in]
- 1 in
- Kv value [m³/h]
- 4.5 m³/h
- Manual operation option
- Yes
- Max. Working Pressure [bar]
- 28 bar
- Max. Working Pressure [psig]
- 400 psig
- MaxOPD[bar] 10W AC
- 21 bar
- MaxOPD[bar] 12W AC
- 25 bar
- MaxOPD[bar] 20W DC
- 13 bar
- Medium temp. range note
- Defrost max 130°C/265°F
- Medium temperature range [°C] [max]
- 105 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 221 °F
- Medium temperature range [°F] [min]
- -40 °F
- MinODP [bar]
- 0.05 bar
- Orifice size [mm]
- 16 mm
- Outlet connection standard
- EN 10220
- Outlet connection type
- Butt weld
- Outlet size [in]
- 1 in
- REACH Candidate List substances
- No
- Refrigerants
- R134a
- Type designation
- Solenoid valve
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 1 in
- Material
- Stainless steel body
- Pressure Rating
- 28 bar
- Temperature Range
- -40 to 105 °C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss EVRS 20 refrigeration solenoid valve. Coil is ordered separately — match coil voltage/frequency and connector to the installation. Refrigerant and pressure compatibility per the Danfoss data sheet; verify against your system specification before ordering.
Product Documentation
More from Danfoss
Danfoss

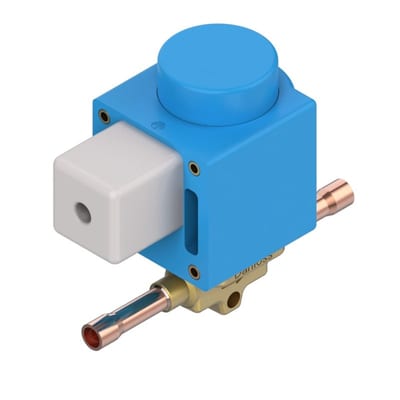

Danfoss EVO 100 solenoid valve, 1/4 in ODF solder, brass body, 45.2 bar, NC
032F2015
Danfoss

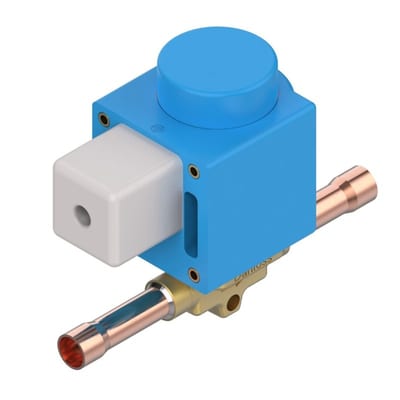

Danfoss EVO 101 solenoid valve, 3/8 in ODF solder, brass body, 45.2 bar, NC
032F2046
Danfoss
Danfoss EVO 101 solenoid valve, 1/4 in ODF solder, brass body, 45.2 bar, NC
032F2047
Danfoss
Danfoss EVU 3 solenoid valve, 1/4 in ODF solder, brass body, 70 bar, NC
032F5024
Danfoss
Danfoss EVU 3 solenoid valve, 6 mm ODF solder, brass body, 70 bar, NC
032F5025
Danfoss
Danfoss EVU 3 solenoid valve, 3/8 in ODF solder, brass body, 70 bar, NC
032F5026
Danfoss

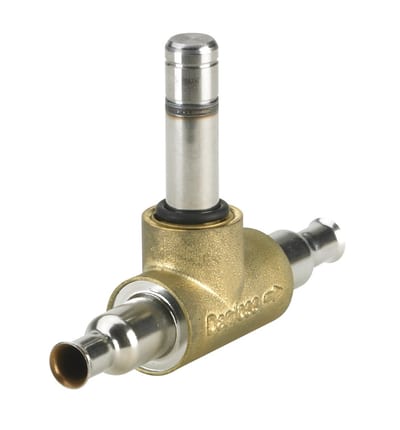

Danfoss EVU 3 solenoid valve, 10 mm ODF solder, brass body, 70 bar, NC
