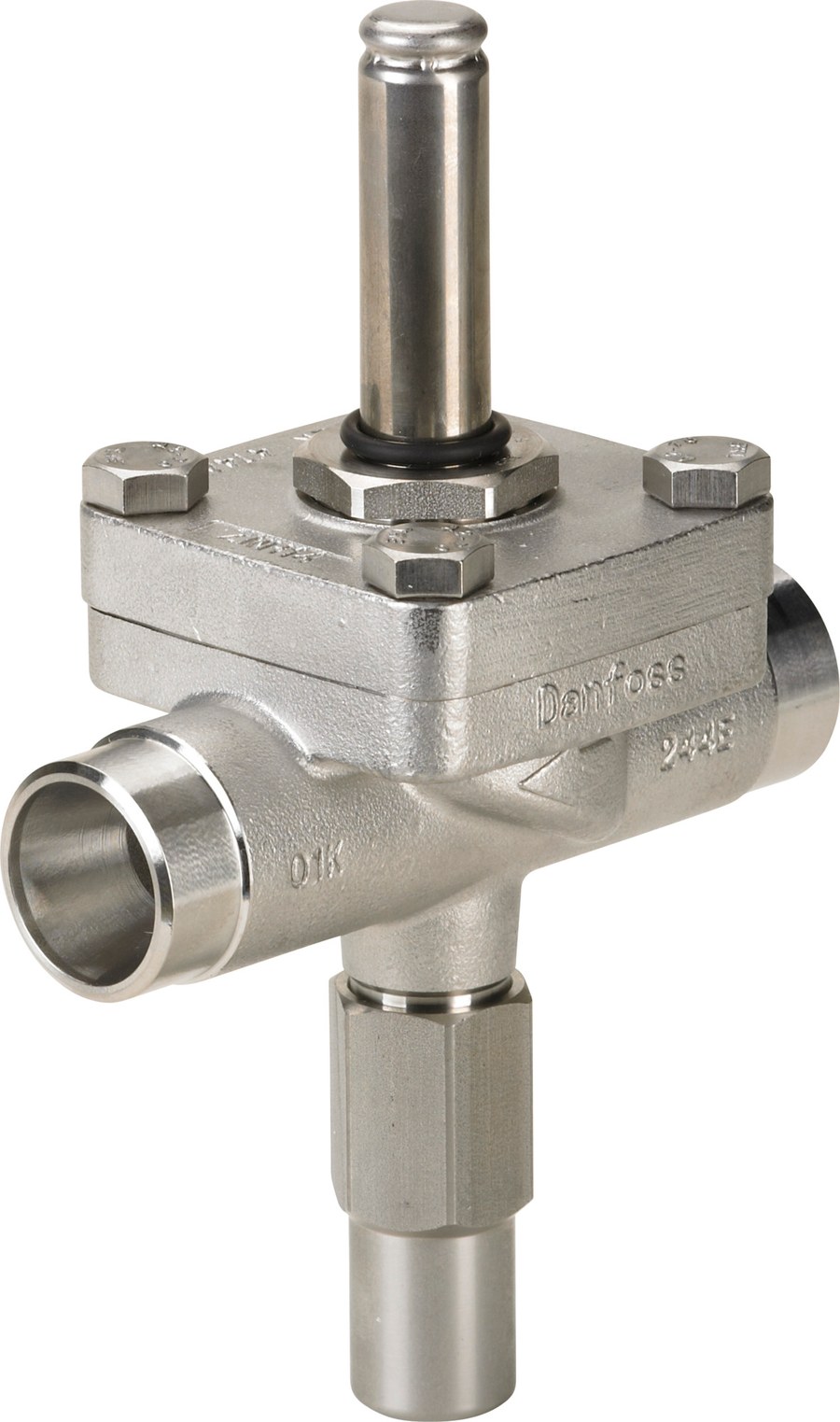

Danfoss EVRS 10 solenoid valve, 1/2 in butt weld EN 10220, stainless steel, 50 bar, NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EVRS 10 solenoid valve for industrial and commercial refrigeration, store code 032F3082. NC (normally closed) valve, servo-diaphragm, with 1/2 in butt weld connections to EN 10220. Flow coefficient Kv 1.5 m³/h (1.7 gal/min Cv); orifice 18 mm. Maximum working pressure 50 bar (725 psig); media temperature range -40 to 105 °C. Body material: Stainless steel body. Suitable for R717 (ammonia), R744 (CO2) and HFC/HCFC refrigerants. Servo-diaphragm operation (requires minimum differential pressure). Stainless-steel body. Coil ordered separately. Weight: net 1.119 kg, gross 1.348 kg. Specifications per Danfoss store code 032F3082.
Technical Specifications
- Type
- EVRS 10 solenoid valve Code number: 032F3082 Connection: 1/2 in butt weld, EN 10220 Function: NC (normally closed) Valve operation: Servo-diaphragm Orifice size: 18 mm Flow coefficient: Kv 1.5 m³/h (1.7 gal/min Cv) Maximum working pressure: 50 bar (725 psig) Media temperature range: -40 to 105 °C Body material: Stainless steel body Applicable refrigerants: R717 (ammonia), R744 (CO2) and HFC/HCFC refrigerants Weight: net 1.119 kg, gross 1.348 kg Coil: ordered separately Approvals: EAC EAN: 5702422128533 Net weight: 1.119 Kilogram Product group: Solenoid valves Actuator system [mm]: 13.5 mm Ambient temperature: -40 - 80 °C Ambient temperature range [°F] [max]: 175 °F Ambient temperature range [°F] [min]: -40 °F Approval: EAC China RoHS compliance: Yes Connection Code: (2501:D23:15) Connection material: Stainless steel Cv value [gal/min]: 1.7 gal/min Direction: Straightway EU RoHS compliance: Yes Flow direction indicator: Embossed 1-way arrow Inlet connection standard: EN 10220 Inlet connection type: Butt weld Inlet size [in]: 1/2 in Kv value [m³/h]: 1.5 m³/h Manual operation option: Yes Max. Working Pressure [bar]: 50 bar Max. Working Pressure [psig]: 725 psig MaxOPD[bar] 10W AC: 21 bar MaxOPD[bar] 12W AC: 25 bar MaxOPD[bar] 20W DC: 18 bar Medium temp. range note: Defrost max 130°C/265°F Medium temperature range [°C] [max]: 105 °C Medium temperature range [°C] [min]: -40 °C Medium temperature range [°F] [max]: 221 °F Medium temperature range [°F] [min]: -40 °F MinODP [bar]: 0.05 bar Orifice size [mm]: 18 mm Outlet connection standard: EN 10220 Outlet connection type: Butt weld Outlet size [in]: 1/2 in REACH Candidate List substances: No Refrigerants: R502 Type designation: Solenoid valve
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 1/2 in
- Material
- Stainless steel body
- Pressure Rating
- 50 bar
- Temperature Range
- -40 to 105 °C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss EVRS 10 refrigeration solenoid valve. Coil is ordered separately — match coil voltage/frequency and connector to the installation. Refrigerant and pressure compatibility per the Danfoss data sheet; verify against your system specification before ordering.
