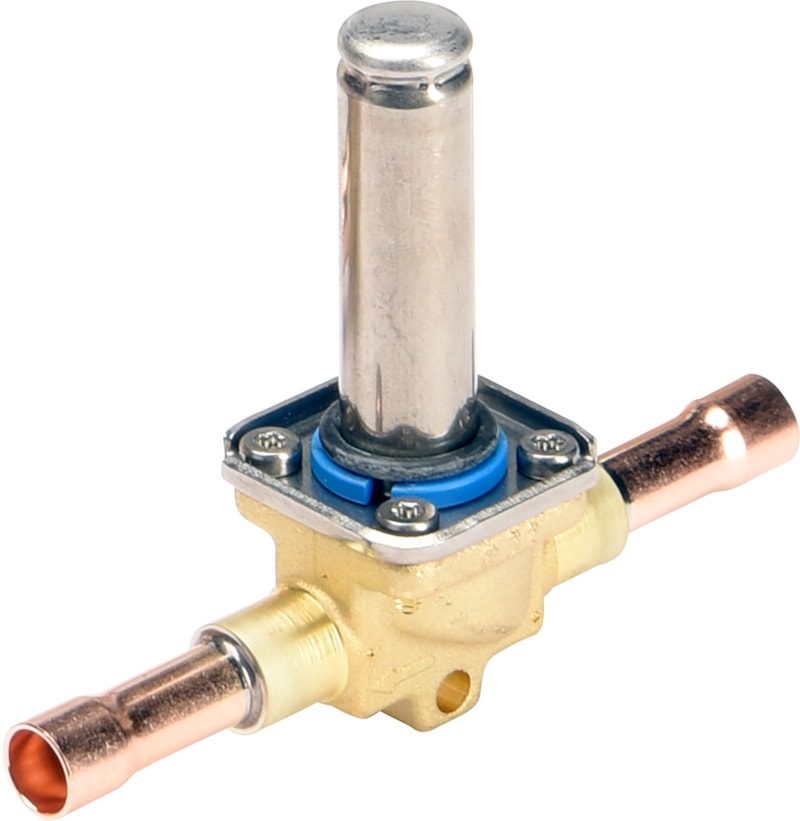

Danfoss EVR 6 Solenoid Valve 3/8 ODF 24VDC
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EVR 6 solenoid valve. 3/8 ODF solder. Normally closed. Refrigerant compatibility listed. Verify with your system spec. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Approval
- CE, EAC, PED 2014/68/EU, EN 12178, EN 12284, UL
- Standards
- EN 12178, EN 12284
- Approvals
- CE, UL, EAC, PED
- HS code
- 8481.80
- Voltage
- 24 V DC
- MPN
- 032L1209
- EAN
- 5702428952910
- Net weight
- 0.19 Kilogram
- Type
- EVR 6
- Product group
- Solenoid valves
- Actuator system [mm]
- 13.5 mm
- Ambient temperature
- -40 - 80 °C
- Ambient temperature range [°F] [max]
- 175 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Body material
- Brass
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Coil
- No
- Connection Code
- (3002:X:13)
- Cv value [gal/min]
- 1.15 gal/min
- Direction
- Straightway
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Fluid Group
- 1
- Function
- NC
- Identical product
- 032L7308
- Inlet connection type
- Solder, ODF
- Inlet size [in]
- 1/2 in
- Kv value [m³/h]
- 1 m³/h
- Lubricants compatibility
- AB
- Manual operation option
- No
- Max. Working Pressure [bar]
- 45.2 bar
- Max. Working Pressure [psig]
- 655 psig
- MaxOPD[bar] 10W AC
- 38 bar
- MaxOPD[bar] 20W DC
- 28 bar
- MaxOPD[bar] coil BJ/BX
- 38 bar
- MaxOPD[psi] 10W AC
- 550 psi
- MaxOPD[psi] 20W DC
- 406 psi
- MaxOPD[psi] coil BJ/BX
- 550 psi
- Medium temp. range note
- Defrost max 130°C/265°F
- Medium temperature range [°C] [max]
- 105 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 221 °F
- Medium temperature range [°F] [min]
- -40 °F
- MinODP [bar]
- 0.03 bar
- MinODP [psi]
- 0.44 psi
- MOPD[bar/psi]
- Coil Dependent
- MWP [bar] PED compliant
- 49 bar
- Orifice size [mm]
- 6 mm
- Outlet connection type
- Solder, ODF
- Outlet size [in]
- 1/2 in
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R1234yf
- Type designation
- Solenoid valve, Solder
- UL approved refrigerants
- R125
- UL mark
- Yes
- Valve operation
- Servo-diaphragm
Standards & Compliance
- Classification / Approval
- CE, EAC, PED 2014/68/EU, EN 12178, EN 12284, UL
- HS Code
- 8481.80
Compatibility & Fitment
Refrigerant compatibility listed. Verify with your system spec.
