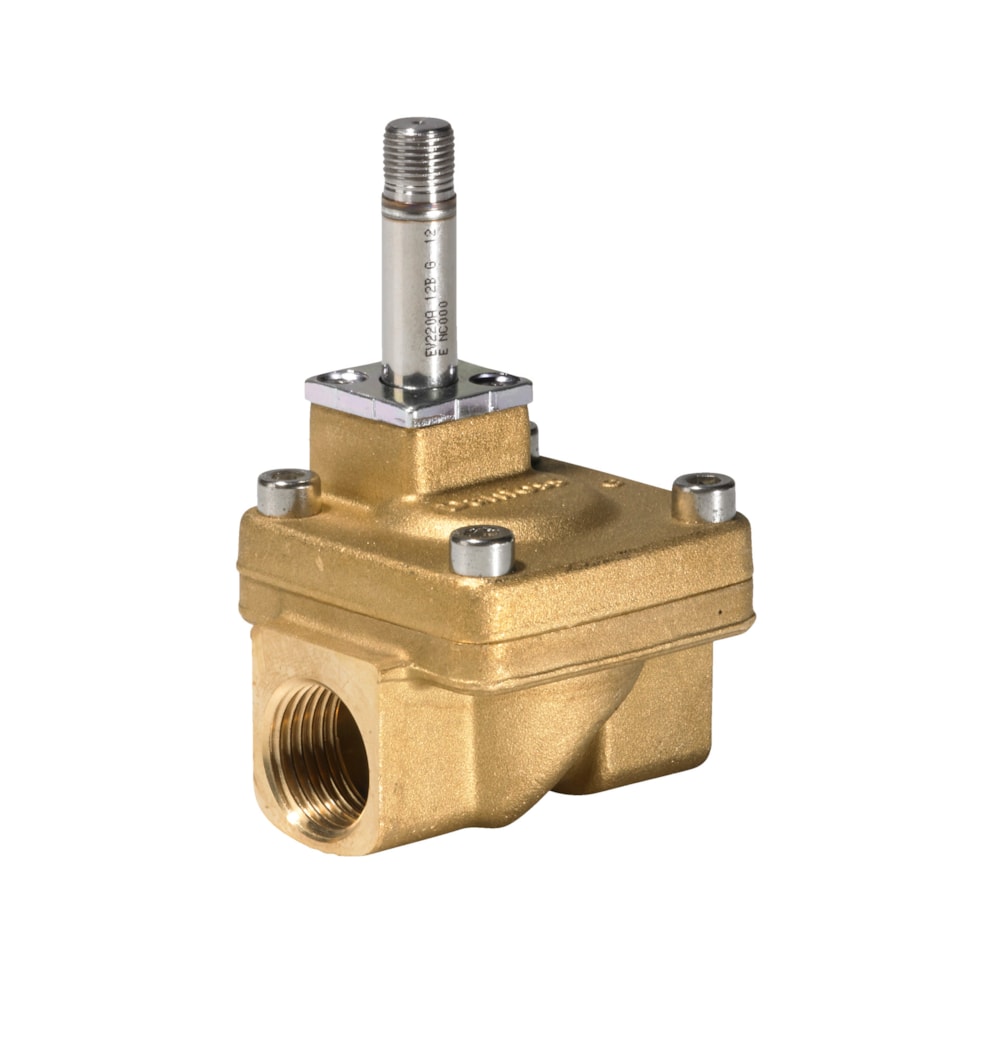

Danfoss solenoid valve EV220A, EPDM — 1/2", EPDM, 0,2-16bar, NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss solenoid valve EV220A, EPDM — 1/2", EPDM, 0,2-16bar, NC. Reference part number 042U4012.
Technical Specifications
- Code number
- 042U4012
- EAN
- 5702423106530
- Net weight
- 0.432 Kilogram
- Actuator
- A
- Actuator size
- 9 mm
- Actuator size [in]
- 0.35 in
- Actuator system [mm]
- 9.0 mm
- Ambient temperature max. [°C]
- 50 °C
- Application
- Open
- Approval
- WRAS
- Body material
- Brass
- China RoHS exemption clause
- 7.3
- Connection Internal/External
- Internal
- Connection material
- Brass
- Connection size [in]
- 1/2
- Connection standard
- ISO 228-1
- Connection type
- G
- Cv value [gal/min]
- 1.850 gal/min
- Est. time to close, water [ms]
- 300 ms
- Est. time to open, water [ms]
- 50 ms
- EU RoHS compliance
- Yes with exemptions
- Flow direction
- Single-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Function
- NC
- Kv value [m³/h]
- 1.600 m³/h
- Max media viscosity [cSt]
- 50 cSt
- Max. test pressure [bar]
- 24.0 bar
- Max. Working Pressure [bar]
- 16.0 bar
- Media recommendations
- Water & Brine
- Media tolerance comments
- Neutral media
- Number of ways
- 2/2
- Operation
- Servo-operated (diaphragm)
- Orifice size [mm]
- 10.00 mm
- Orifice size fraction [in]
- 3/8 in
- Parts Program name
- EV220A
- Product accessories
- Solenoid valve accessories
- Product group
- Solenoid valves
- Product line
- Air Conditioning and Commercial Refrigeration
- Product Type
- EV220A
- Seal Material
- EPDM
- Serviceable
- Solenoid valve spare parts
- Specification key
- EV220A 10B G 12E NC000
- Type designation
- EV220A 10
- Differential pressure [bar]
- 0.200 bar … 16.000 bar
- Medium temperature range [°C]
- -30 °C … 100 °C
- Operating pressure
- 0.2–16 bar
- Process connection
- 1/2 in
- Gross weight
- 0.459 Kilogram
- Volume
- 0.338 Liter
- Type
- EV220A
- Product Name Description
- Solenoid valve
