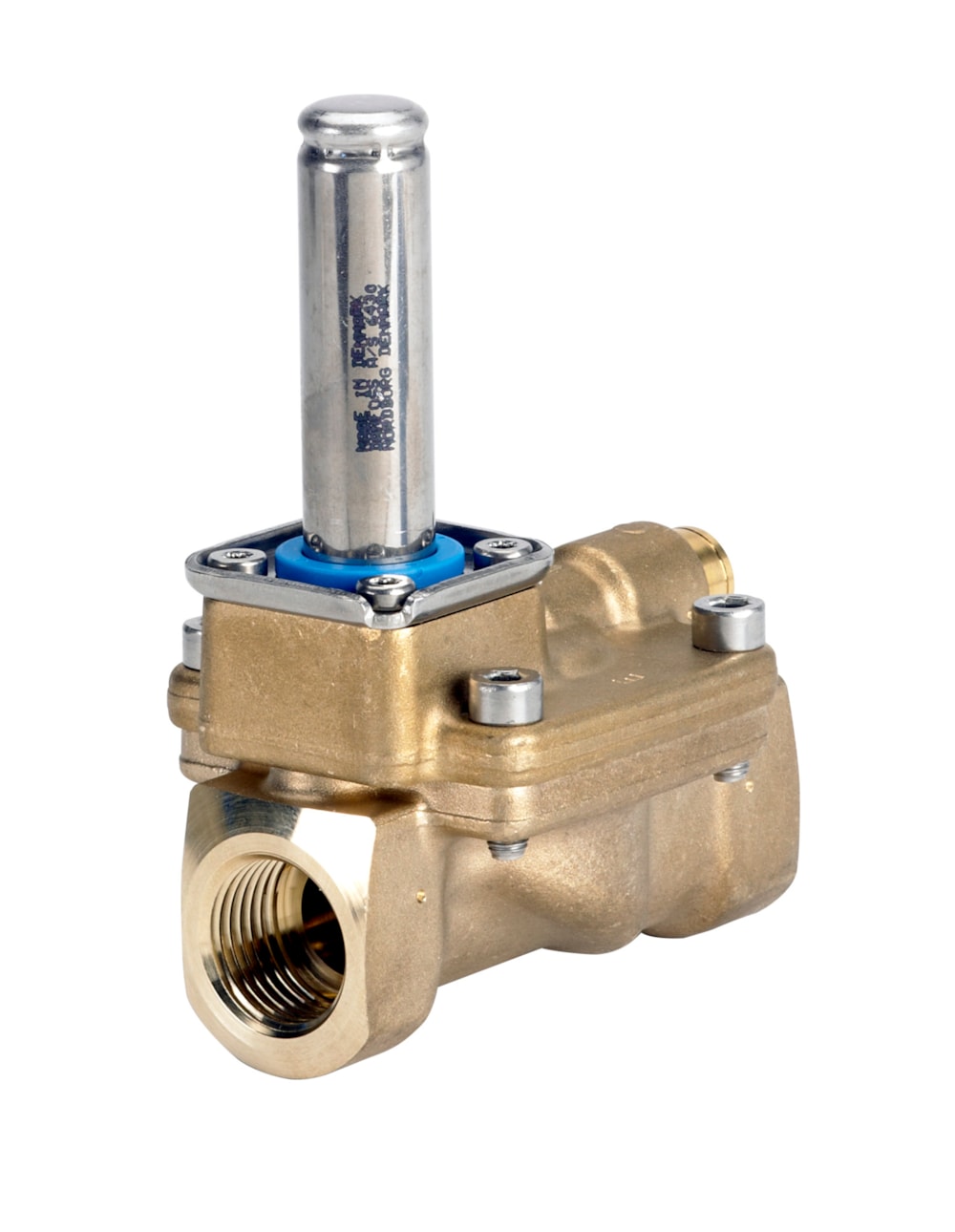

Danfoss solenoid valve EV220BW, NC — R3/4", 0,3/10bar, ECO-brass
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss solenoid valve EV220BW, NC — R3/4", 0,3/10bar, ECO-brass. Reference part number 132U2000.
Technical Specifications
- Code number
- 132U2000
- EAN
- 5702428508735
- Net weight
- 0.864 Kilogram
- Actuator
- BW
- Actuator size
- 13.5 mm
- Actuator size [in]
- 0.53 in
- Actuator system [mm]
- 13.5 mm
- Ambient temperature max. [°C]
- 80 °C
- Application
- Open
- Approval
- ACS; PZH; RISE; SINTEF; WRAS
- Body material
- Eco brass
- China RoHS exemption clause
- No
- Connection Internal/External
- Internal
- Connection material
- Eco brass
- Connection size [in]
- 3/4
- Connection standard
- ISO 228-1
- Connection type
- G
- Cv value [gal/min]
- 9.250 gal/min
- EPD available
- Yes
- Est. time to open, water [ms]
- 40 ms
- EU RoHS compliance
- Yes
- Flow direction
- Single-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Function
- NC
- Inlet connection standard
- ISO 228-1
- Inlet connection type
- G
- Inlet Internal/External
- Internal
- Inlet size [in]
- 3/4 in
- Kv value [m³/h]
- 8.000 m³/h
- Max media viscosity [cSt]
- 50 cSt
- Max. test pressure [bar]
- 15.0 bar
- Max. Working Pressure [bar]
- 10.0 bar
- Media recommendations
- Drinking Water&Heating ECO/SS
- Media tolerance comments
- Slightly aggressive media
- Number of ways
- 2/2
- Open/close equalizing orifice
- Optional Equalization orifice
- Operation
- Servo-operated (diaphragm)
- Orifice size [mm]
- 20.00 mm
- Orifice size fraction [in]
- 3/4 in
- Outlet connection standard
- ISO 228-1
- Outlet connection type
- G
- Outlet Internal/External
- Internal
- Outlet size [in]
- 3/4 in
- Parts Program name
- EV220BW 15 - 50
- Product accessories
- Solenoid valve accessories
- Product group
- Solenoid valves
- Product line
- Air Conditioning and Commercial Refrigeration
- Product Type
- EV220BW
- Seal Material
- EPDM
- Serviceable
- Solenoid valve spare parts
- Specification key
- EV220BW 20BE G 34E NC000
- Type designation
- EV220BW 20
- Differential pressure [bar]
- 0.300 bar … 10.000 bar
- Medium temperature range [°C]
- -30 °C … 90 °C
- Operating pressure
- 0.3–10 bar
- Material
- Brass
- Gross weight
- 0.907 Kilogram
- Volume
- 0.88 Liter
- Type
- EV220BW
- Product Name Description
- Solenoid valve
Standards & Compliance
- HS Code
- 8481.80
Cross References
- EAN 5702428508735
Product Documentation
More from Danfoss
Danfoss
Danfoss solenoid valve EV225B 10, NC — R1/2", 0,3/10bar, m/ 230VOLT Coil
032U380431
Danfoss
Solenoid valve, EV220X, Function: External — control, G, 3/4, 8.00 m³/h, EPDM
032U7191
Danfoss
Danfoss solenoid valve EV225B 25, NC — 1", 0,3/10 bar, PTFE
032U3807
Danfoss
Danfoss solenoid valve EV220BW — G, 1/2, 4.000 m³/h, EPDM
132U1500
Danfoss

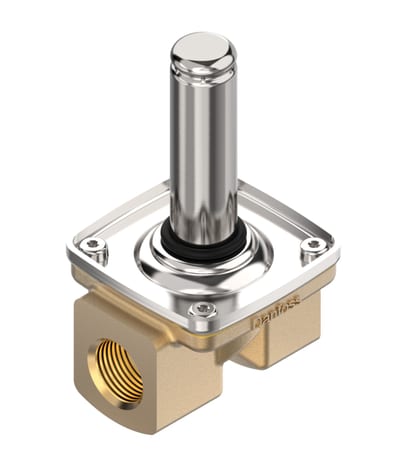

Danfoss solenoid valve EV221BW, NC — R1/2", 0,1/10bar, ECO-brass
