Product Description

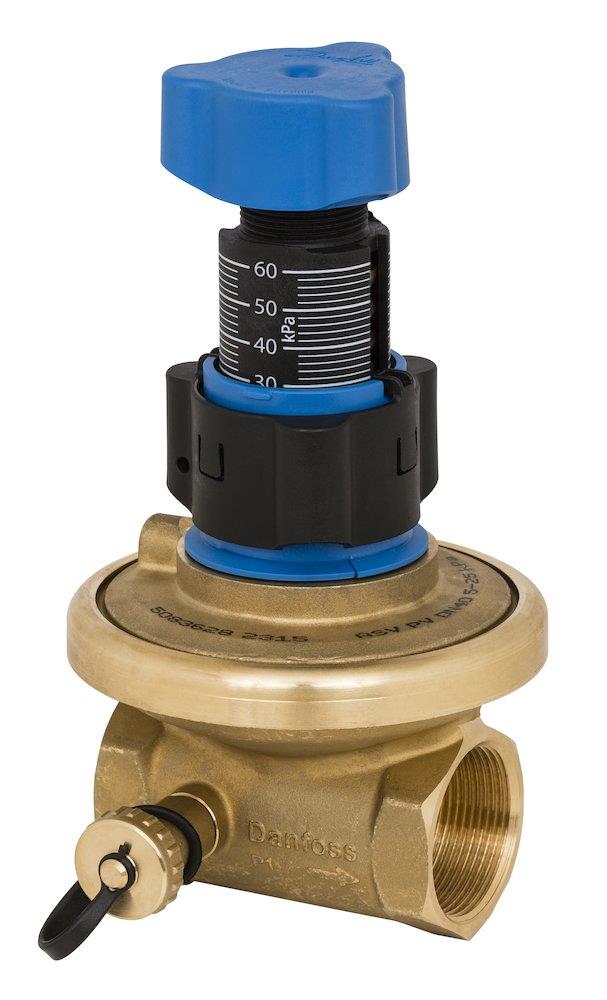

Danfoss ASV-PV-4G Balancing Valve. Control valves and accessories (Plumbing / Heat / Valves for heating and cooling systems). Principal data: dn dimension 40, connection Socket/socket, thread 1 1/2", cable length 1.5 m. Supplied under manufacturer part number 003Z5545, EAN 5710104083551, HS code 8481.80, country of origin Denmark.
Technical Specifications
- Product type
- Control valves and accessories
- Product group
- Heat
- DN dimension
- 40
- Connection
- Socket/socket
- Thread
- 1 1/2"
- Cable length
- 1.5 m
- Kvs value
- 10 m³/h
- Media temperature min
- 0 °C
- Media temperature max
- 120 °C
- Working pressure max
- 16 bar
- Material
- Brass
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 17.2861 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84818059
- HS code
- 8481.80
- Manufacturer part number
- 003Z5545
- GTIN (EAN)
- 5710104083551
- VVS number
- 406853712
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 003Z5545
- EAN 5710104083551
- VVS 406853712
