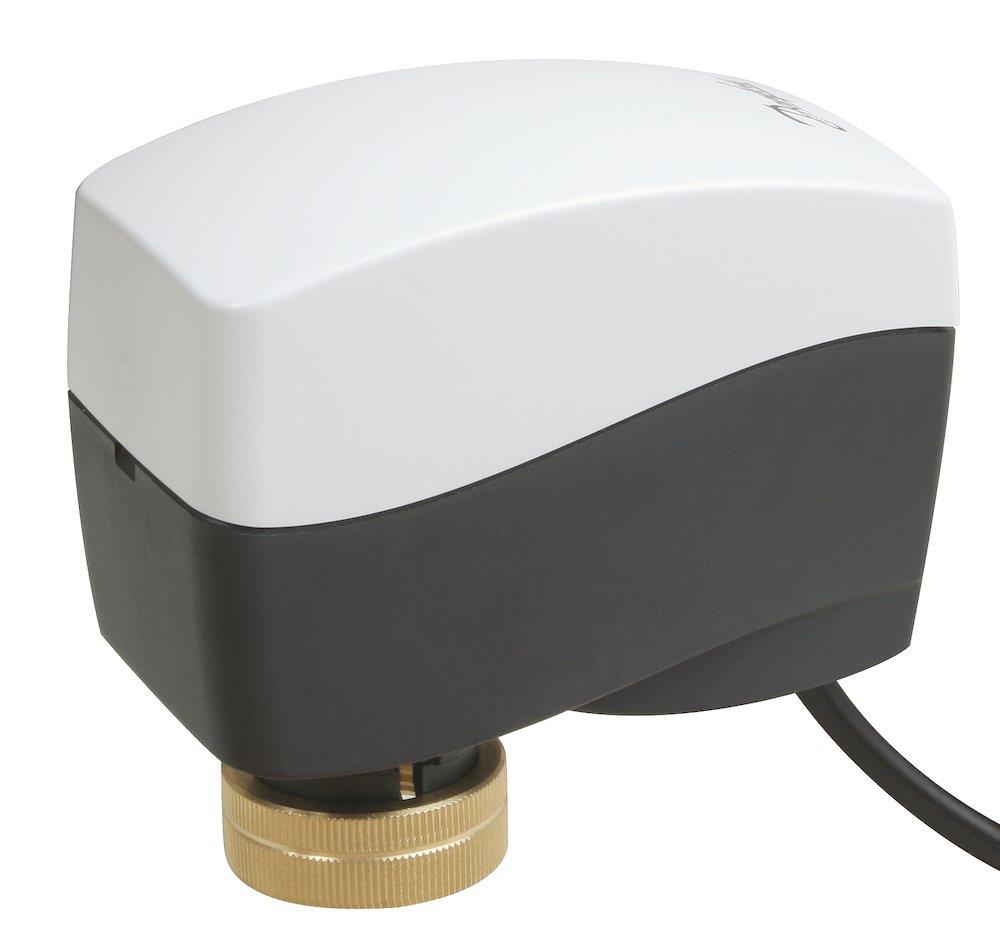

Danfoss AMV 130 Gear Motor 3-Point - 24V AC, 24MM/s
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AMV 130 Gear Motor 3-point. Engines/thermal engines (Plumbing / Heat / Valves for heating and cooling systems). Principal data: supply voltage 24 V AC, speed 24 mm/s. Supplied under manufacturer part number 082H8036, EAN 5702421551837, HS code 8501.10, country of origin Slovenia.
Technical Specifications
- Product type
- Engines/thermal engines
- Product group
- Heat
- Supply voltage
- 24 V AC
- Speed
- 24 mm/s
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 4.4284 kg CO2e per pcs
- Country of origin
- Slovenia
- Customs tariff code (EU CN)
- 85011093
- HS code
- 8501.10
- Manufacturer part number
- 082H8036
- VVS number
- 460948030
- EAN
- 5702421551837
- Net weight
- 0.34 Kilogram
- Type
- AMV 130
- Actuator speed [s/mm]
- 24 s/mm
- Actuator type
- Electrical
- Ambient temperature [°C] [max]
- 55 °C
- Ambient temperature [°C] [min]
- 0 °C
- Application
- fan coils
- Cable included
- Yes
- Cable length [m]
- 1.5 m
- China RoHS compliance
- Out of scope
- Closing force [N]
- 200 N
- Compatibility with valve
- VZ DN 15-20
- Control input signal Y [mA]
- N/A
- Control input signal Y [V]
- N/A
- Control signal type
- 3-point
- Description
- AMV 130 24V 24s/mm 5,5mm 200N
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- IP protection class
- IP42
- Manual operation
- Yes
- Position feedback
- no - potentiometer needed
- Power consumption [W]
- 1 W
- Protection Class of the Coating
- II
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Safety function
- No
- Speed type
- Standard
- Spring down (return)
- No
- Spring up
- No
- Storage temperature [°C] [Max]
- 70 °C
- Storage temperature [°C] [Min]
- -40 °C
- Stroke [mm]
- 5.5 mm
- Supply voltage [V]
- 24 V AC
- Turn time per 90° [s]
- 0 "
Standards & Compliance
- HS Code
- 8501.10
Cross References
- MPN 082H8036
- EAN 5702421551837
- VVS 460948030
Product Documentation
More from Danfoss
Danfoss

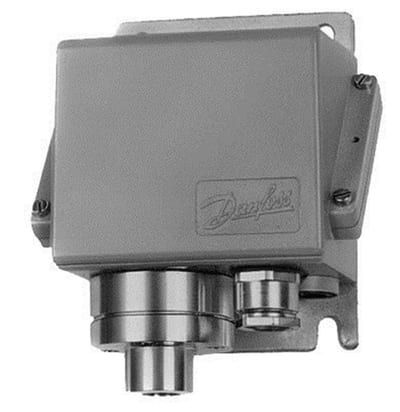

Danfoss Pressure Switch - 10062469
Danfoss

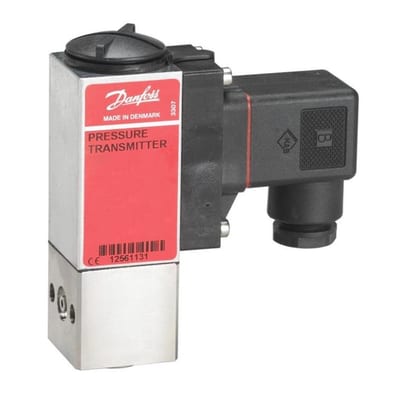

Danfoss MBS 5150 Pressure Transmitter - 1/4", 0-25bar
060N1085
Danfoss

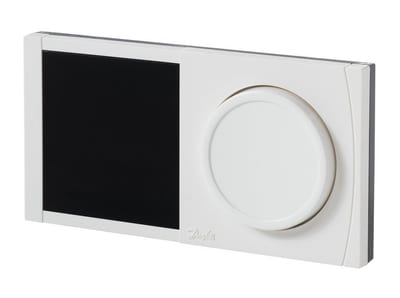

Danfoss ECA 31 Remote Control - ECL Comfort 210/310
087H3201
Danfoss

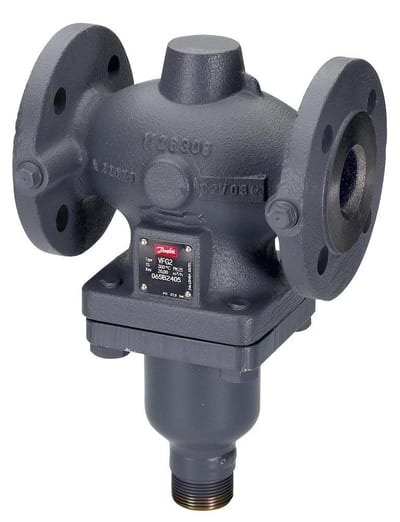

Danfoss VFG 2 Valve Body with flanges - 80M³/h, 80 4007093
Danfoss

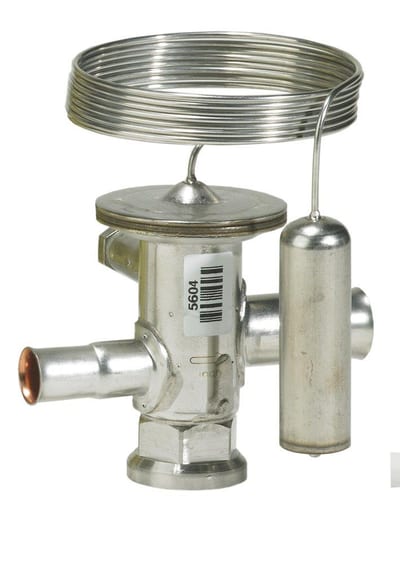

Danfoss TUA Thermostatic expansion valve solder/solder - R134A, External, -40-10°C, TUAE R134A/R513
068U2207
Danfoss

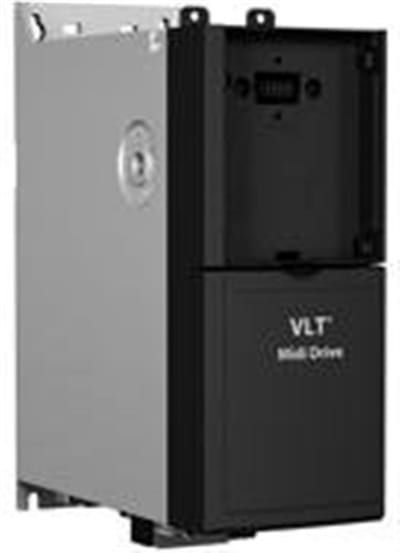

Danfoss FC 280 Midi Drive VLT frequency converter with brake chopper - IP 20, 3X400V, 0.55kW
2365120018
Danfoss

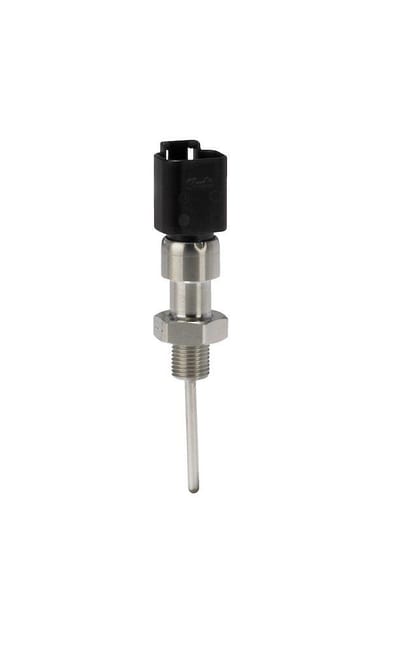

Danfoss MBT 3270 Sensor - 40mm
084Z2019
Danfoss

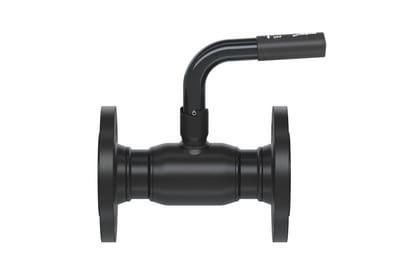

Danfoss JIP-FF Ball Valve with handle - 50mm, steel
