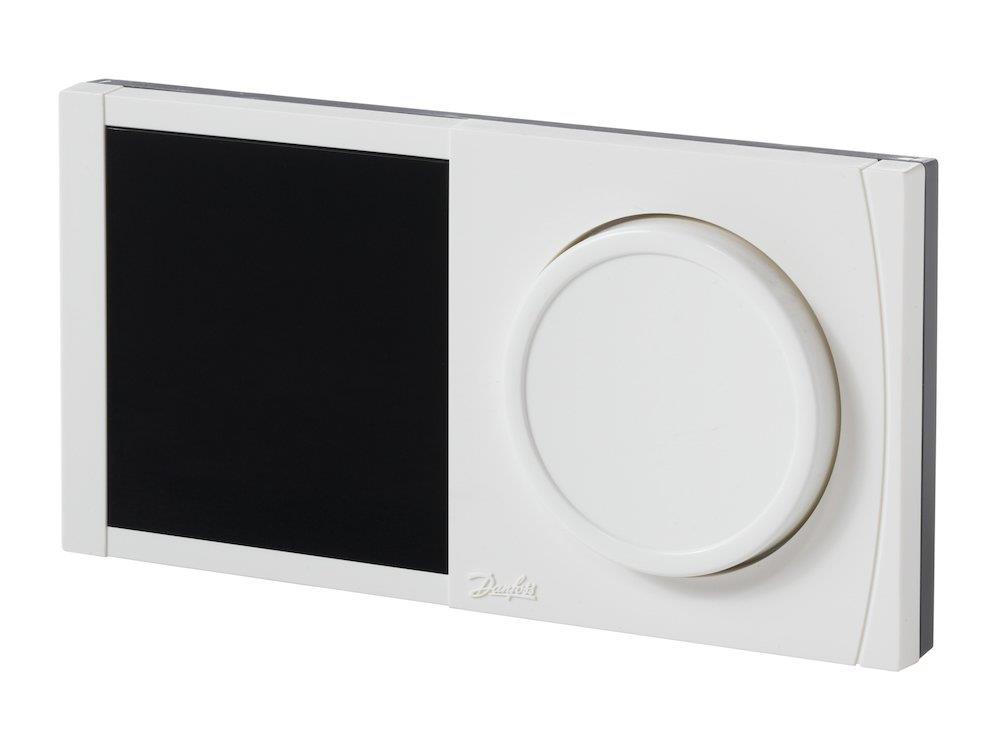

Danfoss ECA 31 Remote Control - ECL Comfort 210/310
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ECA 31 Remote Control. Weather compensation system (Plumbing / Heat / Valves for heating and cooling systems). Principal data: fits with ECL Comfort 210/310. Supplied under manufacturer part number 087H3201, EAN 5710104038216, HS code 8481.90, country of origin Denmark.
Technical Specifications
- Product type
- Weather compensation system
- Product group
- Heat
- Fits with
- ECL Comfort 210/310
- Leakage class
- IP 20
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 1.5130 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84819000
- HS code
- 8481.90
- Manufacturer part number
- 087H3201
- VVS number
- 460944731
- EAN
- 5710104038216
- Net weight
- 0.14 Kilogram
- Type
- ECA 31
- Ambient temperature [°C] [max]
- 55 °C
- Ambient temperature [°C] [min]
- 0 °C
- Approval
- CE
- Approval standard
- EMC-Directive: 2004/108/EC
- Bus cable length [m]
- 20 m
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Description
- ECA 31
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS compliance
- Yes with exemptions
- Grade of enclosure
- IP20
- In scope of WEEE
- Yes
- Mounting version
- Vertically, on wall or in panel cut-out
- Power consumption [W]
- 1 W
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Storage temperature [°C] [Max]
- 70 °C
- Storage temperature [°C] [Min]
- -40 °C
- Transport temperature [°C] [Max]
- 70 °C
- Transport temperature [°C] [Min]
- -40 °C
Standards & Compliance
- HS Code
- 8481.90
Cross References
- MPN 087H3201
- EAN 5710104038216
- VVS 460944731
Product Documentation
