Product Description

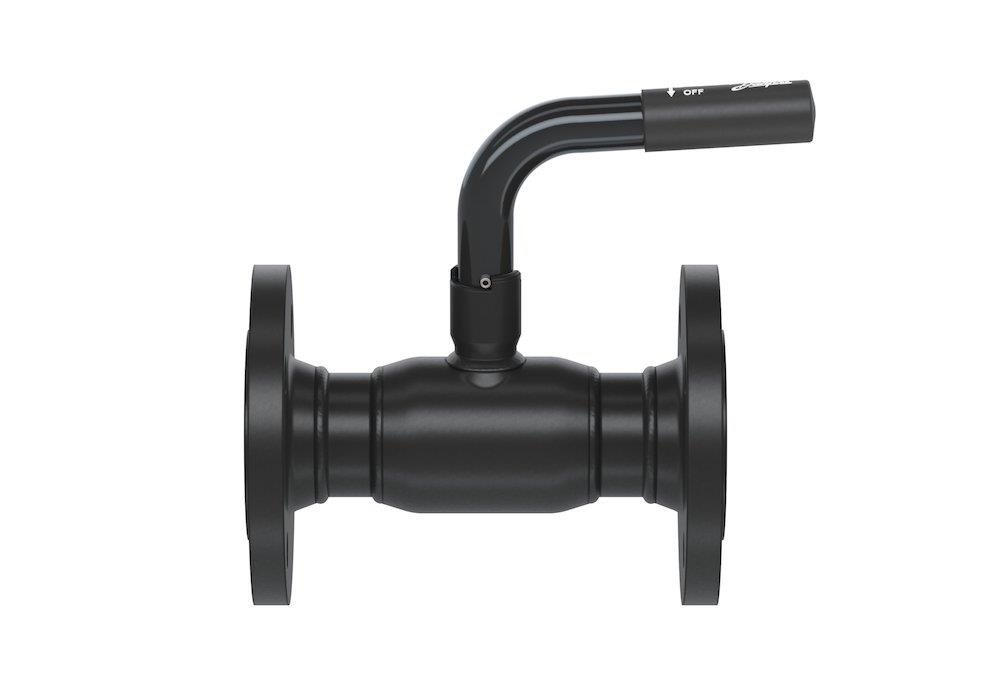

Danfoss JIP-FF Ball Valve with handle. Steel ball taps (Plumbing / Plumbing Valves). Principal data: pipe dimension 50 mm, material steel. Supplied under manufacturer part number 065N0325, EAN 5702421650189, HS code 8481.80, country of origin Denmark.
Technical Specifications
- Product type
- Steel ball taps
- Product group
- Plumbing Valves
- Pipe dimension
- 50 mm
- Material
- steel
- Pressure PN
- 40 bar
- Length built-in dimension
- 230 mm
- DN dimension
- 50
- Kvs value
- 112 m³/h
- Carbon footprint (EPD)
- 81.8681 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84818081
- HS code
- 8481.80
- Manufacturer part number
- 065N0325
- VVS number
- 418715012
- EAN
- 5702421650189
- Net weight
- 7.35 Kilogram
- Type
- JIP-FF, RB, Handle
- Ambient temperature [°C] [min]
- -40 °C
- Application
- Heating and cooling
- Approval standard
- EN 12266 part 1 P10-P11-P12 & part 2 F20
- Body material
- Weldable steel #20 or similar CE PED approved material
- China RoHS compliance
- Out of scope
- Cone /seat sealing material
- PTFE+C
- Connection types
- Flange
- Description
- JIP-FF DN 50 PN40 L hi L230
- Differential pressure range [bar] [Max]
- 40 bar
- EU RoHS compliance
- Out of scope
- Flanges material
- EN1092-Weldable steel #20 or similar CE PED approved material
- Function
- On/off
- Kvs values [m³/h]
- 184 m³/h
- Leakage rate [% Kvs]
- Leakage rate A
- Length [mm]
- 230 mm
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 180 °C
- Media temperature [°C] [Min]
- 0 °C
- Medium alternative
- Glycolic water up to 50%
- Mounting orientation
- All
- Number of ports
- 2
- Operation type
- Handle
- Permissible media
- District heating/cooling circulation water
- Pressure class
- PN 40
- REACH Candidate Strip substances
- No
- Rotation angle [°]
- 90 °
- Stem sealing material
- PTFE/Graphite
- Storage temperature [°C] [Min]
- -40 °C
- Valve ball material
- Stainless steel
- Valve body material
- Weldable steel #20 or similar CE PED approved material
- Valve size
- DN 50
- Valve stem material
- Stainless steel e.g. X2CrNi19-11 (EN10272) / Mat. no. 1.4306
- Valve type
- Reduced Bore
- Welding ends material
- Weldable steel #20 or similar CE PED approved material
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 065N0325
- EAN 5702421650189
- VVS 418715012
Product Documentation
More from Danfoss
Danfoss
Danfoss MBS 33 Pressure Transmitter - 1/2", 0-6bar 10011804
060G1226
Danfoss
Danfoss TWA-V Thermo Actuator - Closed (NC), 230 V AC
1474055
Danfoss

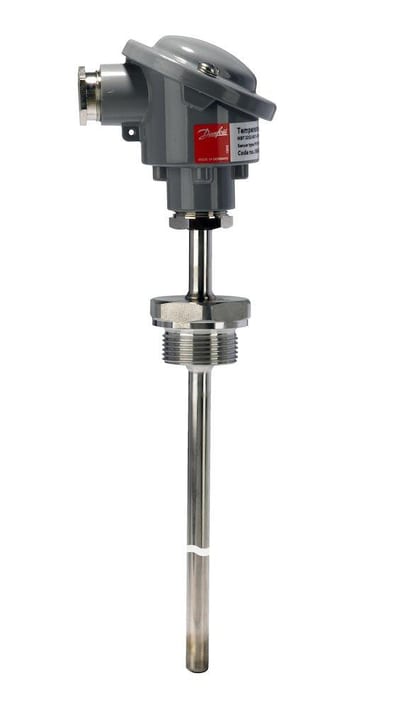

Danfoss MBT 5252 Sensor - 1/2", 0°C, 100°C, 150mm
10248065
Danfoss

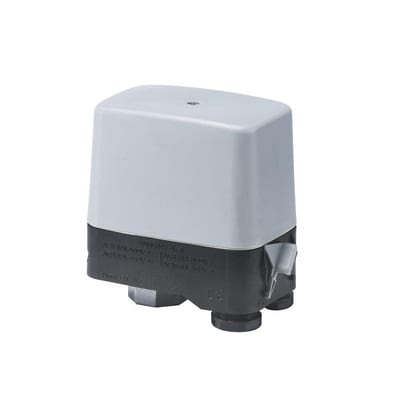

Danfoss CS Pressure Switch - 4-12bar
031E022566
Danfoss

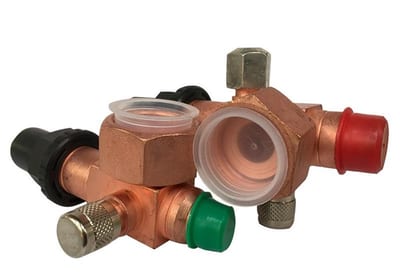

Danfoss Rotalock Valve Set - 1 1/4" Rotalock x 3/4" solder, 1 3/4" Rotalock x 1 1/8" solder
7703009
Danfoss

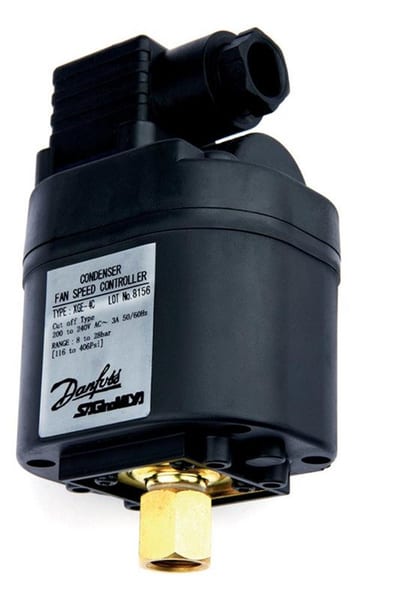

Danfoss XGE Fan speed controller - 20-55°C, 22-39bar, 7bar, 28bar, 3A, 1, XGE-6C
061H3160
Danfoss
Danfoss Cable Plug 230V - 018F coil type B, 018Z coil type B, 042N coil type B
042N0265
Danfoss

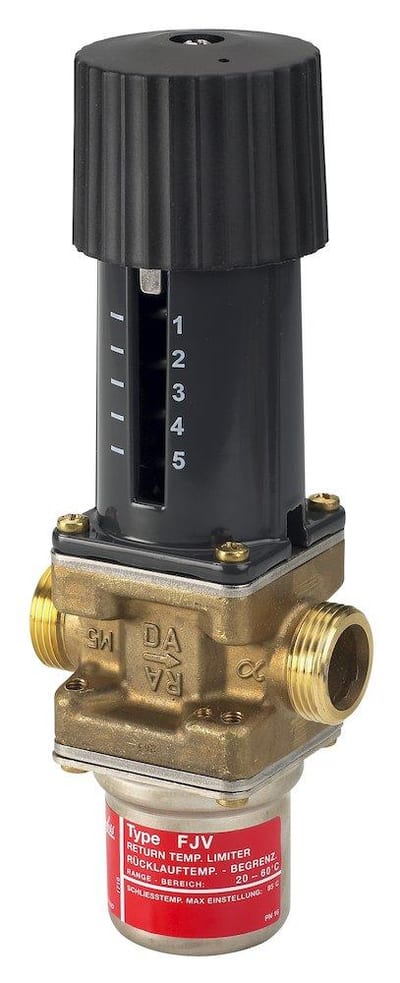

Danfoss FJV 15 Return Flow Thermostat with nipple connection - 20°C, 50°C, 1M³/h
