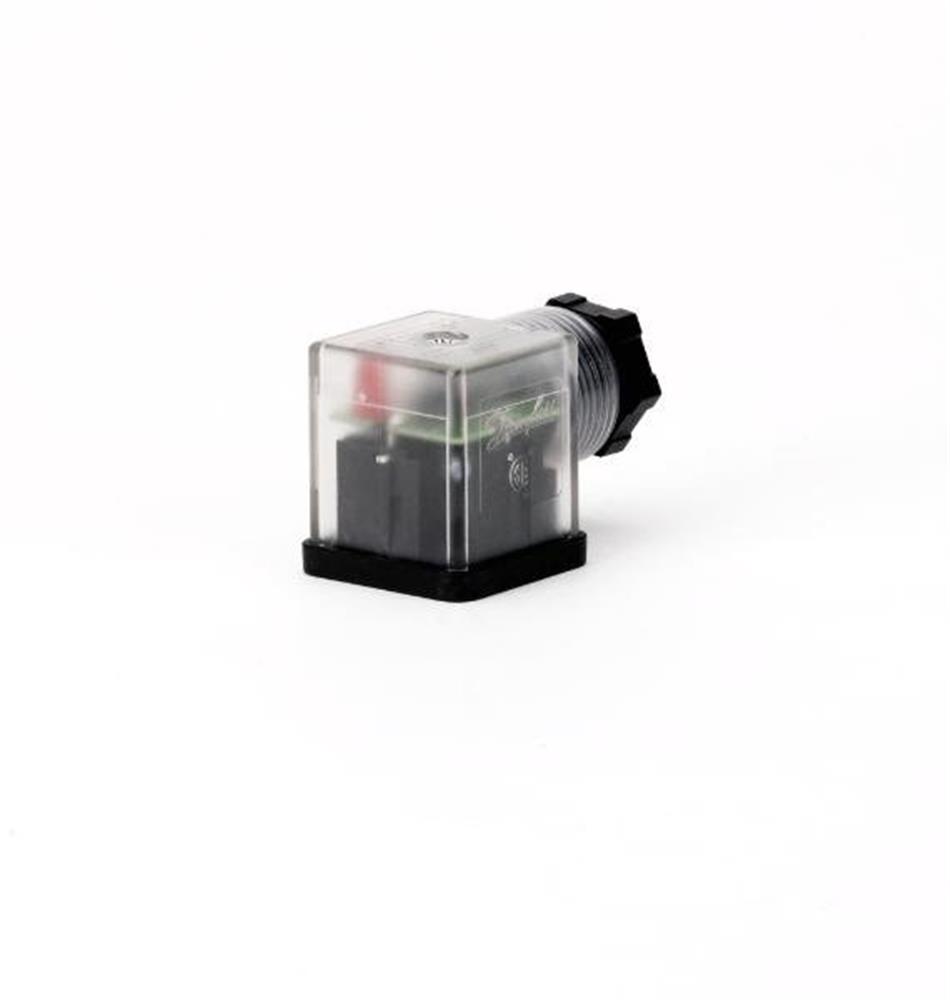

Danfoss Cable Plug 230V - 018F coil type B, 018Z coil type B, 042N coil type B
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss Cable Plug 230V. Spare parts and accessories for solenoid valves (Plumbing / Heat / Valves for heating and cooling systems). Supplied under manufacturer part number 042N0265, EAN 5702423205899, HS code 8536.69, country of origin Poland.
Technical Specifications
- Product type
- Spare parts and accessories for solenoid valves
- Product group
- Heat
- Used for
- 018F coil type B, 018Z coil type B, 042N coil type B
- Carbon footprint (EPD)
- 0.2277 kg CO2e per pcs
- Country of origin
- Poland
- Customs tariff code (EU CN)
- 85366990
- HS code
- 8536.69
- Manufacturer part number
- 042N0265
- VVS number
- 470198130
- EAN
- 5702423205899
- Net weight
- 0.026 Kilogram
- Type
- Spare part
- Ambient temperature range [°C] [max]
- 90 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 194 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- CE
- Body type
- Translucent
- Cable diameter [in] [max]
- 0.32 in
- Cable diameter [in] [min]
- 0.24 in
- Cable diameter [mm] [max]
- 8 mm
- Cable diameter [mm] [min]
- 6 mm
- CE mark
- Yes
- China RoHS compliance
- Yes
- Conductor size, max. [mm2]
- 1.5 mm²
- Contact material
- CuZn (Cu/Sn plated)
- Contact resistance max. [mOhm]
- 15 mOhm
- Contacts
- 2 + PE
- Electrical connection form
- Form A
- Electrical connection standard
- EN 175301-803
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes
- Gasket material
- NBR
- Gasket type
- Profiled
- LED colour
- Red
- Operating current max. [A]
- 16 A
- REACH Candidate Strip substances
- No
- Supply voltage [V] AC
- 230 V
- Supply voltage [V] DC
- 230 V
- Tolerance
- ± 10%
- Type designation
- Cable plug
- Used for product
- 018F Coil Type B
Standards & Compliance
- HS Code
- 8536.69
Cross References
- MPN 042N0265
- EAN 5702423205899
- VVS 470198130
Product Documentation
More from Danfoss
Danfoss
Danfoss FJV 15 Return Flow Thermostat with nipple connection - 20°C, 50°C, 1M³/h
003N5117
Danfoss
Danfoss VM 2 Seat Valve 2-Way - 25, 1 1/4", Nipple, 8M³/h
2550804
Danfoss
Danfoss VFG 2 Valve Body with flanges - 125M³/h, 100
10023647
Danfoss
Danfoss MBT 5250 Sensor - 1/2", 50mm
10248052
Danfoss
Danfoss Nut
032U0079
Danfoss
Danfoss RGE Fan speed controller - 20-55°C, 8-28bar, 4bar, 19bar, 4A, 1, RGE-Z1N4-7DS
061H3005
Danfoss

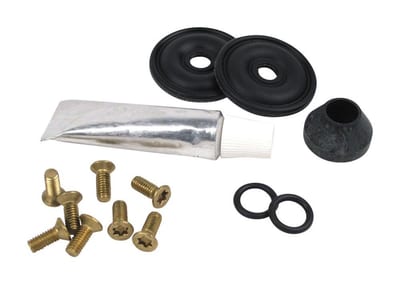

Danfoss Repair Kit - FJV, AVTA, AVTB
003N4006
Danfoss

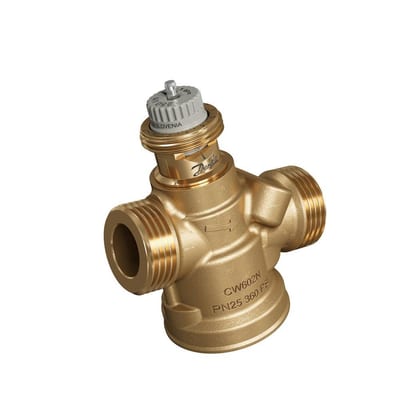

Danfoss AVQML Flow Limiter - 15, Nipple/nipple, 3/4" 10463073
