Danfoss RGE Fan speed controller - 20-55°C, 8-28bar, 4bar, 19bar, 4A, 1, RGE-Z1N4-7DS
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RGE Fan speed controller. Fan speed controller (Refrigeration technology / Cooling technical components / Pressure monitoring). Principal data: ambient temperature -20-55 °C, regulating range 8-28 bar, p-band 4 bar, factory setting 19 bar. Supplied under manufacturer part number 061H3005, EAN 5702428275811, HS code 9032.89, country of origin Japan.
Technical Specifications
- Product type
- Fan speed controller
- Product group
- Cooling technical components
- Ambient temperature
- -20-55 °C
- Regulating range
- 8-28 bar
- P-band
- 4 bar
- Factory setting
- 19 bar
- Maximum operating current
- 4 A
- Number of phases
- 1
- Type designation
- RGE-Z1N4-7DS
- Sales unit
- Pack
- Carbon footprint (EPD)
- 6.0992 kg CO2e per pcs
- Country of origin
- Japan
- Customs tariff code (EU CN)
- 90328900
- HS code
- 9032.89
- Manufacturer part number
- 061H3005
- EAN
- 5702428275811
- Net weight
- 0.5 Kilogram
- Type
- RGE
- Ambient temperature range [°C] [max]
- 55 °C
- Ambient temperature range [°C] [min]
- -20 °C
- Ambient temperature range [°F] [max]
- 131 °F
- Ambient temperature range [°F] [min]
- -4 °F
- Approval
- CE
- Burst pressure [bar]
- 131 bar
- Burst pressure [psig]
- 1900 psig
- Capillary tube length [in]
- 35.4 in
- Capillary tube length [mm]
- 900 mm
- CE mark
- Yes
- China RoHS compliance
- Yes
- Enclosure rating IP
- IP54
- EU RoHS compliance
- Yes
- Factory setting [bar]
- 19 bar
- Factory setting [psig]
- 276 psig
- Frequency [Hz]
- 50/60 Hz
- Housing
- Closed
- Max. current output/phase [A]
- 4 A
- Max. Working Pressure [bar]
- 47 bar
- Max. Working Pressure [psig]
- 681 psig
- Min speed setting [%]
- 35%@60Hz
- Number of terminals [pcs]
- 4 pc
- P band max. [bar]
- 4 bar
- P band max. [psi]
- 58 psi
- Pressure connection notes
- with Schrader
- Pressure inlet conn. size [in]
- 1/4
- Pressure inlet conn. std.
- DIN 8906
- Pressure inlet conn. type
- Flare
- Pressure inlet Female/Male
- Internal
- REACH Candidate Strip substances
- No
- Refrigerants
- R134a
- Regulation range [bar] Pe [max]
- 28 bar
- Regulation range [bar] Pe [min]
- 8 bar
- Regulation range [MPa] Pe [max]
- 2.8 MPa
- Regulation range [MPa] Pe [min]
- 0.8 MPa
- Regulation range [psig] Pe [max]
- 406 psig
- Regulation range [psig] Pe [min]
- 116 psig
- Supply voltage [V] AC [max]
- 240 V
- Supply voltage [V] AC [min]
- 200 V
Standards & Compliance
- HS Code
- 9032.89
Cross References
- EAN 5702428275811
- MPN 061H3005
Product Documentation
More from Danfoss
Danfoss
Danfoss Repair Kit - FJV, AVTA, AVTB
003N4006
Danfoss
Danfoss AVQML Flow Limiter - 15, Nipple/nipple, 3/4" 10463073
Danfoss
Danfoss EMP 2 Pressure Transmitter - 1/2", -1-1,5bar
084G2100
Danfoss
Danfoss Pressure Switch - 10248371
Danfoss
Danfoss Dryer Filter insert - 48DA
5702428004930
Danfoss
Danfoss T 2 Thermostatic expansion valve flare/solder - R744 (CO2), External, -40-0°C, TE 2 R744
068Z2900
Danfoss
Danfoss DML Dryer Filter - DML306S
023Z4589
Danfoss

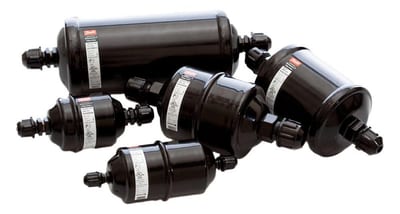

Danfoss DML Dryer Filter - 3/8" flare, R22, R23, R32, R134A, R404A, R407A, R407C, R407F, R410A, R438A, R448A, R449A, R450A, R452A, R452B, R454A (XL40), R454C (XL20), R455A, R507, R513A, R1234YF, R1233ZD, R1234ZE, DML053
