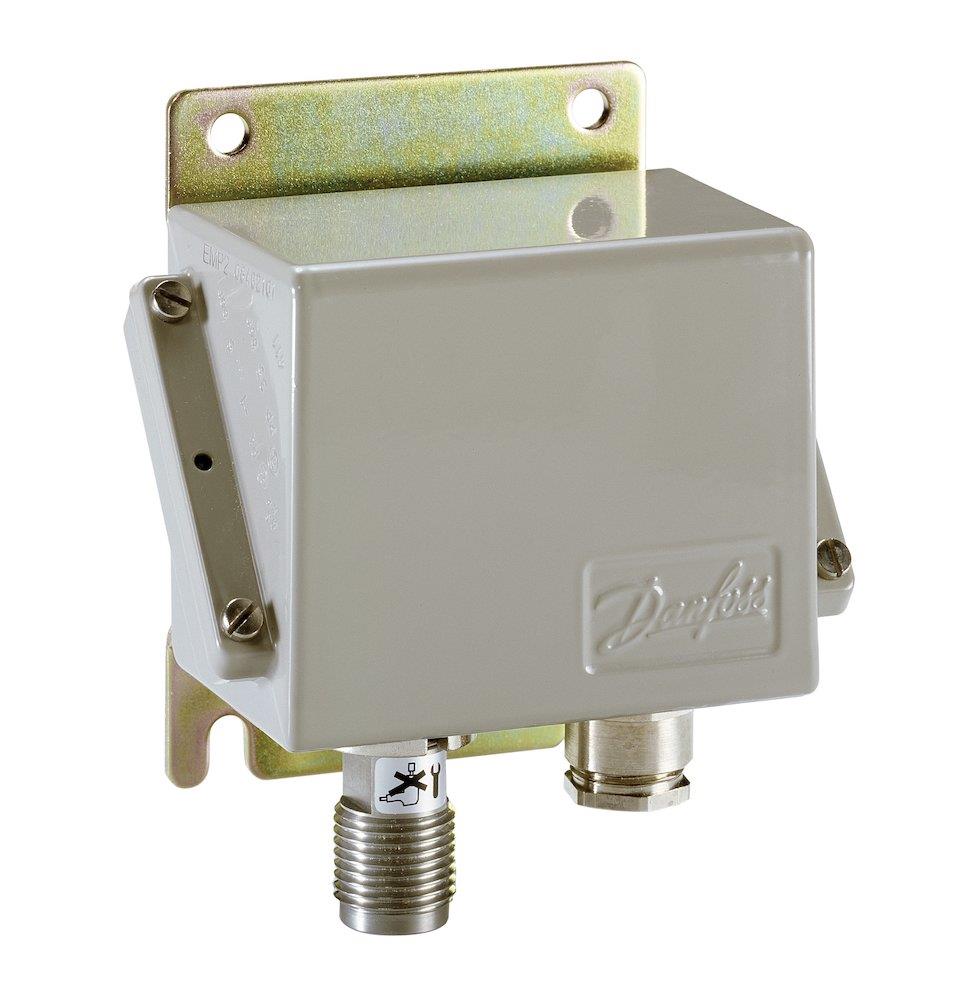

Danfoss EMP 2 Pressure Transmitter - 1/2", -1-1,5bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EMP 2 Pressure Transmitter. Push buttons (Plumbing / Heat / Valves for heating and cooling systems). Principal data: connection 1/2", setting range -1-1.5 bar. Supplied under manufacturer part number 084G2100, EAN 5702423005307, HS code 9026.20, country of origin China.
Technical Specifications
- Product type
- Push buttons
- Product group
- Heat
- Connection
- 1/2"
- Setting range
- -1-1.5 bar
- Type
- EMP 2
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 5.8757 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 90262020
- HS code
- 9026.20
- Manufacturer part number
- 084G2100
- VVS number
- 475171100
- EAN
- 5702423005307
- Net weight
- 0.782 Kilogram
- + supply
- P
- - common
- N
- Accuracy, max. [±FS%]
- 1 %
- Accuracy, typical [±FS%]
- 0.5 %
- Approval
- ABS
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 70 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 158 °F
- Compensated temp. range [°F] [min]
- 32 °F
- Electrical connection
- Terminal block
- Electrical connection size
- Pg 13.5
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 7(c)-I
- Flush diaphragm
- No
- High Clipping Level
- 22.4
- International Article Number
- 5702423005307
- Intrinsically safe
- No
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 70 °C
- Medium temperature range [°C] [min]
- -10 °C
- Medium temperature range [°F] [max]
- 158 °F
- Medium temperature range [°F] [min]
- 14 °F
- Non-linearity BFSL [±FS%]
- 0.3 %
- Output signal
- Current
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 5 bar
- Pressure connection notes
- EXT. G1/4 INT
- Pressure connection size
- 1/2
- Pressure connection standard
- EN 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male/Female
- Pressure range [bar] [max]
- 1.5 bar
- Pressure range [bar] [min]
- -1 bar
- Pressure range [psi] [max]
- 21.75 psi
- Pressure range [psi] [min]
- -14.5 psi
- Pressure reference
- Sealed gauge
- Pulse-snubber
- No
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- EMP 2-8431-F6CD24-2
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 12 V
- UL mark
- Yes
Standards & Compliance
- HS Code
- 9026.20
Cross References
- MPN 084G2100
- EAN 5702423005307
- VVS 475171100
Product Documentation
More from Danfoss
Danfoss
Danfoss Pressure Switch - 10248371
Danfoss
Danfoss Dryer Filter insert - 48DA
5702428004930
Danfoss
Danfoss T 2 Thermostatic expansion valve flare/solder - R744 (CO2), External, -40-0°C, TE 2 R744
068Z2900
Danfoss
Danfoss DML Dryer Filter - DML306S
023Z4589
Danfoss
Danfoss DML Dryer Filter - 3/8" flare, R22, R23, R32, R134A, R404A, R407A, R407C, R407F, R410A, R438A, R448A, R449A, R450A, R452A, R452B, R454A (XL40), R454C (XL20), R455A, R507, R513A, R1234YF, R1233ZD, R1234ZE, DML053
5702428155755
Danfoss
Danfoss Gear Motor - 10109075
082H3021
Danfoss
Danfoss AVTA 10 Thermostatic Valve with socket connection - 50°C, 90°C, 1.4M³/h
003N1182
Danfoss
Danfoss MBT 5250 Sensor - 1/2", 100mm
10127592
Technical guides
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
- Danfoss Maneurop MTZ Reciprocating Compressors — Model Range, Voltage Codes and Replacement Guide
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 084G2100?
- 084G2100 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 084G2100.
- What is the HS code for 084G2100?
- The customs tariff (HS) code for 084G2100 is 9026.20.
- Who manufactures 084G2100?
- 084G2100 is a Danfoss product in the Sensors & Instrumentation range.
- Is a datasheet available for 084G2100?
- Yes — the 084G2100 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 084G2100?
- The minimum order quantity is 1.
- Is 084G2100 available?
- Yes — 084G2100 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
