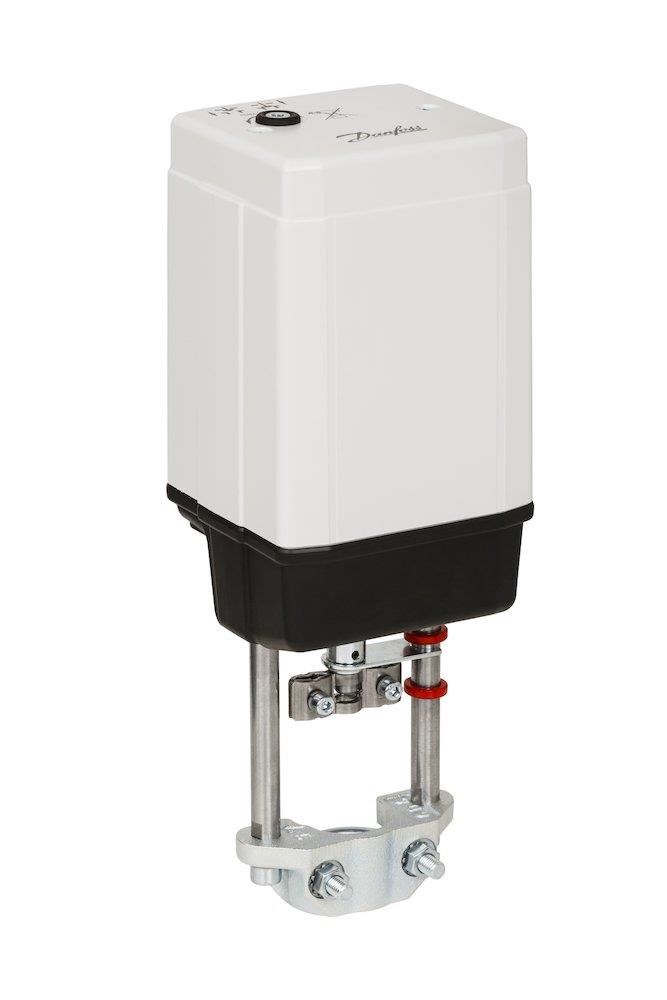

Danfoss Gear Motor - 10109075
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss Gear Motor. Engines/thermal engines (Plumbing / Heat / Valves for heating and cooling systems). Supplied under manufacturer part number 082H3021, EAN 5702421518090, HS code 8481.80, country of origin Denmark.
Technical Specifications
- Product type
- Engines/thermal engines
- Product group
- Heat
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 18.9958 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84818079
- HS code
- 8481.80
- Manufacturer part number
- 082H3021
- VVS number
- 460946156
- EAN
- 5702421518090
- Net weight
- 2.231 Kilogram
- Type
- AMV 55
- Actuator speed [s/mm]
- 8 s/mm
- Actuator type
- Electrical
- Ambient temperature [°C] [max]
- 55 °C
- Ambient temperature [°C] [min]
- 0 °C
- Application
- HD HVAC and DH
- China RoHS compliance
- Out of scope
- Closing force [N]
- 2000 N
- Control signal type
- 3-point
- Description
- AMV 55 230V 8s/mm 40mm 2000N
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Frequency [Hz]
- 50/60
- Grade of enclosure
- IP54
- Manual operation
- Yes
- Position feedback
- no - potentiometer needed
- Power consumption [W]
- 7 W
- Protection Class of the Coating
- II
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Safety function
- No
- Speed type
- Standard
- Spring down (return)
- No
- Spring up
- No
- Storage temperature [°C] [Max]
- 70 °C
- Storage temperature [°C] [Min]
- -40 °C
- Stroke [mm]
- 40 mm
- Supply voltage [V]
- 230 V AC
- Turn time per 90° [s]
- 0 "
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 082H3021
- EAN 5702421518090
- VVS 460946156
Product Documentation
More from Danfoss
Danfoss
Danfoss AVTA 10 Thermostatic Valve with socket connection - 50°C, 90°C, 1.4M³/h
003N1182
Danfoss
Danfoss MBT 5250 Sensor - 1/2", 100mm
10127592
Danfoss
Danfoss S Oil nozzle - 4.71KG/h, 1.25US gal/h, 60°, S, red
030F6924
Danfoss
Danfoss Spare Part Set - 10248433
032U0165
Danfoss
Danfoss Immersion Tube - 10247981
060L333066
Danfoss
Danfoss KP - LP Pressure Switch - 0,9-7bar, 1/4" flare, Manual, KP1
5702422017486
Danfoss

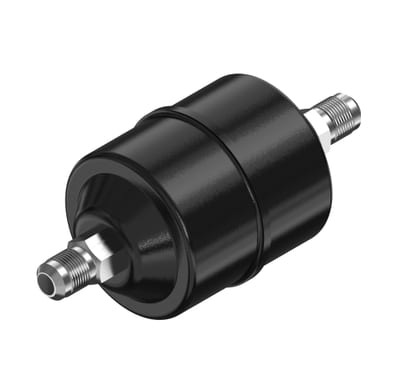

Danfoss DCL 164 hermetic filter drier, 16 cu.in., 1/2 inch flare
023Z500991
Danfoss

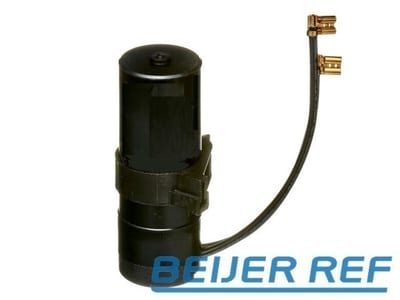

Danfoss 117U5017 start capacitor, 80 uF, 260 V AC
