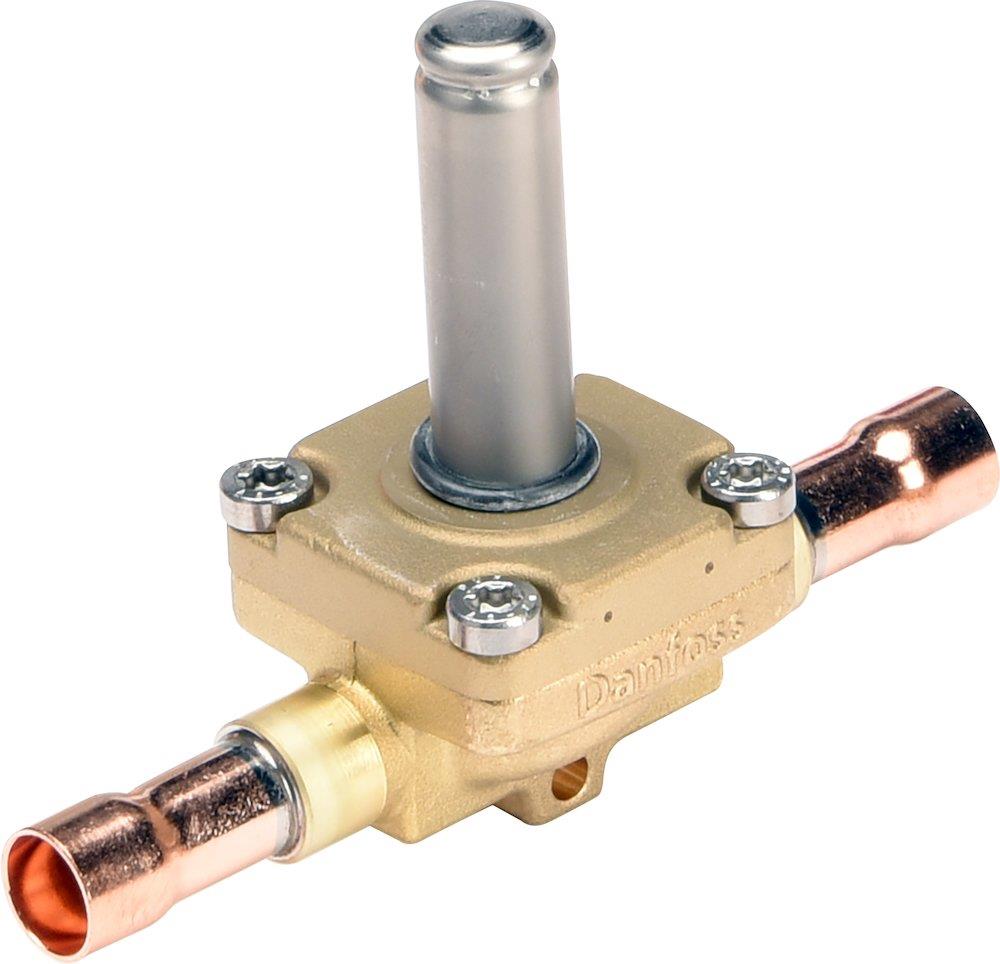

Danfoss EVR Solenoid Valve solder - 45.2bar, 0.8M³/h, 3/8" solder, 14.8kW, 11.2kW, 15.1kW, R22, R23, R32, R134A, R290, R404A, R407A, R407C, R407F, R410A, R417A, R438A, R448A, R449A, R450A, R452A, R452B, R454B (XL41), R454C (XL20), R455A, R507, R513A, R600, R600A, R1234YF, R1234ZE, EVR 6S
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EVR Solenoid Valve solder. Solenoid valves for refrigeration systems (Refrigeration technology / Cooling technical components). Principal data: working pressure max 45.2 bar, kv value 0.8 m³/h, pipe dimension 3/8" solder, cooling capacity r134a 14.8 kW. Supplied under manufacturer part number 032L1212, EAN 5702428952903, HS code 8481.80, country of origin Poland.
Technical Specifications
- Product type
- Solenoid valves for refrigeration systems
- Product group
- Cooling technical components
- Working pressure max
- 45.2 bar
- Kv value
- 0.8 m³/h
- Pipe dimension
- 3/8" solder
- Cooling capacity R134a
- 14.8 kW
- Cooling capacity R404A
- 11.2 kW
- Cooling capacity R407C
- 15.1 kW
- Coolant
- R22, R23, R32, R134a, R290, R404A, R407A, R407C, R407F, R410A, R417A, R438A, R448A, R449A, R450A, R452A, R452B, R454B (XL41), R454C (XL20), R455A, R507, R513A, R600, R600a, R1234yf, R1234ze
- Type designation
- EVR 6S
- Sales unit
- Pack
- Carbon footprint (EPD)
- 4.8451 kg CO2e per pcs
- Country of origin
- Poland
- Customs tariff code (EU CN)
- 84818099
- HS code
- 8481.80
- Manufacturer part number
- 032L1212
- EAN
- 5702428952903
- Net weight
- 0.185 Kilogram
- Type
- EVR 6
- Actuator system [mm]
- 13.5 mm
- Ambient temperature
- -40 - Coil dependent
- Ambient temperature range [°F] [max]
- 175 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- EAC
- Body material
- Brass
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Coil
- No
- Connection Code
- (3002:X:10)
- Cv value [gal/min]
- 1.15 gal/min
- Direction
- Straightway
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Fluid Group
- 1
- Function
- NC
- Identical product
- 032L5219
- Inlet connection type
- Solder, ODF
- Inlet size [in]
- 3/8 in
- Kv value [m³/h]
- 1 m³/h
- Lubricants compatibility
- AB
- Manual operation option
- No
- Max. Working Pressure [bar]
- 45.2 bar
- Max. Working Pressure [psig]
- 655 psig
- MaxOPD[bar] 10W AC
- 38 bar
- MaxOPD[bar] 20W DC
- 28 bar
- MaxOPD[bar] coil BJ/BX
- 38 bar
- MaxOPD[psi] 10W AC
- 550 psi
- MaxOPD[psi] 20W DC
- 406 psi
- MaxOPD[psi] coil BJ/BX
- 550 psi
- Medium temp. range note
- Defrost max 130°C/265°F
- Medium temperature range [°C] [max]
- 105 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 221 °F
- Medium temperature range [°F] [min]
- -40 °F
- MinODP [bar]
- 0.03 bar
- MinODP [psi]
- 0.44 psi
- MOPD[bar/psi]
- Coil Dependent
- MWP [bar] PED compliant
- 49 bar
- Orifice size [mm]
- 6 mm
- Outlet connection type
- Solder, ODF
- Outlet size [in]
- 3/8 in
- PED category
- Art. 4, par. 3
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R1234yf
- UL approved refrigerants
- R125
- UL mark
- Yes
- Valve operation
- Servo-diaphragm
Standards & Compliance
- HS Code
- 8481.80
Cross References
- EAN 5702428952903
- MPN 032L1212
