Danfoss AVQM-WE motorized flow controller (PICV), PN 25, DN 25, flow range 0.2–4.5 m³/h, Kvs 8 m³/h, External thread G 1 1/4 A (ISO 228/1), via tailpieces
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AVQM-WE (003H7083) — self-acting flow controller with integrated, pressure-independent motorized control valve (PICV); holds the differential pressure across the built-in flow restrictor constant so the electric actuator stem position sets flow independent of system pressure; limits the flow to the set maximum, PN 25, DN 25, for district heating and cooling systems. Because the built-in differential-pressure controller keeps the pressure drop across the flow restrictor constant, the flow becomes pressure-independent: the position of the separately ordered Danfoss AMV(E) electric actuator directly sets the flow, and the valve limits the flow to the set maximum. Flow range 0.2 - 4.5 m³/h; Kvs 8 m³/h; flow-restrictor differential pressure (Δpb) 0.2 bar; maximum differential pressure 16 bar; media temperature 2–150 °C; seat leakage 0.05 % Kvs (IEC 60534). Valve body Dezincification-resistant brass; stainless-steel seat/cone; EPDM control diaphragm. Connection External thread G 1 1/4 A (ISO 228/1), via tailpieces. Mounting version Free. Permissible media: district-heating/cooling circulation water (glycolic water up to 30 %), pH 7–10. The controller is delivered completely assembled, including the impulse tube between valve and actuator; the AMV(E) electric actuator are ordered separately. OEM P/N 003H7083. Materials and function per Danfoss AVQM-WE / AVQMT-WE (new neck) data sheet; technical values verbatim from store.danfoss.com (code 003H7083). Contains lead per the REACH candidate list. differential pressure 16 bar); Temperature range: 2 to 150 °C (district heating/cooling water); Standards: ISO 228-1, IEC 60534; HS code: 8481.80. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Code number
- 003H7083
- Type
- AVQM-WE
- Product group
- Pressure independent control valves (Pressure and flow controllers)
- Function
- Self-acting flow controller with integrated, pressure-independent motorized control valve (PICV); holds the differential pressure across the built-in flow restrictor constant so the electric actuator stem position sets flow independent of system pressure; limits the flow to the set maximum
- Valve size
- DN 25
- Pressure class
- PN 25
- Connection
- External thread G 1 1/4 A (ISO 228/1), via tailpieces
- Kvs value
- 8 m³/h
- Flow rate range
- 0.2 - 4.5 m³/h
- Flow restrictor differential pressure (Δpb)
- 0.2 bar
- Max. differential pressure
- 16 bar
- Media temperature
- 2 - 150 °C
- Media
- District heating / district cooling circulation water (glycolic water up to 30%), pH 7 - 10
- Seat leakage rate
- 0.05 % Kvs (IEC 60534)
- Electric actuator
- Danfoss AMV(E) (e.g. AMV/AME 110, 150, 435), ordered separately; controllable by ECL electronic controllers
- Delivery
- Delivered assembled, incl. impulse tube between valve and actuator; electric actuator ordered separately
- Mounting version
- Free
- Valve body material
- Dezincification-resistant brass
- Valve seat / cone
- Stainless steel
- Control diaphragm
- EPDM
- EU RoHS compliance
- Yes with exemptions (6(c))
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- China RoHS
- Out of scope
- Net weight
- 3.129 kg
- Gross weight
- 3.129 kg
- EAN
- 5710104093949
Standards & Compliance
- Material
- Valve body Dezincification-resistant brass; valve seat/cone Stainless steel; control diaphragm EPDM
- Pressure Rating
- PN 25 (max. differential pressure 16 bar)
- Temperature Range
- 2 to 150 °C (district heating/cooling water)
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss AVQM-WE for DN 25 district-heating/cooling combined flow limiting and pressure-independent flow control at PN 25. Set the maximum flow within 0.2 - 4.5 m³/h using the adjustable flow restrictor (Kvs 8 m³/h); because control is pressure-independent, the flow follows the electric actuator position regardless of Δp swings (up to 16 bar). Fit a Danfoss AMV(E) electric actuator (ordered separately), controllable by an ECL electronic controller. Confirm the connection (External thread G 1 1/4 A (ISO 228/1), via tailpieces) and pressure class (PN 25) match the pipework; order the matching tailpiece/union-nut set separately. Media temperature up to 150 °C.
Product Documentation
More from Danfoss
Danfoss
Danfoss AVQMT-WE motorized flow and temperature controller (PICV), PN 25, DN 15, flow range 0.07–1.6 m³/h, Kvs 2.5 m³/h, External thread G 3/4 A (ISO 228/1), via tailpieces
003H7084
Danfoss
Danfoss AVQMT-WE motorized flow and temperature controller (PICV), PN 25, DN 15, flow range 0.7–2.4 m³/h, Kvs 4 m³/h, External thread G 3/4 A (ISO 228/1), via tailpieces
003H7085
Danfoss
Danfoss AVQMT-WE motorized flow and temperature controller (PICV), PN 25, DN 20, flow range 0.16–3.5 m³/h, Kvs 6.3 m³/h, External thread G 1 A (ISO 228/1), via tailpieces
003H7086
Danfoss
Danfoss AVQMT-WE motorized flow and temperature controller (PICV), PN 25, DN 25, flow range 0.2–4.5 m³/h, Kvs 8 m³/h, External thread G 1 1/4 A (ISO 228/1), via tailpieces
003H7087
Danfoss
Danfoss AVQM-WE motorized flow controller (PICV), PN 25, DN 32, flow range 0.4–10 m³/h, Kvs 12.5 m³/h, Flange DN 32 (EN 1092-2)
003H7088
Danfoss
Danfoss AVQM-WE motorized flow controller (PICV), PN 25, DN 40, flow range 0.8–10.5 m³/h, Kvs 20 m³/h, Flange DN 40 (EN 1092-2)
003H7089
Danfoss
Danfoss AVQM-WE motorized flow controller (PICV), PN 25, DN 50, flow range 0.8–14 m³/h, Kvs 25 m³/h, Flange DN 50 (EN 1092-2)
003H7090
Danfoss

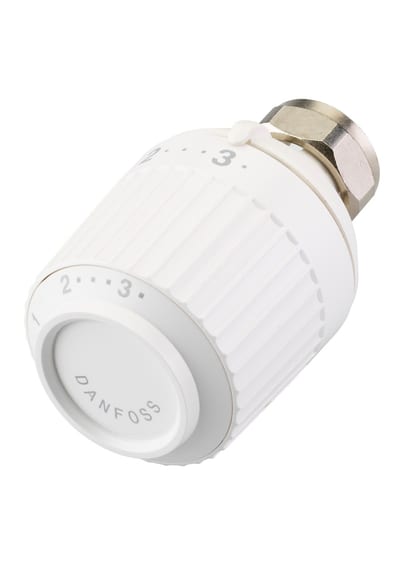

Danfoss MMA (M28) thermostatic radiator sensor (operator head), liquid-charged, built-in sensor, 8–21 °C setting range, for M28 MMA valves
