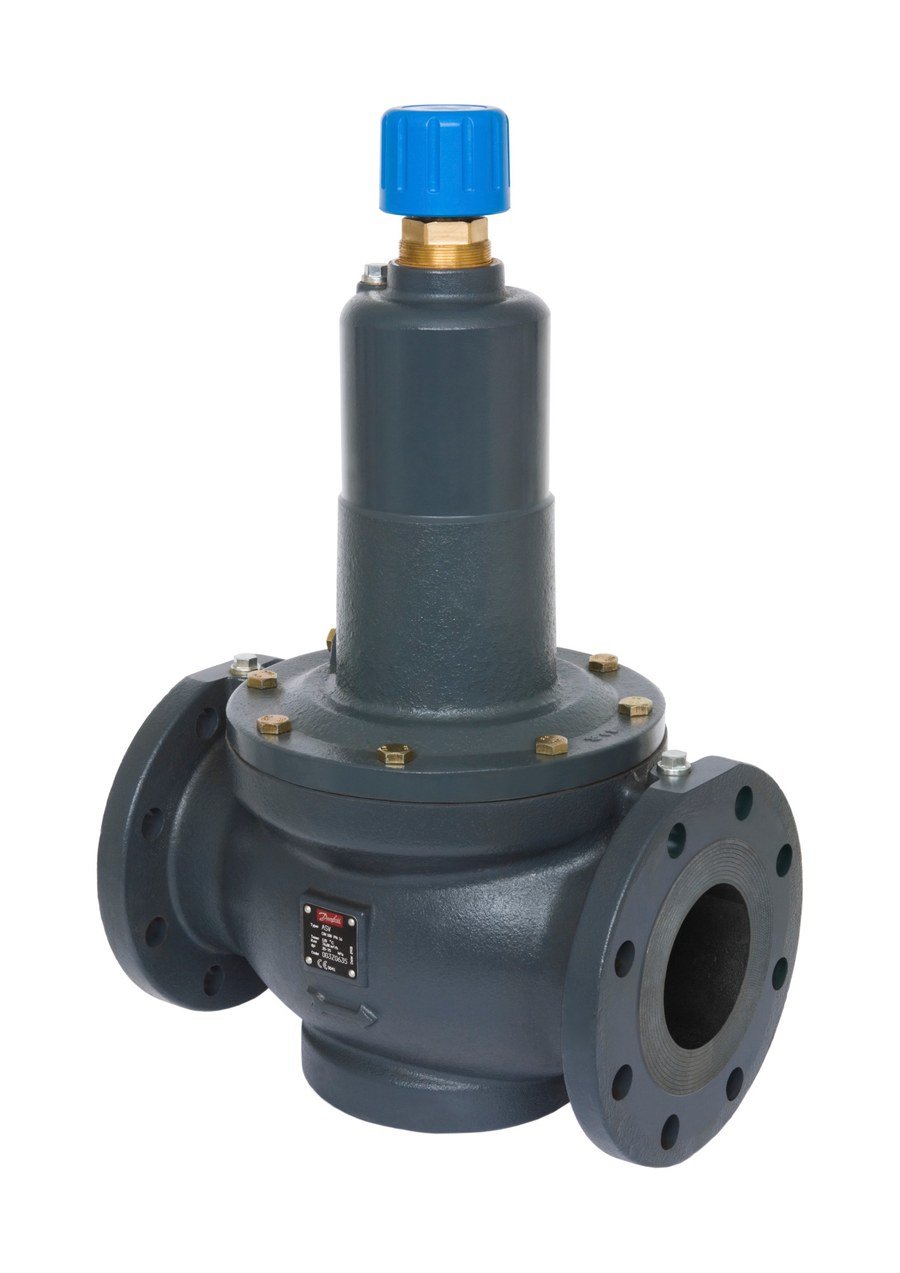

Danfoss ASV-PV 3G DN 100 differential pressure controller 60-100 kPa flanged

Danfoss ASV-PV 3G DN 100 — third-generation self-acting differential-pressure controller for automatic hydronic balancing. Installed in the return pipe of a heating or cooling circuit, it holds a constant differential pressure across the branch or terminal (paired with an ASV-BD/ASV-M/ASV-I partner valve and an impulse tube), so that two-way control-valve authority stays high and flow noise is avoided at part load. Differential-pressure setting range 60-100 kPa (factory setting 80 KPa), Kvs 76 m³/h, Grey cast iron (EN-GJL-250) body, Flange connection, PN 16, media temperature -10 °C to 120 °C, integral shut-off. OEM P/N 003Z0645. EAN 5702421558638. Also supplied under order code 003Z0649 (EAN 5710104524023), an identical DN 100 / 60-100 kPa / flanged ASV-PV 3G valve differing only in packing/order revision. Technical data quoted verbatim from store.danfoss.com (code 003Z0645).

Code number

003Z0645

Alternate order code

003Z0649 (EAN 5710104524023)

Type

ASV-PV 3G

Product group

Automatic balancing

Description

ASV-PV DN 100, 60-100 kPa, automatic balancing valve

Valve size

DN 100

Valve body material

Grey cast iron (EN-GJL-250)

Connection types

Flange

Pressure class

PN 16

Kvs values [m³/h]

76 m³/h

Differential pressure setting [kPa] [Min]

60 KPa

Differential pressure setting [kPa] [Max]

100 KPa

Factory setting [kPa]

80 KPa

Differential pressure over the valve [kPa] [Max]

250 KPa

Impulse tube length [m]

2.5 m

Media temperature [°C] [Min]

-10 °C

Media temperature [°C] [Max]

120 °C

Mounting position

Return pipe

Shut-off function

Yes

Contains batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

China RoHS compliance

Out of scope

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Net weight

65.4 Kilogram

Gross weight

65.4 Kilogram

Volume

96.804 Liter

EAN

5702421558638

SCIP dossier no.

844846e2-e4e6-4453-80a4-8fc4b645ca9a

SCIP dossier product name

"ASV-PV Dn 65-100 1"

Material

Valve body Grey cast iron (EN-GJL-250)

Pressure Rating

PN 16

Temperature Range

-10 °C to 120 °C (media)

Classification / Approval

CE

HS Code

8481.80
