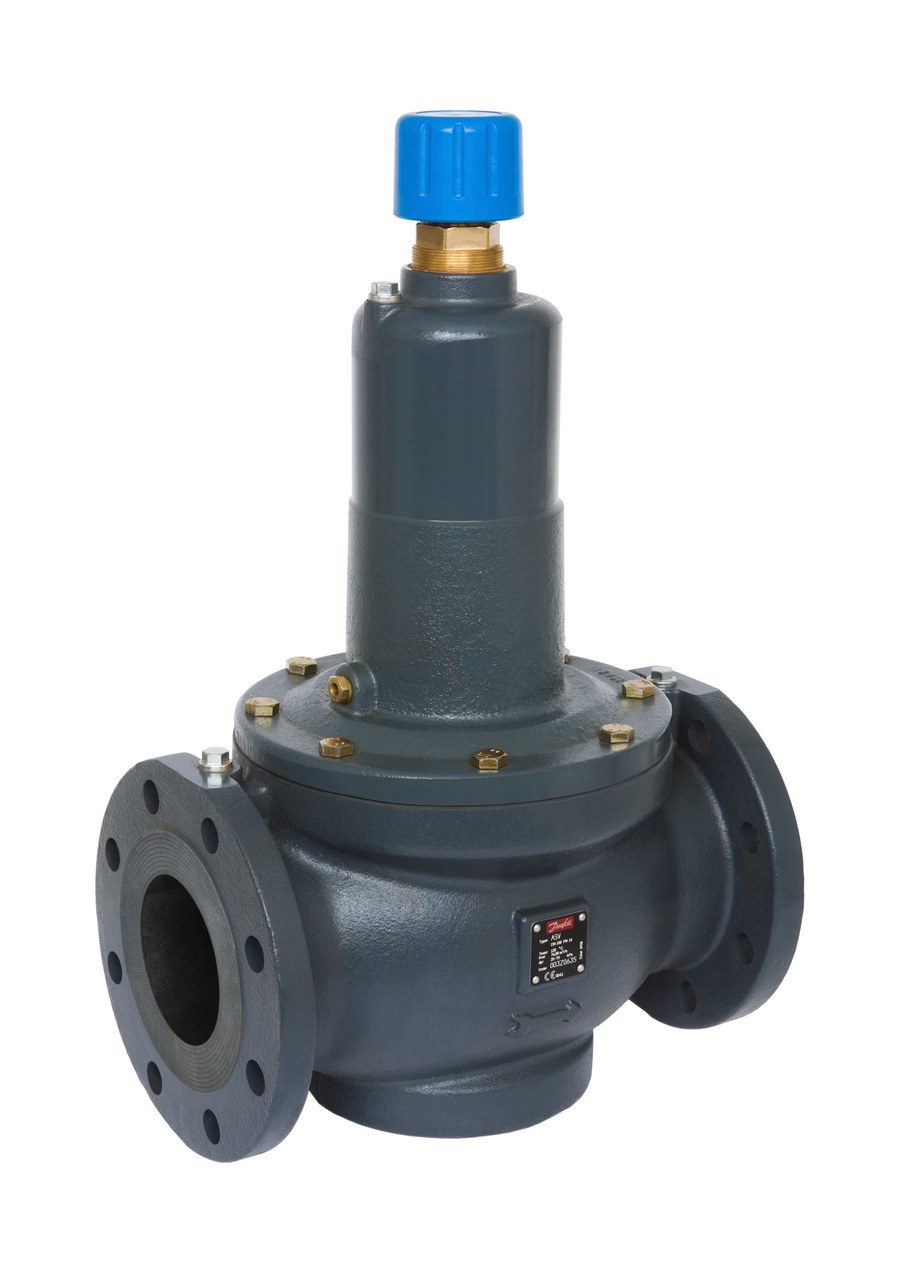

Danfoss ASV-PV 3G DN 100 differential pressure controller 120-160 kPa flanged
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ASV-PV 3G DN 100 — third-generation self-acting differential-pressure controller for automatic hydronic balancing. Installed in the return pipe of a heating or cooling circuit, it holds a constant differential pressure across the branch or terminal (paired with an ASV-BD/ASV-M/ASV-I partner valve and an impulse tube), so that two-way control-valve authority stays high and flow noise is avoided at part load. Differential-pressure setting range 120-160 kPa (factory setting ), Kvs 76 m³/h, body, Flange connection,, media temperature to, integral shut-off. OEM P/N 003Z0657. EAN 5710104517490. Technical data quoted verbatim from store.danfoss.com (code 003Z0657).
Technical Specifications
- Code number
- 003Z0657
- Type
- ASV-PV 3G
- Product group
- Automatic balancing
- Description
- ASV-PV DN 100 120-160 kPa
- Valve size
- DN 100
- Connection types
- Flange
- Kvs values [m³/h]
- 76 m³/h
- Differential pressure setting [kPa] [Min]
- 120 KPa
- Differential pressure setting [kPa] [Max]
- 160 KPa
- Contains batteries
- No
- EU RoHS compliance
- Out of scope
- China RoHS compliance
- Out of scope
- Net weight
- 65.3 Kilogram
- Gross weight
- 65.3 Kilogram
- Volume
- 0.888 Hectoliter
- EAN
- 5710104517490
Standards & Compliance
- Classification / Approval
- CE
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss ASV-PV 3G differential-pressure controller for DN 100 circuits. The valve maintains a set differential pressure and is used with a matching ASV-BD/ASV-M/ASV-I partner (manual balancing / shut-off) valve; select the setting range (120-160 kPa here) to bracket the required branch differential pressure, and confirm the connection type (Flange) matches the pipework. Impulse tube is supplied with the valve.
Product Documentation
More from Danfoss
Danfoss
Danfoss ASV-PV 3G DN 150 differential pressure controller 70-150 kPa flanged
003Z0666
Danfoss
Danfoss ASV-PV 3G DN 200 differential pressure controller 70-150 kPa flanged
003Z0676
Danfoss
Danfoss ASV-PV 3G DN 250 differential pressure controller 70-150 kPa flanged
003Z0686
Danfoss
Danfoss Adapter X large ASV DN125-250
003Z0687
Danfoss
Danfoss Impulse tube set AF 2,5M
003Z0688
Danfoss
Danfoss Plastic impulse tube with connectors and adapters, 1,5 m, Industry pack
003Z0689
Danfoss
Danfoss Impulse tube with O-rings, 2,5 m
003Z0690
Danfoss
Danfoss 1/4'' combined impulse tube adapter for large ASV
003Z0691
Technical guides
- Balancing Valve Finder — Danfoss AB-QM, ASV-PV / ASV-M, USV-I / USV-M, MSV-BD / MSV-F2, IMI TA STAD / STAF, Frese by DN and Type
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
Catalogue entry last verified: 2026-08-24. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 003Z0657?
- 003Z0657 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 003Z0657.
- What is the HS code for 003Z0657?
- The customs tariff (HS) code for 003Z0657 is 8481.80.
- Who manufactures 003Z0657?
- 003Z0657 is a Danfoss product in the HVAC & Refrigeration range.
- Is a datasheet available for 003Z0657?
- Yes — the 003Z0657 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 003Z0657?
- The minimum order quantity is 1.
- Is 003Z0657 available?
- Yes — 003Z0657 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
