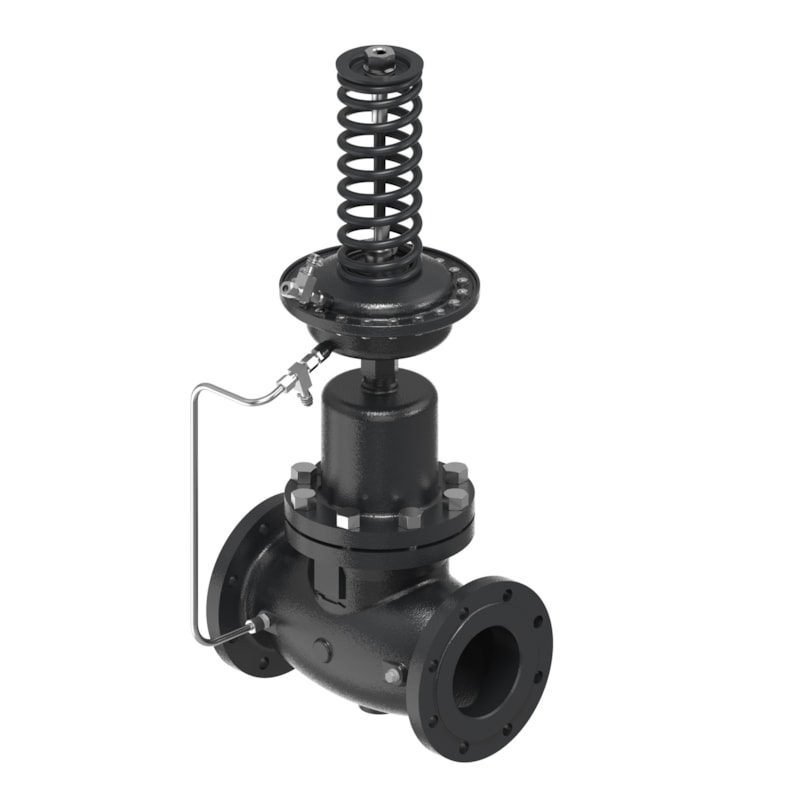

Danfoss ASV-PV 3G DN 200 differential pressure controller 70-150 kPa flanged

Danfoss ASV-PV 3G DN 200 — third-generation self-acting differential-pressure controller for automatic hydronic balancing. Installed in the return pipe of a heating or cooling circuit, it holds a constant differential pressure across the branch or terminal (paired with an ASV-BD/ASV-M/ASV-I partner valve and an impulse tube), so that two-way control-valve authority stays high and flow noise is avoided at part load. Differential-pressure setting range 70-150 kPa (factory setting ), Kvs 320 m³/h, Grey cast iron EN-GJL-250 (GG-25) body, Flange connection, PN 16, media temperature 2 °C to 120 °C, integral shut-off. OEM P/N 003Z0676. EAN 5710104509716. Technical data quoted verbatim from store.danfoss.com (code 003Z0676).

Code number

003Z0676

Type

ASV-PV 3G

Product group

Automatic balancing

Description

ASV-PV 3G, DN 200, 70 KPa - 150 KPa, Flange

Valve size

DN 200

Valve body material

Grey cast iron EN-GJL-250 (GG-25)

Connection types

Flange

Pressure class

PN 16

Pressure nominal [bar]

16 bar

Kvs values [m³/h]

320 m³/h

Differential pressure setting [kPa] [Min]

70 KPa

Differential pressure setting [kPa] [Max]

150 KPa

Diameter [mm]

200 mm

Permissible media

District heating/cooling circulation water

Media temperature [°C] [Min]

2 °C

Media temperature [°C] [Max]

120 °C

Contains batteries

No

EU RoHS compliance

Out of scope

China RoHS compliance

Out of scope

Net weight

232.5 Kilogram

Gross weight

242.1 Kilogram

Volume

552 Liter

EAN

5710104509716

Actuator diaphragm material

EPDM

Application

Heating

Cavitation factor

0.2

Differential pressure range [bar] [Max]

2.5 bar

Differential pressure range [bar] [Min]

0.1 bar

Differential pressure setting [bar] [Max]

1.5 bar

Differential pressure setting [bar] [Min]

0.7 bar

Flow control

No

Flow limitation

No

Function

Diff. press. controller

Function VSP - P

Yes

Function VSP - Q

No

Function VSP - T

No

Media pH [Max]

10

Media pH [Min]

7

Medium alternative

Glycolic water up to 30%

Mounting version

Return

Number of ports

2

Pressure controller

Differential pressure controller

Sealing DP material

Metal

Setting Type

Adjustable

Stem position

Normally open

Valve cone DP material

Stainless steel, mat. No. 1.4404

Valve seat material

Stainless steel, mat. No. 1.4021

Material

Valve body Grey cast iron EN-GJL-250 (GG-25)

Pressure Rating

PN 16

Temperature Range

2 °C to 120 °C (media)

Classification / Approval

CE

HS Code

8481.80
