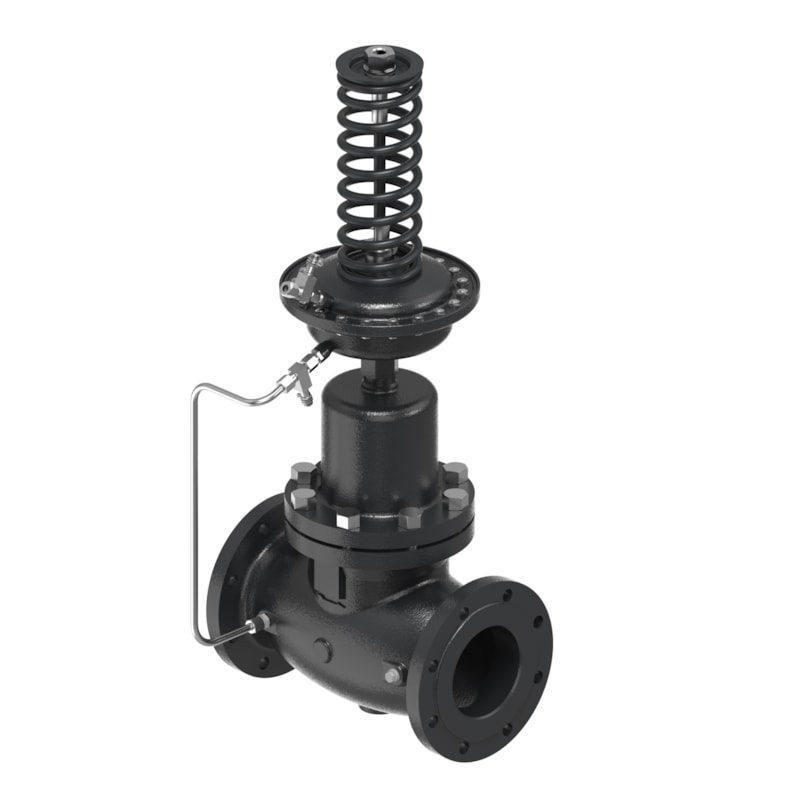

Danfoss ASV-PV 3G DN 250 differential pressure controller 70-150 kPa flanged
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ASV-PV 3G DN 250 — third-generation self-acting differential-pressure controller for automatic hydronic balancing. Installed in the return pipe of a heating or cooling circuit, it holds a constant differential pressure across the branch or terminal (paired with an ASV-BD/ASV-M/ASV-I partner valve and an impulse tube), so that two-way control-valve authority stays high and flow noise is avoided at part load. Differential-pressure setting range 70-150 kPa (factory setting ), Kvs 400 m³/h, Grey cast iron EN-GJL-250 (GG-25) body, Flange connection, PN 16, media temperature 2 °C to 120 °C, integral shut-off. OEM P/N 003Z0686. EAN 5710104509723. Technical data quoted verbatim from store.danfoss.com (code 003Z0686).
Technical Specifications
- Code number
- 003Z0686
- Type
- ASV-PV 3G
- Product group
- Automatic balancing
- Description
- ASV-PV 3G, DN 250, 70 KPa - 150 KPa, Flange
- Valve size
- DN 250
- Valve body material
- Grey cast iron EN-GJL-250 (GG-25)
- Connection types
- Flange
- Pressure class
- PN 16
- Pressure nominal [bar]
- 16 bar
- Kvs values [m³/h]
- 400 m³/h
- Differential pressure setting [kPa] [Min]
- 70 KPa
- Differential pressure setting [kPa] [Max]
- 150 KPa
- Diameter [mm]
- 250 mm
- Permissible media
- District heating/cooling circulation water
- Media temperature [°C] [Min]
- 2 °C
- Media temperature [°C] [Max]
- 120 °C
- Contains batteries
- No
- EU RoHS compliance
- Out of scope
- China RoHS compliance
- Out of scope
- Net weight
- 376.5 Kilogram
- Gross weight
- 396 Kilogram
- Volume
- 835.2 Liter
- EAN
- 5710104509723
- Actuator diaphragm material
- EPDM
- Application
- Heating
- Cavitation factor
- 0.2
- Differential pressure range [bar] [Max]
- 2.5 bar
- Differential pressure range [bar] [Min]
- 0.1 bar
- Differential pressure setting [bar] [Max]
- 1.5 bar
- Differential pressure setting [bar] [Min]
- 0.7 bar
- Flow control
- No
- Flow limitation
- No
- Function
- Diff. press. controller
- Function VSP - P
- Yes
- Function VSP - Q
- No
- Function VSP - T
- No
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Medium alternative
- Glycolic water up to 30%
- Mounting version
- Return
- Number of ports
- 2
- Pressure controller
- Differential pressure controller
- Sealing DP material
- Metal
- Setting Type
- Adjustable
- Stem position
- Normally open
- Valve cone DP material
- Stainless steel, mat. No. 1.4404
- Valve seat material
- Stainless steel, mat. No. 1.4021
Standards & Compliance
- Material
- Valve body Grey cast iron EN-GJL-250 (GG-25)
- Pressure Rating
- PN 16
- Temperature Range
- 2 °C to 120 °C (media)
- Classification / Approval
- CE
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss ASV-PV 3G differential-pressure controller for DN 250 circuits. The valve maintains a set differential pressure and is used with a matching ASV-BD/ASV-M/ASV-I partner (manual balancing / shut-off) valve; select the setting range (70-150 kPa here) to bracket the required branch differential pressure, and confirm the connection type (Flange) matches the pipework. Impulse tube is supplied with the valve.
Product Documentation
More from Danfoss
Danfoss
Danfoss Adapter X large ASV DN125-250
003Z0687
Danfoss

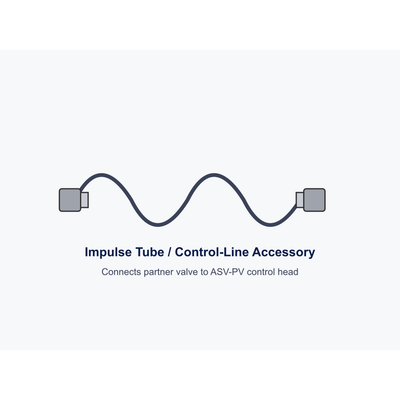

Danfoss Impulse tube set AF 2,5M
003Z0688
Danfoss
Danfoss Plastic impulse tube with connectors and adapters, 1,5 m, Industry pack
003Z0689
Danfoss
Danfoss Impulse tube with O-rings, 2,5 m
003Z0690
Danfoss
Danfoss 1/4'' combined impulse tube adapter for large ASV
003Z0691
Danfoss

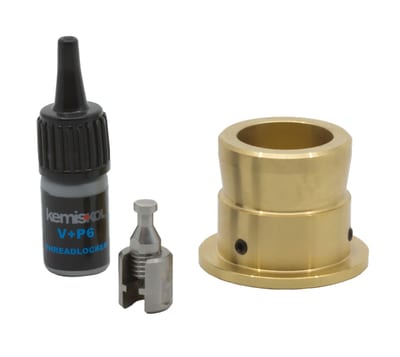

Danfoss Adapter AMV/E 25 DN 40 - 100
