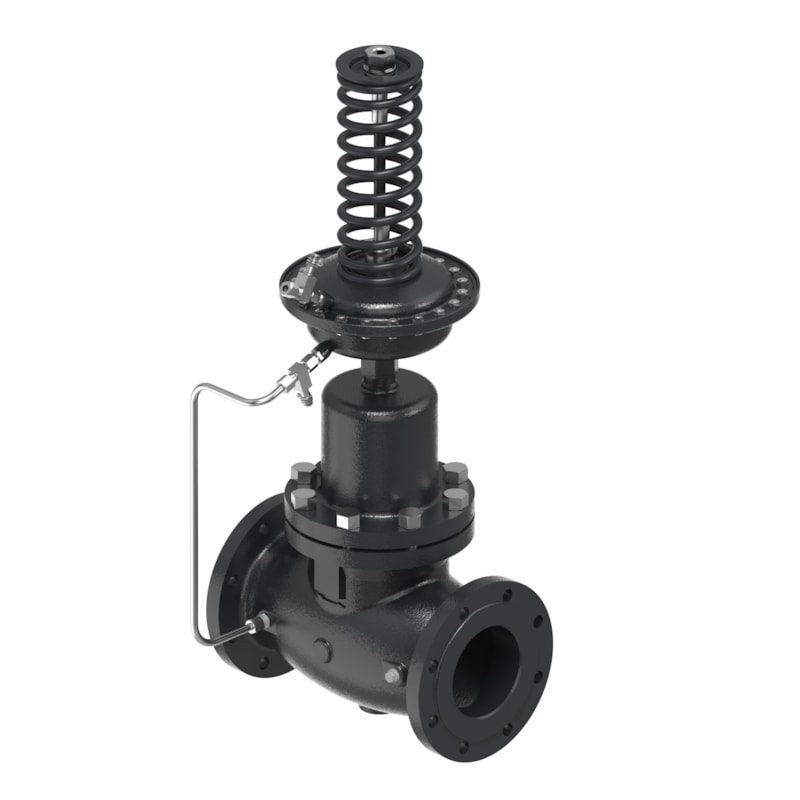

Danfoss ASV-PV 3G DN 125 differential pressure controller 70-150 kPa flanged
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ASV-PV 3G DN 125 — third-generation self-acting differential-pressure controller for automatic hydronic balancing. Installed in the return pipe of a heating or cooling circuit, it holds a constant differential pressure across the branch or terminal (paired with an ASV-BD/ASV-M/ASV-I partner valve and an impulse tube), so that two-way control-valve authority stays high and flow noise is avoided at part load. Differential-pressure setting range 70-150 kPa (factory setting ), Kvs 160 m³/h, Grey cast iron EN-GJL-250 (GG-25) body, Flange connection, PN 16, media temperature 2 °C to 120 °C, integral shut-off. OEM P/N 003Z0656. EAN 5710104509600. Technical data quoted verbatim from store.danfoss.com (code 003Z0656).
Technical Specifications
- Code number
- 003Z0656
- Type
- ASV-PV 3G
- Product group
- Automatic balancing
- Description
- ASV-PV 3G, DN 125, 70 KPa - 150 KPa, Flange
- Valve size
- DN 125
- Valve body material
- Grey cast iron EN-GJL-250 (GG-25)
- Connection types
- Flange
- Pressure class
- PN 16
- Pressure nominal [bar]
- 16 bar
- Kvs values [m³/h]
- 160 m³/h
- Differential pressure setting [kPa] [Min]
- 70 KPa
- Differential pressure setting [kPa] [Max]
- 150 KPa
- Diameter [mm]
- 125 mm
- Permissible media
- District heating/cooling circulation water
- Media temperature [°C] [Min]
- 2 °C
- Media temperature [°C] [Max]
- 120 °C
- Contains batteries
- No
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- China RoHS compliance
- Out of scope
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 90 Kilogram
- Gross weight
- 119.3 Kilogram
- Volume
- 504 Liter
- EAN
- 5710104509600
- Actuator diaphragm material
- EPDM
- Application
- Heating
- Cavitation factor
- 0.35
- Differential pressure range [bar] [Max]
- 2.5 bar
- Differential pressure range [bar] [Min]
- 0.1 bar
- Differential pressure setting [bar] [Max]
- 1.5 bar
- Differential pressure setting [bar] [Min]
- 0.7 bar
- Flow control
- No
- Flow limitation
- No
- Function
- Diff. press. controller
- Function VSP - P
- Yes
- Function VSP - Q
- No
- Function VSP - T
- No
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Medium alternative
- Glycolic water up to 30%
- Mounting version
- Return
- Number of ports
- 2
- Pressure controller
- Differential pressure controller
- Sealing DP material
- Metal
- Setting Type
- Adjustable
- Stem position
- Normally open
- Valve cone DP material
- Stainless steel, mat. No. 1.4404
- Valve seat material
- Stainless steel, mat. No. 1.4021
Standards & Compliance
- Material
- Valve body Grey cast iron EN-GJL-250 (GG-25)
- Pressure Rating
- PN 16
- Temperature Range
- 2 °C to 120 °C (media)
- Classification / Approval
- CE
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss ASV-PV 3G differential-pressure controller for DN 125 circuits. The valve maintains a set differential pressure and is used with a matching ASV-BD/ASV-M/ASV-I partner (manual balancing / shut-off) valve; select the setting range (70-150 kPa here) to bracket the required branch differential pressure, and confirm the connection type (Flange) matches the pipework. Impulse tube is supplied with the valve.
