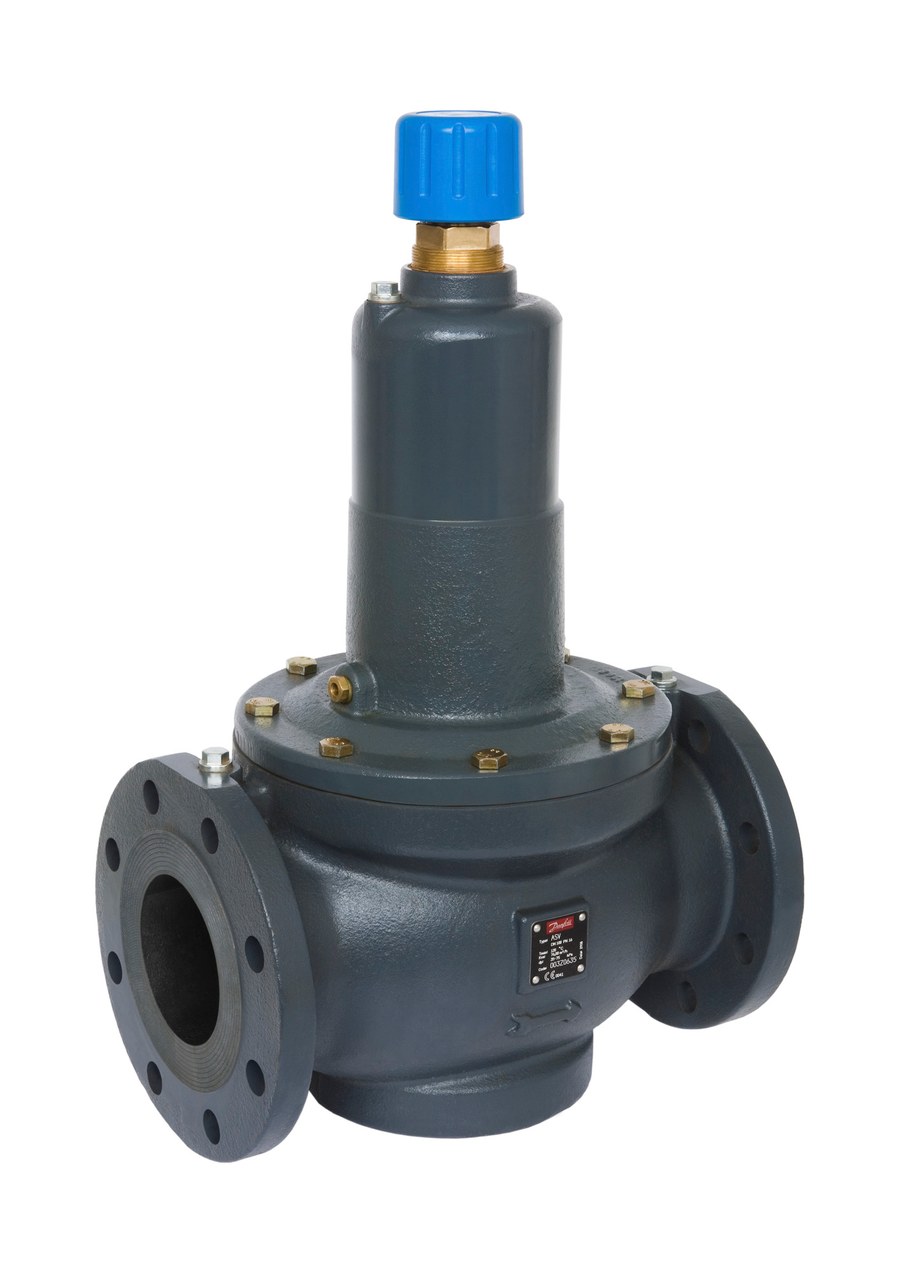

Danfoss ASV-PV 3G DN 100 differential pressure controller 100-130 kPa flanged

Danfoss ASV-PV 3G DN 100 — third-generation self-acting differential-pressure controller for automatic hydronic balancing. Installed in the return pipe of a heating or cooling circuit, it holds a constant differential pressure across the branch or terminal (paired with an ASV-BD/ASV-M/ASV-I partner valve and an impulse tube), so that two-way control-valve authority stays high and flow noise is avoided at part load. Differential-pressure setting range 100-130 kPa (factory setting ), Kvs 76 m³/h, body, Flange connection,, media temperature to, integral shut-off. OEM P/N 003Z0653. EAN 5710104517469. Technical data quoted verbatim from store.danfoss.com (code 003Z0653).

Code number

003Z0653

Type

ASV-PV 3G

Product group

Automatic balancing

Description

ASV-PV DN 100, 100-130 kPa, automatic balancing valve

Valve size

DN 100

Connection types

Flange

Kvs values [m³/h]

76 m³/h

Differential pressure setting [kPa] [Min]

100 KPa

Differential pressure setting [kPa] [Max]

130 KPa

Contains batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

China RoHS compliance

Out of scope

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Net weight

65.5 Kilogram

Gross weight

65.5 Kilogram

Volume

210.216 Liter

EAN

5710104517469

SCIP dossier no.

b93c9901-3ecd-4d21-bb5b-76b0dfd51e15

SCIP dossier product name

"ASV-PV Dn 65-100 2"

Classification / Approval

CE

HS Code

8481.80
