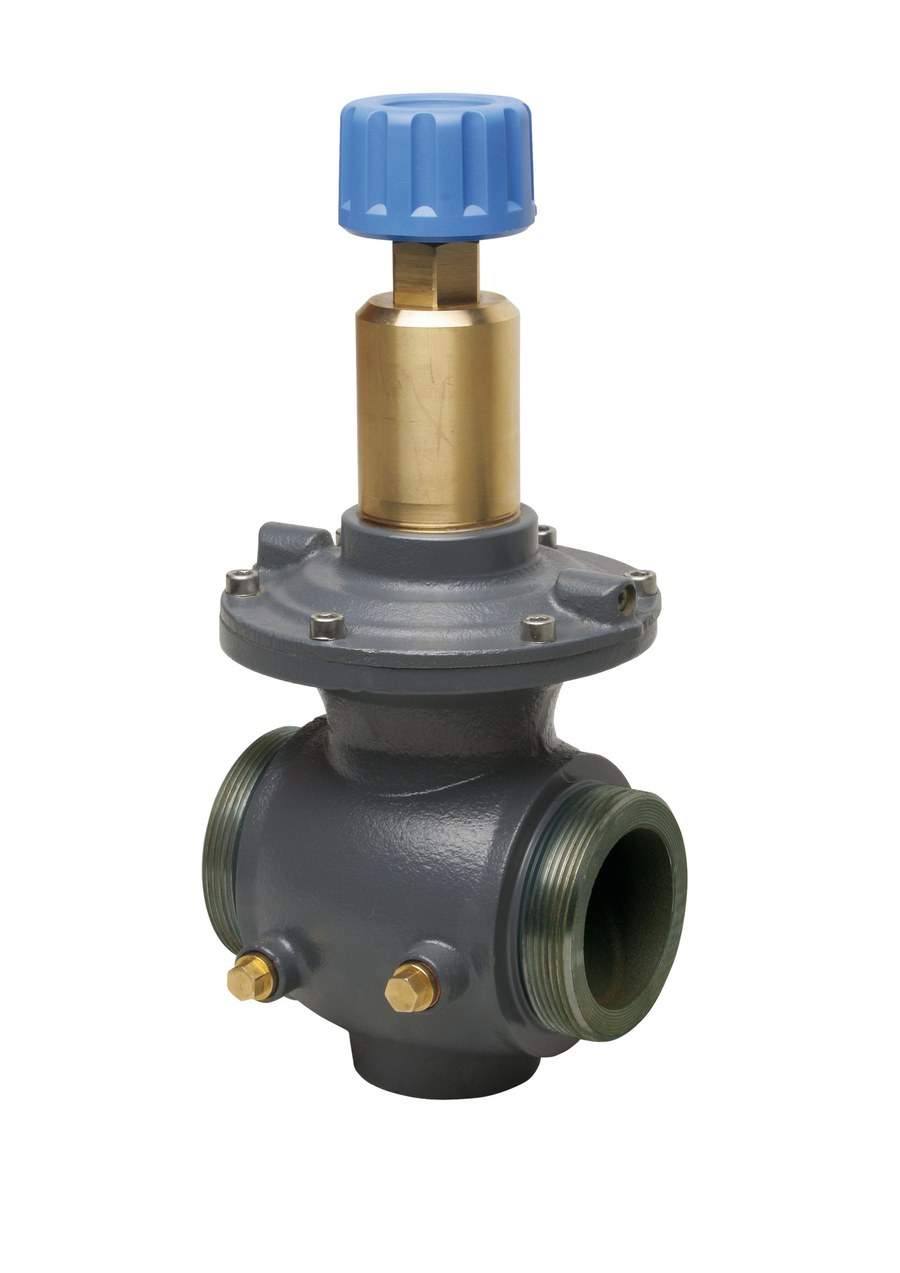

Danfoss ASV-PV 3G DN 50 differential pressure controller 60-100 kPa flanged

Danfoss ASV-PV 3G DN 50 — third-generation self-acting differential-pressure controller for automatic hydronic balancing. Installed in the return pipe of a heating or cooling circuit, it holds a constant differential pressure across the branch or terminal (paired with an ASV-BD/ASV-M/ASV-I partner valve and an impulse tube), so that two-way control-valve authority stays high and flow noise is avoided at part load. Differential-pressure setting range 60-100 kPa (factory setting ), Kvs 20 m³/h, body, Flange connection,, media temperature to, integral shut-off. OEM P/N 003Z0646. EAN 5710104523996. Technical data quoted verbatim from store.danfoss.com (code 003Z0646).

Code number

003Z0646

Type

ASV-PV 3G

Product group

Automatic balancing

Description

ASV-PV 3G, DN 50, 60-100 kPa, automatic balancing valve

Valve size

DN 50

Connection types

Flange

Kvs values [m³/h]

20 m³/h

Differential pressure setting [kPa] [Min]

60 KPa

Differential pressure setting [kPa] [Max]

100 KPa

Contains batteries

No

EU RoHS compliance

Out of scope

China RoHS compliance

Out of scope

Net weight

6.809 Kilogram

Gross weight

7.414 Kilogram

Volume

18.428 Liter

EAN

5710104523996

Classification / Approval

CE

HS Code

8481.80
