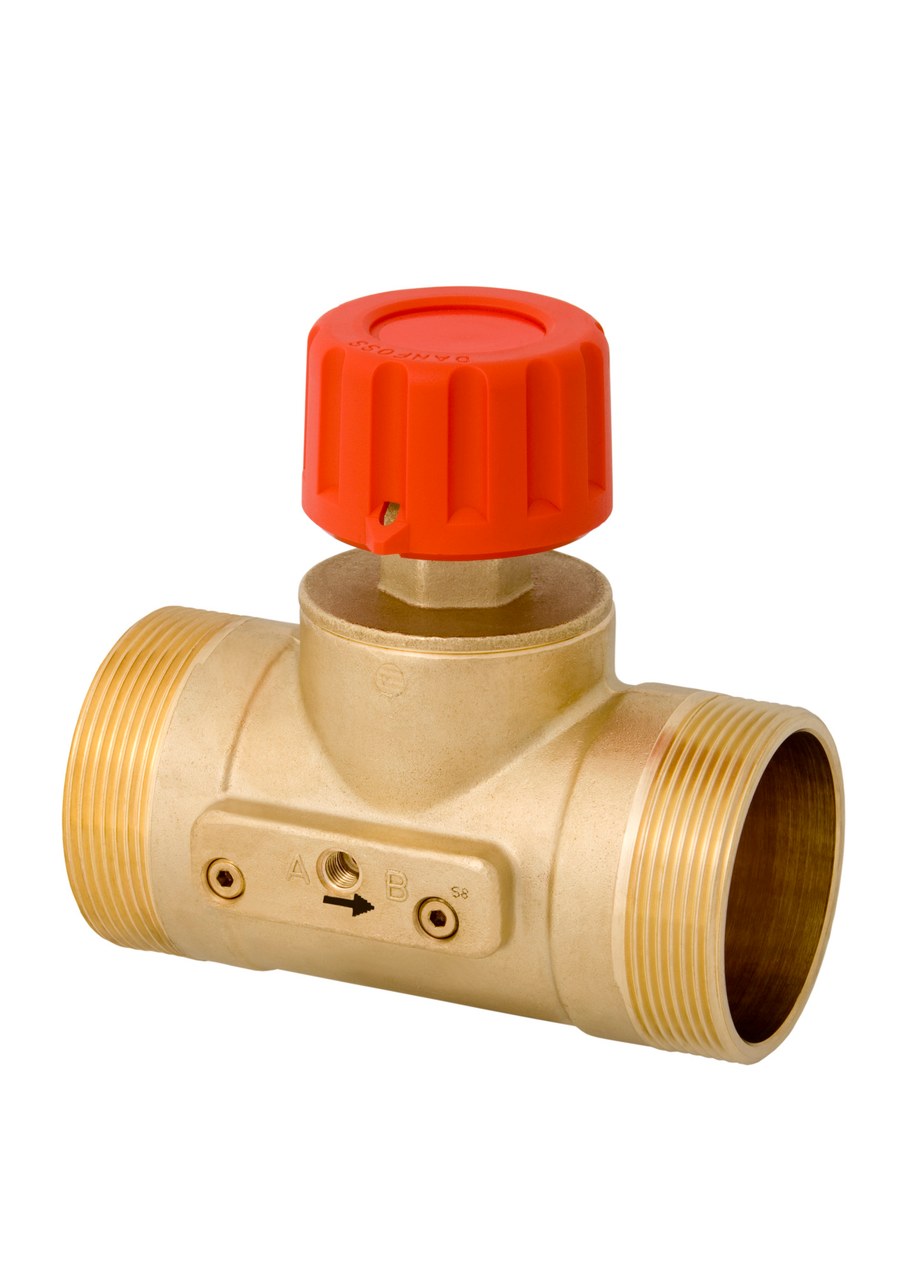

Danfoss ASV-M Manual Shut-Off / Partner Balancing Valve DN 50, External Thread, Kvs 16
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ASV-M (balancing valves), OEM order code 003L7702. Manual shut-off and partner valve for the ASV automatic-balancing family, used on the supply side to shut off and pre-set a riser or branch circuit. Manufacturer description: ASV-M DN 50, External thread, shut-off valve. connection/size DN 50, Kvs 16 m³/h, PN PN 16, media/setting temperature -20 °C to 120 °C, body material Brass. EAN 5702421561249. HS 8481.80. Specifications quoted verbatim from store.danfoss.com (code 003L7702).
Technical Specifications
- Brand
- Danfoss
- Part number
- 003L7702
- Code number
- 003L7702
- Type
- ASV-M
- Product group
- Automatic balancing
- Description
- ASV-M DN 50, External thread, shut-off valve
- Gross weight
- 1.964 Kilogram
- Net weight
- 1.964 Kilogram
- Connection types
- External Thread
- Differential pressure over the valve [kPa] [Max]
- 150 KPa
- Drain function
- No
- Flow limitation
- Yes
- Kvs values [m³/h]
- 16 m³/h
- Media temperature [°C] [Max]
- 120 °C
- Media temperature [°C] [Min]
- -20 °C
- Mounting position
- Supply pipe
- Pressure class
- PN 16
- Setting scale
- No
- Shut-off function
- Yes
- Valve body material
- Brass
- Valve size
- DN 50
- EAN
- 5702421561249
- HS code
- 8481.80 (taps, cocks, valves for pipes)
Standards & Compliance
- Size / Series
- DN 50
- Material
- Brass
- Pressure Rating
- PN PN 16
- Temperature Range
- -20 °C to 120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Genuine Danfoss part, order code 003L7702 (Automatic balancing). Confirm the code, size (DN 50) and matching valve/actuator family against your Danfoss datasheet before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss AVQM-WE motorized flow controller (PICV), PN 25, DN 15, flow range 0.07–1.6 m³/h, Kvs 2.5 m³/h, External thread G 3/4 A (ISO 228/1), via tailpieces
003H7080
Danfoss
Danfoss AVQM-WE motorized flow controller (PICV), PN 25, DN 15, flow range 0.7–2.4 m³/h, Kvs 4 m³/h, External thread G 3/4 A (ISO 228/1), via tailpieces
003H7081
Danfoss
Danfoss AVQM-WE motorized flow controller (PICV), PN 25, DN 20, flow range 0.16–3.5 m³/h, Kvs 6.3 m³/h, External thread G 1 A (ISO 228/1), via tailpieces
003H7082
Danfoss
Danfoss AVQM-WE motorized flow controller (PICV), PN 25, DN 25, flow range 0.2–4.5 m³/h, Kvs 8 m³/h, External thread G 1 1/4 A (ISO 228/1), via tailpieces
003H7083
Danfoss

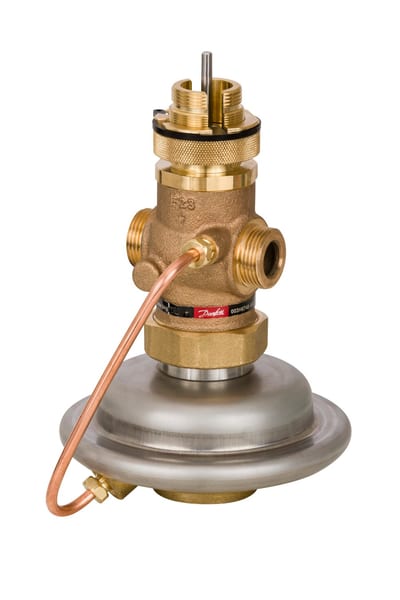

Danfoss AVQMT-WE motorized flow and temperature controller (PICV), PN 25, DN 15, flow range 0.07–1.6 m³/h, Kvs 2.5 m³/h, External thread G 3/4 A (ISO 228/1), via tailpieces
