Danfoss AF-range actuator diaphragm — 250 cm² FKM, for thermal oil
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AF-range spare actuator diaphragm (OEM designation "Diaphragm Size 250 FKM for oil, AF8"), actuator size 250 cm², material FKM, for Termo oil service. The diaphragm is the rolling-diaphragm sensing element inside a Danfoss self-acting AF-range controller actuator; this FKM diaphragm is the variant rated for thermal-oil media. Supplied as a spare part matched to the 250 cm² actuator size. OEM P/N 003G1502. Technical data quoted verbatim from store.danfoss.com (code 003G1502). Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Code number
- 003G1502
- Type
- Diaphragms
- Product group
- Accessories - SAC
- Gross weight
- 0.2 Kilogram
- Net weight
- 0.2 Kilogram
- Volume
- 3.465 Liter
- Actuator size [cm²]
- 250 cm²
- Contains batteries
- No
- Description
- Diaphragm Size 250 FKM for oil, AF8
- Material
- FKM
- Permissible media
- Termo oil
- EAN
- 5702421818381
- HS code
- 8481.90
Standards & Compliance
- Size / Series
- Diaphragms
- Material
- FKM
- HS Code
- 8481.90
Compatibility & Fitment
This diaphragm is a spare for Danfoss AF-range self-acting controller actuators of the 250 cm² size, FKM material for thermal-oil (Termo oil) service. Match the actuator size (250 cm²) and the diaphragm material against the AF-range service documentation before ordering — FKM/thermal-oil and standard EPDM diaphragms are not interchangeable.
Product Documentation
More from Danfoss
Danfoss
Danfoss impulse-tube compression fitting Ø6 — G 1/4 internal thread, Brass CW602, with locking screw
003G1599
Danfoss
Danfoss VM 2 external-thread tailpiece set DN 40 PN 25 (pair, 065B2004)
Danfoss
Danfoss VM 2 external-thread tailpiece set DN 50 PN 25 (pair, 065B2005)
Danfoss
Danfoss VM 2 weld-on tailpiece set DN 40 PN 25 (pair, 065B2006)
Danfoss

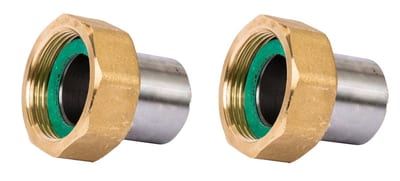

Danfoss VM 2 weld-on tailpiece set DN 50 PN 25 (pair, 065B2007)
Danfoss

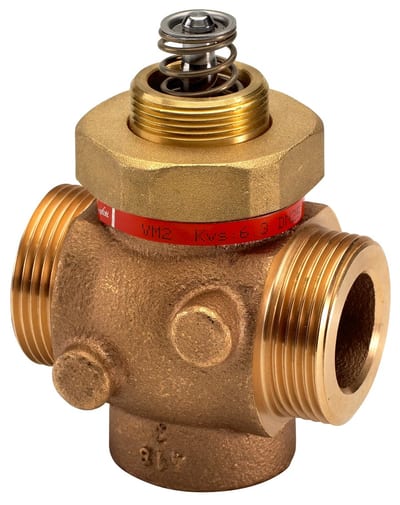

Danfoss VM 2 seated external-thread 2-Way control valve body DN 15 PN 25 Kvs 0.25 m³/h
