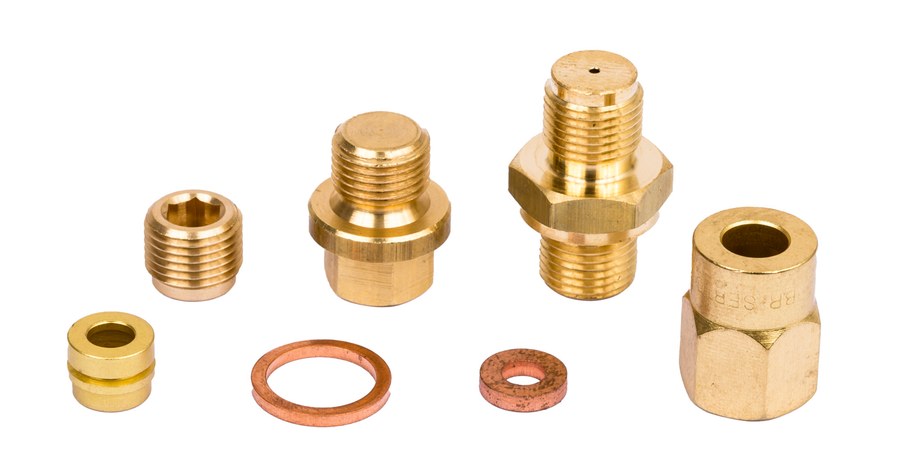

Danfoss impulse-tube compression fitting Ø6 — G 1/4 internal thread, Brass CW602, with locking screw
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss compression fitting for impulse tubes (OEM designation "Compression fitting fi6 for internal thread with locking screw"). Connects a Ø6 mm impulse tube to a G 1/4 internal thread with a locking screw, forming the pressure-tight union between the impulse tubing and the pressure tapping / actuator on a Danfoss self-acting AF-range controller. Material Brass CW602; 25 bar nominal pressure; suits valve sizes DN 15–50. OEM P/N 003G1599. EAN 5702421814185. Technical data quoted verbatim from store.danfoss.com (code 003G1599).
Technical Specifications
- Code number
- 003G1599
- Type
- Compression fittings for impulse tubes
- Product group
- Accessories - SAC
- Gross weight
- 0.114 Kilogram
- Net weight
- 0.114 Kilogram
- Volume
- 1.379 Liter
- Connection size
- G 1/4
- Contains batteries
- No
- Description
- Compression fitting fi6 for internal thread with locking screw
- Material
- Brass CW602
- Pressure nominal [bar]
- 25 bar
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Suitable for valve of diameter [mm] [Max]
- 50 mm
- Suitable for valve of diameter [mm] [Min]
- 15 mm
- EAN
- 5702421814185
- HS code
- 8481.90
Standards & Compliance
- Size / Series
- Compression fittings
- Material
- Brass CW602
- Thread Standard
- G 1/4
- Pressure Rating
- PN 25
- HS Code
- 8481.90
Compatibility & Fitment
The compression fitting terminates a Ø6 mm impulse tube into a G 1/4 internal thread on a Danfoss AF-range self-acting controller for valve sizes DN 15–50. Order with the matching impulse tube set (003G13xx/14xx); confirm tube diameter and thread against the AF-range data sheet.
