Product Description

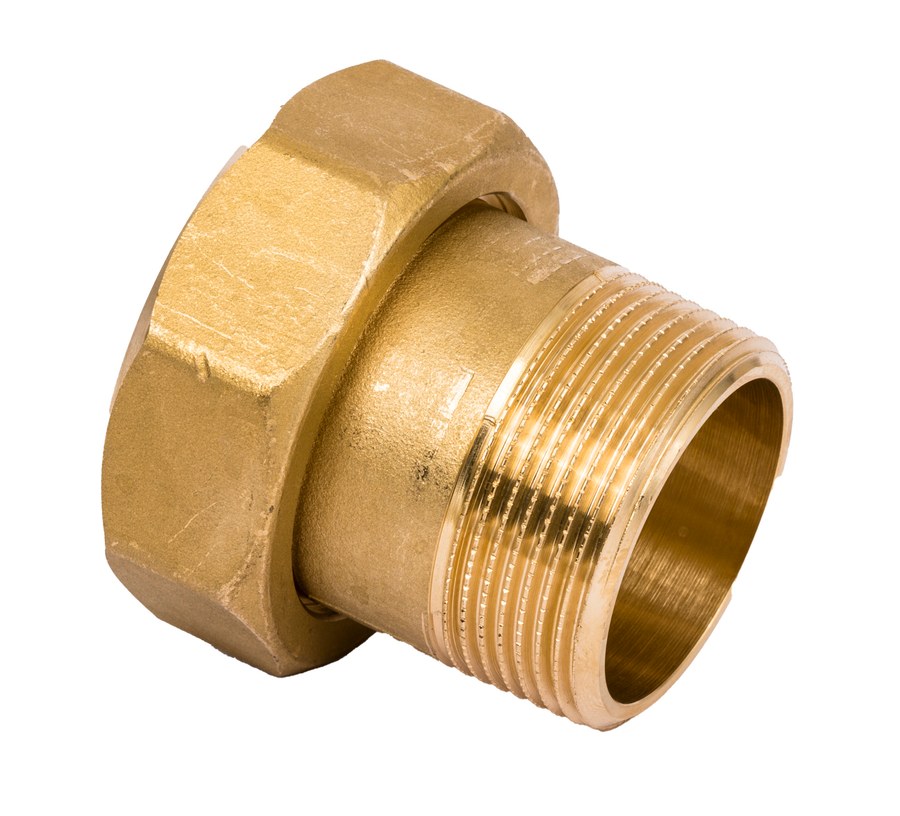

Danfoss external-thread connection tailpiece set for the VM 2 2-way seated control-valve body (OEM designation "TAILPIECE WITH EXT. THR. VM2 DN40"). Supplied as a set of 2 tailpieces that screw onto the VM 2 body and provide the pipe connection via R 1 1/2 external thread. For valve size DN 40; PN 25; material Brass CW617N. Sold per pack of 2. OEM P/N 065B2004. EAN 5702425090738. Technical data quoted verbatim from store.danfoss.com (code 065B2004).
Technical Specifications
- Code number
- 065B2004
- Type
- Thread tailpieces
- Product group
- Tailpieces
- Gross weight
- 0.814 Kilogram
- Net weight
- 0.755 Kilogram
- Volume
- 1.568 Liter
- Connection size
- R 1 1/2
- Connection types
- External Thread
- Description
- TAILPIECE WITH EXT. THR. VM2 DN40
- Diameter [mm]
- 40 mm
- For valve size
- DN 40
- Material
- Brass CW617N
- Packing format
- Single pack
- Packing quantity
- 2
- Pressure class
- PN 25
- Pressure nominal [bar]
- 25 bar
- EAN
- 5702425090738
- HS code
- 8481.90
- EU RoHS compliance
- Out of scope
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
Standards & Compliance
- Size / Series
- Tailpieces
- Material
- Brass CW617N
- Thread Standard
- R 1 1/2
- Pressure Rating
- PN 25
- HS Code
- 8481.90
Compatibility & Fitment
These tailpieces connect a VM 2 DN 40 PN 25 control-valve body (065B20xx) to the pipework via R 1 1/2. Supplied as a pair. Match the VM 2 valve size (DN 40) and PN before ordering; threaded and the alternative connection style are not interchangeable.
Product Documentation
More from Danfoss
Danfoss
Danfoss VM 2 external-thread tailpiece set DN 50 PN 25 (pair, 065B2005)
Danfoss
Danfoss VM 2 weld-on tailpiece set DN 40 PN 25 (pair, 065B2006)
Danfoss
Danfoss VM 2 weld-on tailpiece set DN 50 PN 25 (pair, 065B2007)
Danfoss
Danfoss VM 2 seated external-thread 2-Way control valve body DN 15 PN 25 Kvs 0.25 m³/h
065B2010
Danfoss
Danfoss VM 2 seated external-thread 2-Way control valve body DN 15 PN 25 Kvs 0.4 m³/h
065B2011
Danfoss
Danfoss VM 2 seated external-thread 2-Way control valve body DN 15 PN 25 Kvs 0.63 m³/h
065B2012
Danfoss
Danfoss VM 2 seated external-thread 2-Way control valve body DN 15 PN 25 Kvs 1 m³/h
065B2013
Danfoss

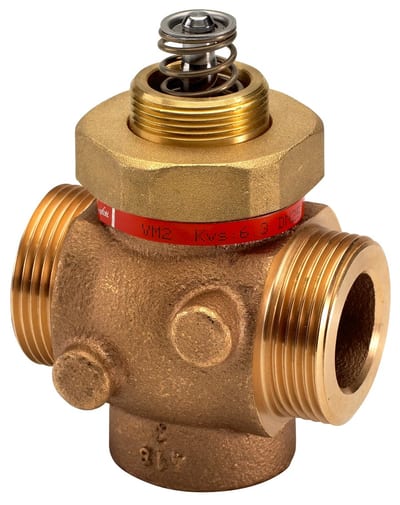

Danfoss VM 2 seated external-thread 2-Way control valve body DN 15 PN 25 Kvs 1.6 m³/h
