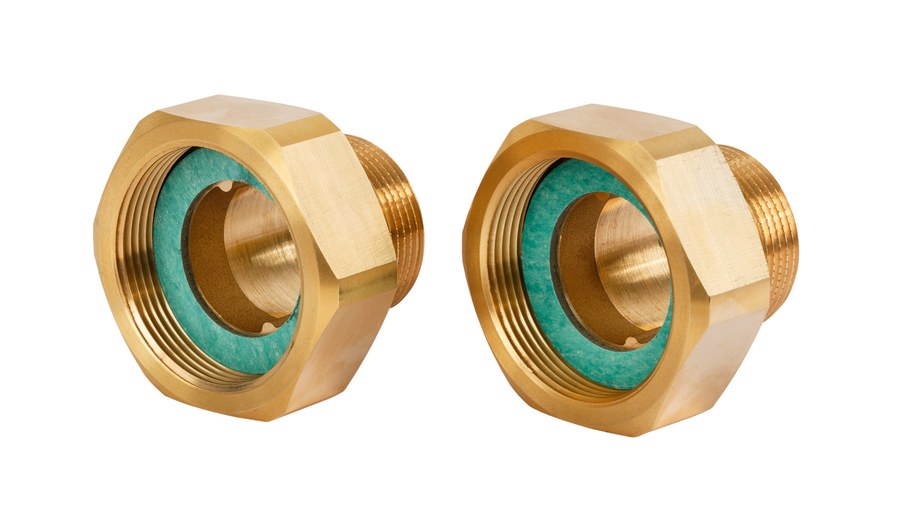

Product Description
Danfoss external-thread connection tailpiece set for the VM 2 2-way seated control-valve body (OEM designation "TAILPIECE WITH EXT. THR. VM2 DN50"). Supplied as a set of 2 tailpieces that screw onto the VM 2 body and provide the pipe connection via R 2 external thread. For valve size DN 50; PN 25; material Brass CW617N. Sold per pack of 2. OEM P/N 065B2005. EAN 5702425090769. Technical data quoted verbatim from store.danfoss.com (code 065B2005).
Technical Specifications
- Code number
- 065B2005
- Type
- Thread tailpieces
- Product group
- Tailpieces
- Gross weight
- 1.514 Kilogram
- Net weight
- 1.514 Kilogram
- Volume
- 1.568 Liter
- Connection size
- R 2
- Connection types
- External Thread
- Description
- TAILPIECE WITH EXT. THR. VM2 DN50
- Diameter [mm]
- 50 mm
- For valve size
- DN 50
- Material
- Brass CW617N
- Packing format
- Single pack
- Packing quantity
- 2
- Pressure class
- PN 25
- Pressure nominal [bar]
- 25 bar
- EAN
- 5702425090769
- HS code
- 8481.90
- EU RoHS compliance
- Out of scope
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
Standards & Compliance
- Size / Series
- Tailpieces
- Material
- Brass CW617N
- Thread Standard
- R 2
- Pressure Rating
- PN 25
- HS Code
- 8481.90
Compatibility & Fitment
These tailpieces connect a VM 2 DN 50 PN 25 control-valve body (065B20xx) to the pipework via R 2. Supplied as a pair. Match the VM 2 valve size (DN 50) and PN before ordering; threaded and the alternative connection style are not interchangeable.
