Product Description

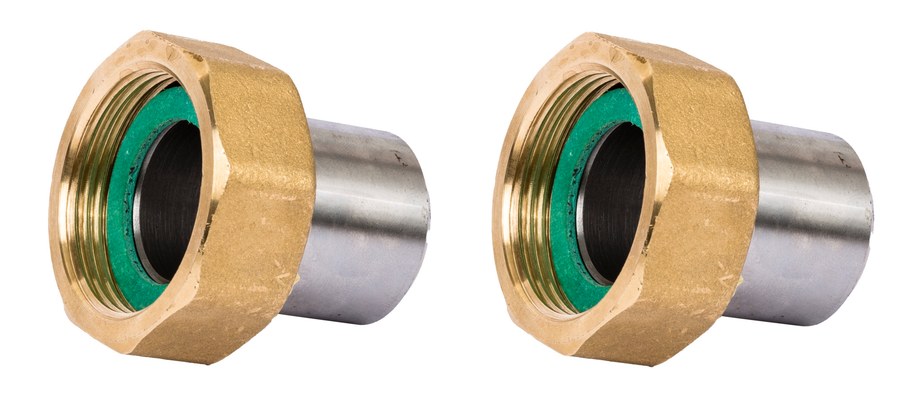

Danfoss weld-on connection tailpiece set for the VM 2 2-way seated control-valve body (OEM designation "WELD-ON TAILPIECE VM2 DN40"). Supplied as a set of 2 tailpieces that screw onto the VM 2 body and provide the pipe connection by welding into the line. For valve size DN 40; PN 25. Sold per pack of 2. OEM P/N 065B2006. EAN 5702425090790. Technical data quoted verbatim from store.danfoss.com (code 065B2006).
Technical Specifications
- Code number
- 065B2006
- Type
- Weld-on tailpieces
- Product group
- Tailpieces
- Gross weight
- 0.866 Kilogram
- Net weight
- 0.862 Kilogram
- Volume
- 1.568 Liter
- Connection size
- G 2
- Connection types
- Weld-on
- Description
- WELD-ON TAILPIECE VM2 DN40
- Diameter [mm]
- 40 mm
- For valve size
- DN 40
- Packing format
- Single pack
- Packing quantity
- 2
- Pressure class
- PN 25
- Pressure nominal [bar]
- 25 bar
- EAN
- 5702425090790
- HS code
- 8481.90
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
Standards & Compliance
- Size / Series
- Tailpieces
- Pressure Rating
- PN 25
- HS Code
- 8481.90
Compatibility & Fitment
These tailpieces connect a VM 2 DN 40 PN 25 control-valve body (065B20xx) to the pipework by welding. Supplied as a pair. Match the VM 2 valve size (DN 40) and PN before ordering; weld-on and the alternative connection style are not interchangeable.
