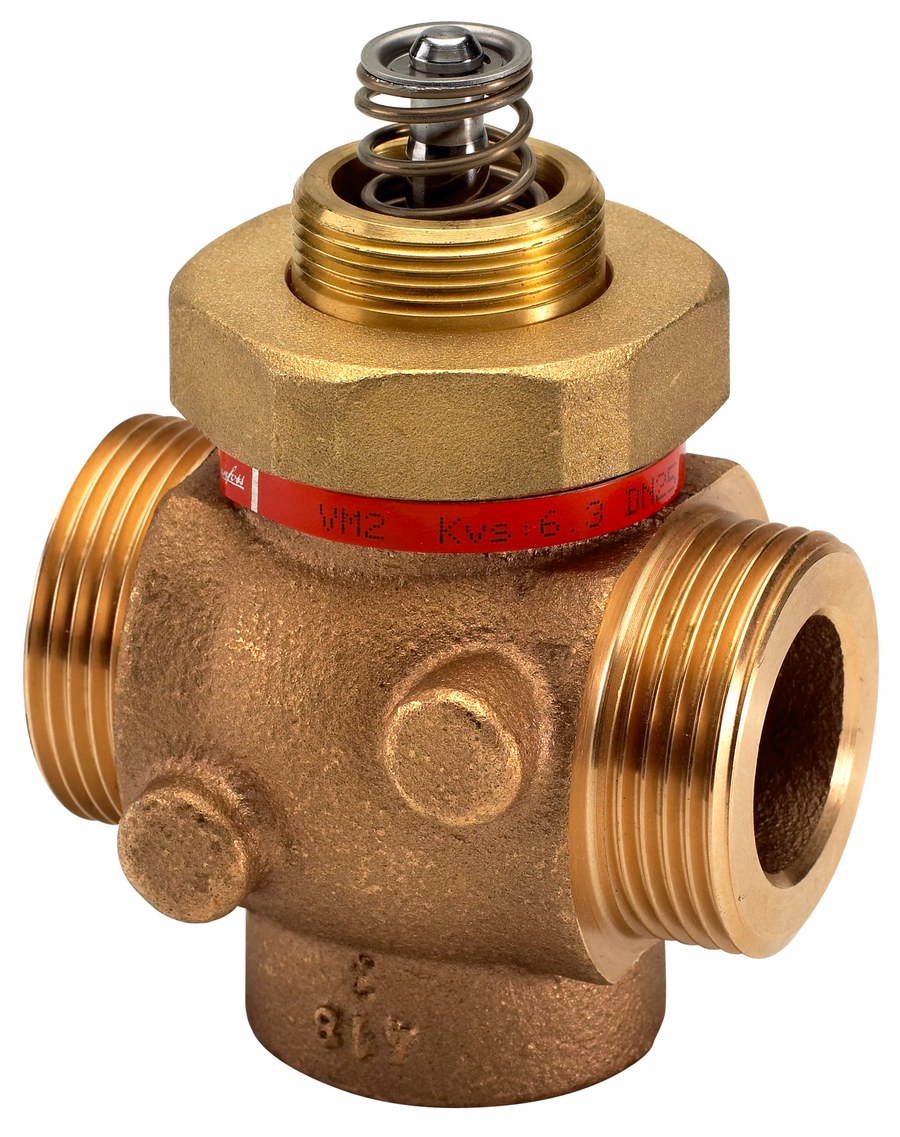

Danfoss VM 2 seated external-thread 2-Way control valve body DN 15 PN 25 Kvs 1.6 m³/h

Danfoss VM 2 2-way seated control-valve body (OEM designation "VM 2 PN25 15/1,6 2-way seated ext. A external-thread globe-type valve body for use with a Danfoss AMV/AME electric linear actuator on District heating/cooling circulation water heating and district-heating circuits — the actuator is ordered separately and drives the 5 mm stroke spindle. Valve size DN 15; PN 25; Kvs 1.6 m³/h m³/h; External Thread connection (G 3/4 A); Split flow characteristic; control ratio 50:1; maximum differential pressure 16 bar; spindle Normally open. Body Red bronze, mat. 2.1096.1 (RG5); cone Stainless steel; seat Stainless steel; stuffing-box seal EPDM; seat leakage ≤ 0.05 % Kvs. Media District heating/cooling circulation water (Glycolic water up to 30%), 2 °C to 150 °C. OEM P/N 065B2014. Technical data quoted verbatim from store.danfoss.com (code 065B2014). Deployed in process, utility and marine piping loops for on-off shutoff, control, safety relief or diversion service. No. 2.1096.1 (RG5); Standard size: VM 2; Thread: G 3/4 A; Pressure rating: PN 25; Temperature range: 2 °C to 150 °C; HS code: 8481.80.

Code number

065B2014

Type

VM 2

Product group

Motorized control valves

Gross weight

0.938 Kilogram

Net weight

0.857 Kilogram

Volume

1.13 Liter

Application

District Heating

Application alternative VSP

Heating

Connection size

G 3/4 A

Connection types

External Thread

Control ratio

50:1

Description

VM 2 PN25 15/1,6 2-way seated ext. thr

Diameter [mm]

15 mm

Differential pressure range [bar] [Max]

16 bar

Flow characteristic

Split

Function

Pressure relief

Kvs values [m³/h]

1.6 m³/h

Leakage through port max. [% Kvs]

0.05

Media pH [Max]

10

Media pH [Min]

7

Media temperature [°C] [Max]

150 °C

Media temperature [°C] [Min]

2 °C

Medium alternative

Glycolic water up to 30%

Number of ports

2

Permissible media

District heating/cooling circulation water

PN alternative VSP

16

Pressure class

PN 25

Pressure nominal [bar]

25 bar

Spindle position

Normally open

Stroke [mm]

5 mm

Stuffing box sealing material

EPDM

Valve body material

Red bronze, mat. No. 2.1096.1 (RG5)

Valve cone material

Stainless steel

Valve seat material

Stainless steel

Valve size

DN 15

Valve stem material

Stainless steel

EAN

5702421508909

HS code

8481.80

Size / Series

VM 2

Material

Red bronze, mat. No. 2.1096.1 (RG5)

Thread Standard

G 3/4 A

Pressure Rating

PN 25

Temperature Range

2 °C to 150 °C

HS Code

8481.80
