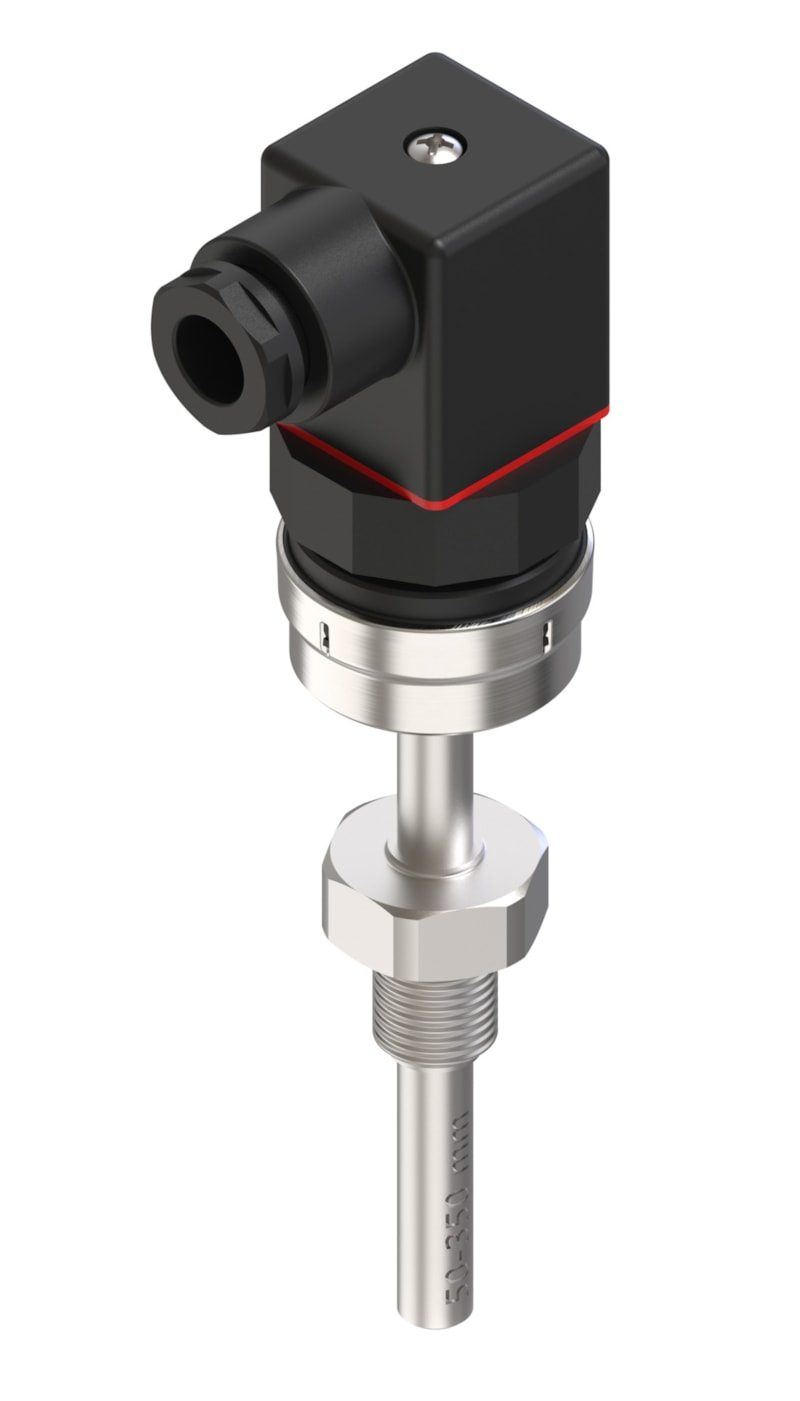

Danfoss MBT 5560 temperature transmitter, 250 mm insertion, G 1/4
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5560 insertion temperature transmitter, code 084Z4210 (type designation MBT 5560-0001-0250-10-106). Compact sensor with an integrated 2-wire, loop-powered transmitter delivering a factory-scaled 4-20 mA output for refrigeration, HVAC and machinery temperature control. Insertion length 250 mm. Process connection G 1/4 (ISO 228-1-A), Stainless steel. Transmitter setting range 0 to 60 °C. Output 4-20 mA (2-wire, loop-powered). Electrical connection Angular connector, Pg 9. Enclosure IP65. Net weight 0.162 kg / gross 0.21 kg. Supplied multi pack, 9 pc. CE marked. EAN 5702428001656. OEM P/N 084Z4210.
Technical Specifications
- Type
- Danfoss MBT 5560 — Temperature transmitter
- Type designation
- MBT 5560-0001-0250-10-106
- Code number
- 084Z4210
- Product group
- Sensors
- Element tolerance
- < ± 1% FS
- Insertion length
- 250 mm
- Process connection
- G 1/4 (ISO 228-1-A)
- Process connection material
- Stainless steel
- Transmitter setting range
- 0 to 60 °C
- Output signal
- 4-20 mA (2-wire, loop-powered)
- Electrical connection
- Angular connector, Pg 9
- Enclosure rating
- IP65
- Packing format
- Multi pack
- Quantity per pack
- 9 pc
- Net weight
- 0.162 kg
- Gross weight
- 0.21 kg
- Approvals
- CE
- EU RoHS
- Yes with exemptions
- Lifecycle status
- Current
- EAN
- 5702428001656
Standards & Compliance
- Size / Series
- 250 mm insertion
- Material
- Stainless steel protection tube
- Thread Standard
- ISO 228-1-A
- Temperature Range
- 0 to 60 °C
- IP Rating
- IP65
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
MBT built-in transmitter (4-20 mA, 2-wire). Confirm the 0 to 60 °C output scaling matches the receiving controller/PLC, a 10-32 V DC loop supply is available, and the insertion length (250 mm) / process thread (G 1/4 (ISO 228-1-A)) suit the mounting boss.
